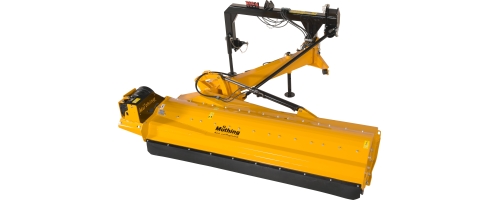

Parts for MU-L / S 200-250 (2025)

0.2/20 parts according to the drawings, suitable for MU-L/S 200-250 - Series 2025

In this category you will find the exploded drawings for the current model series.
If you need spare parts for an older machine, please search for the PDF spare parts lists in the download directory.
Downloads MÜTHING Spare Parts Lists

Exploded view 01: Housing (P_LS_ET_25_WEL)

Exploded view 01: Housing Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
01
96202501

Exploded view 02: Protective rubber (P_LS_ET_25_WEL)

Exploded view 02: Protective rubber Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
02
96202502

Exploded view 03: Short chopping bar (P_LS_ET_25_WEL)

Exploded view 03: Short chopping bar Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
03
96202503

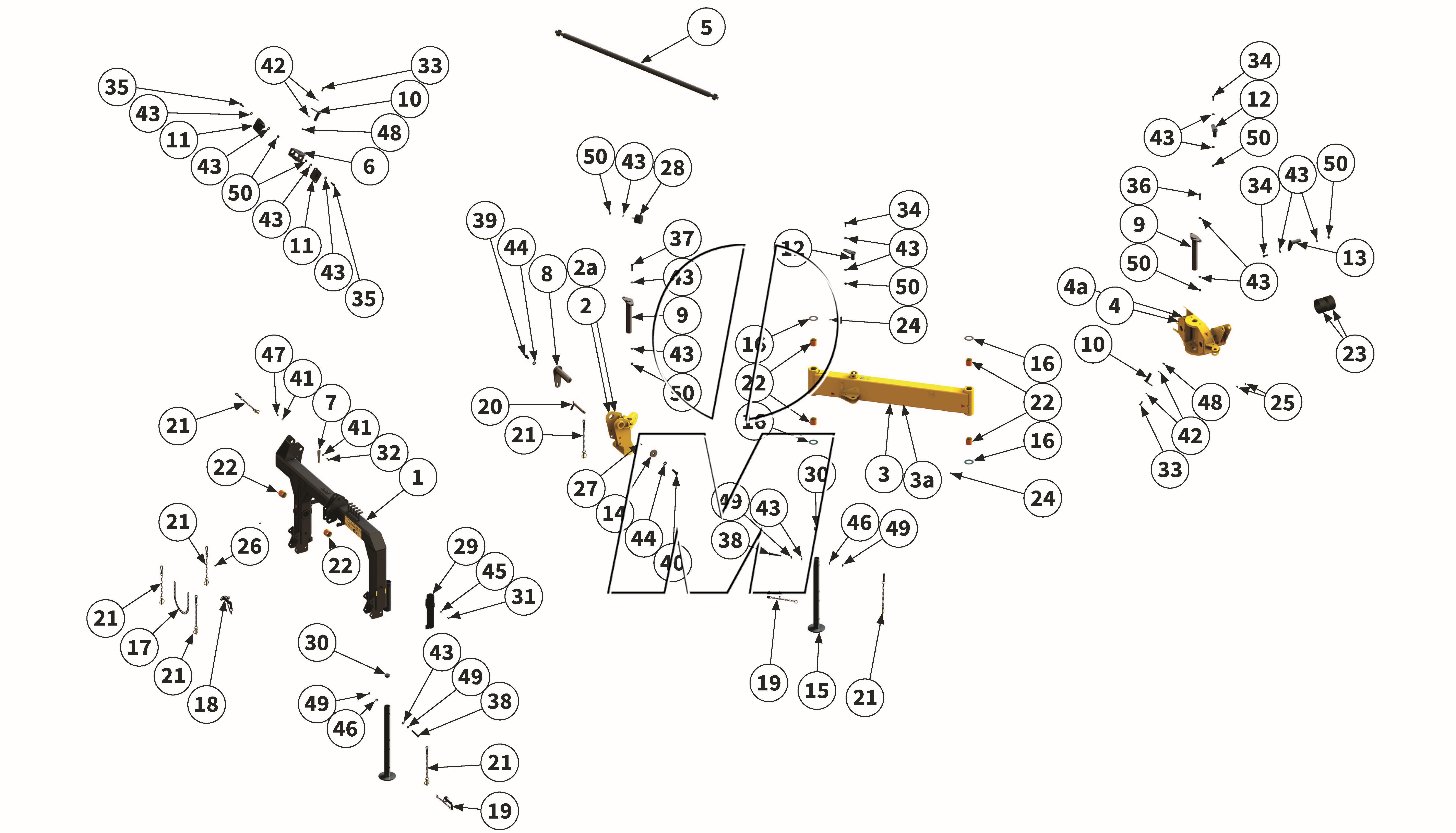

Exploded view 04: Headstock (P_LS_ET_25_WEL)

Exploded view 04: Headstock Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
04
96202504

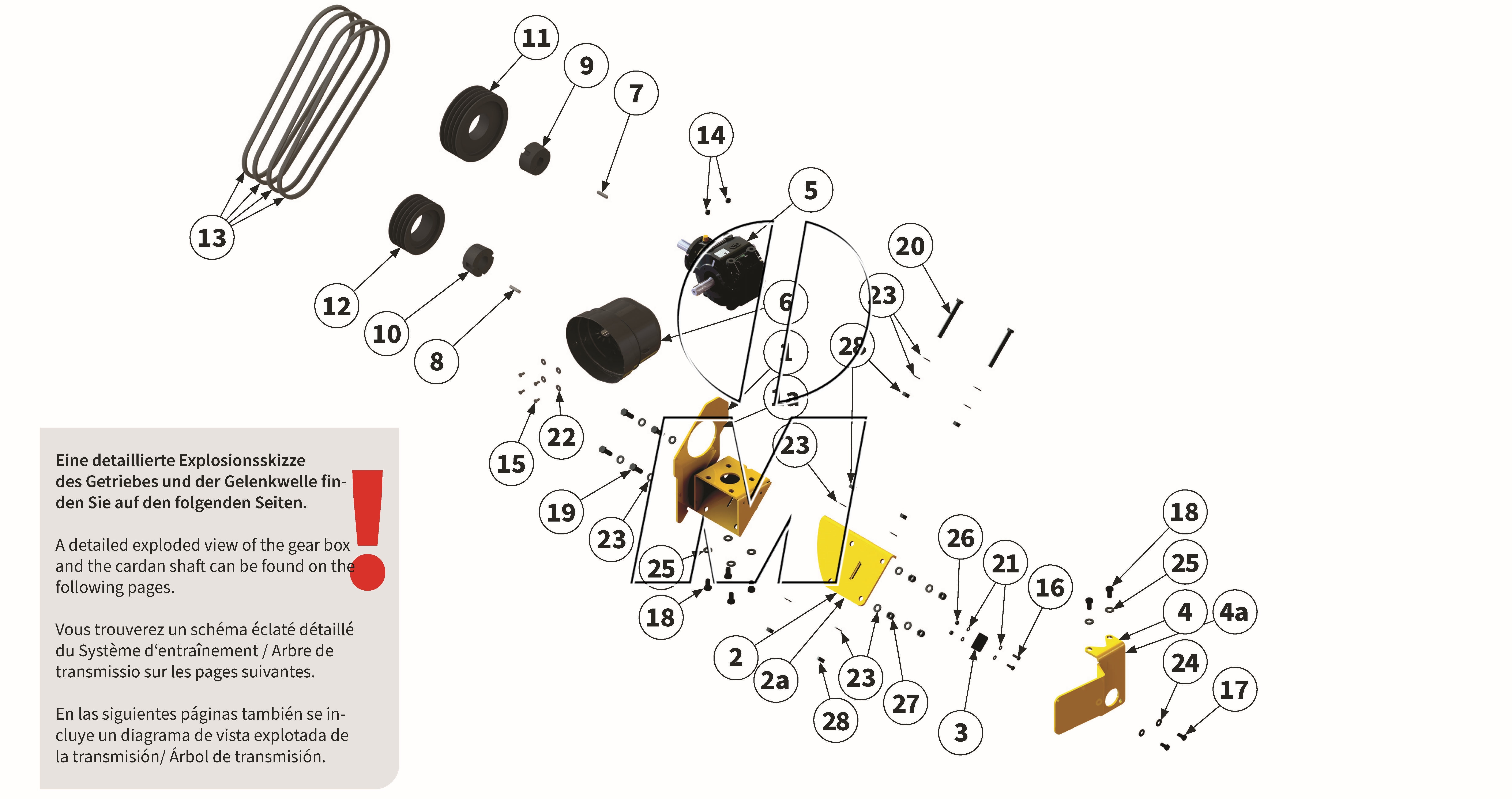

Exploded view 05: Drive and gear box (P_LS_ET_25_WEL)

Exploded view 05: Drive and gear box Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
05
96202505

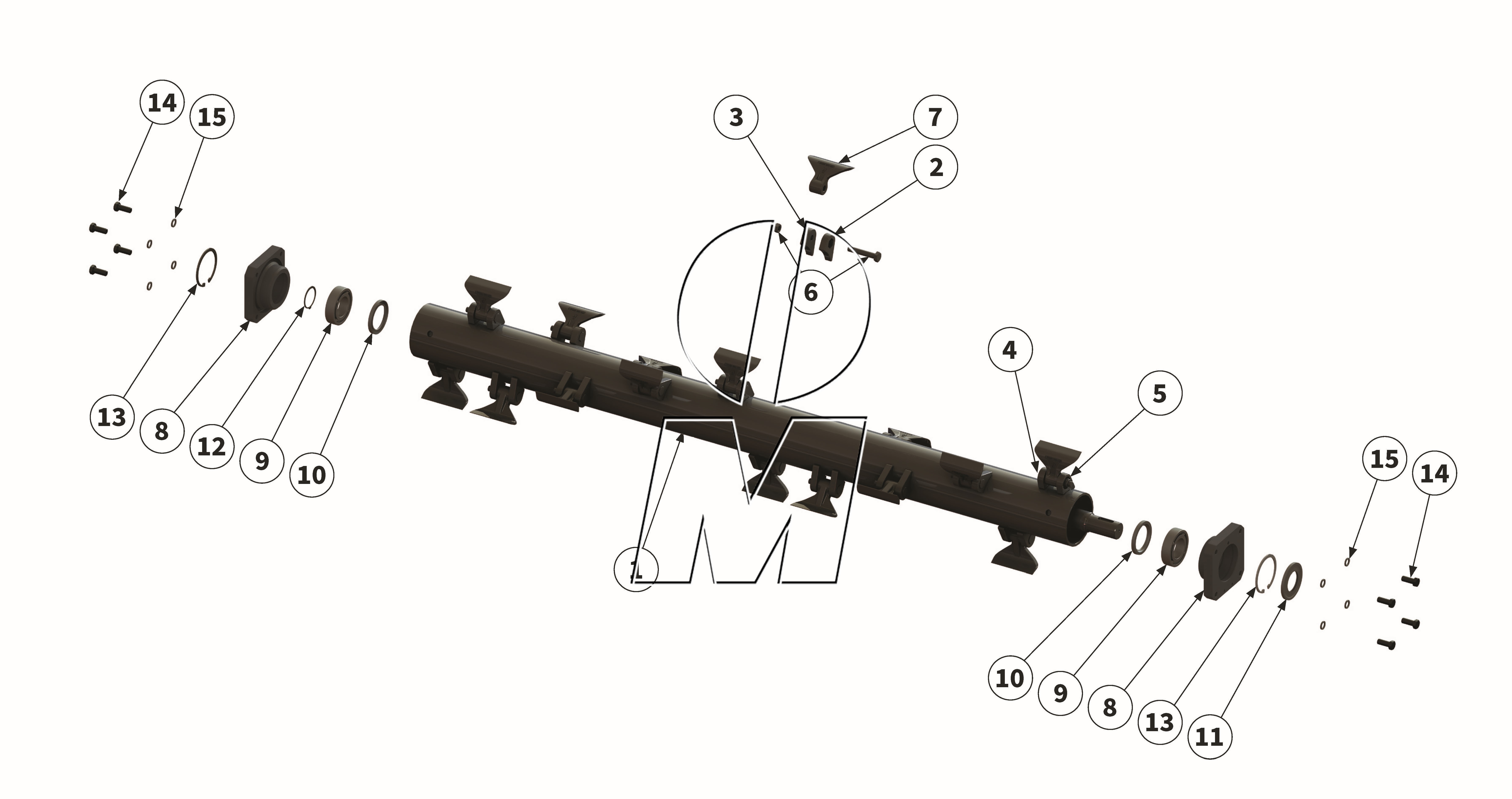

Exploded view 06: Hammer rotor (P_LS_ET_25_WEL)

Exploded view 06: Hammer rotor Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
06
96202506

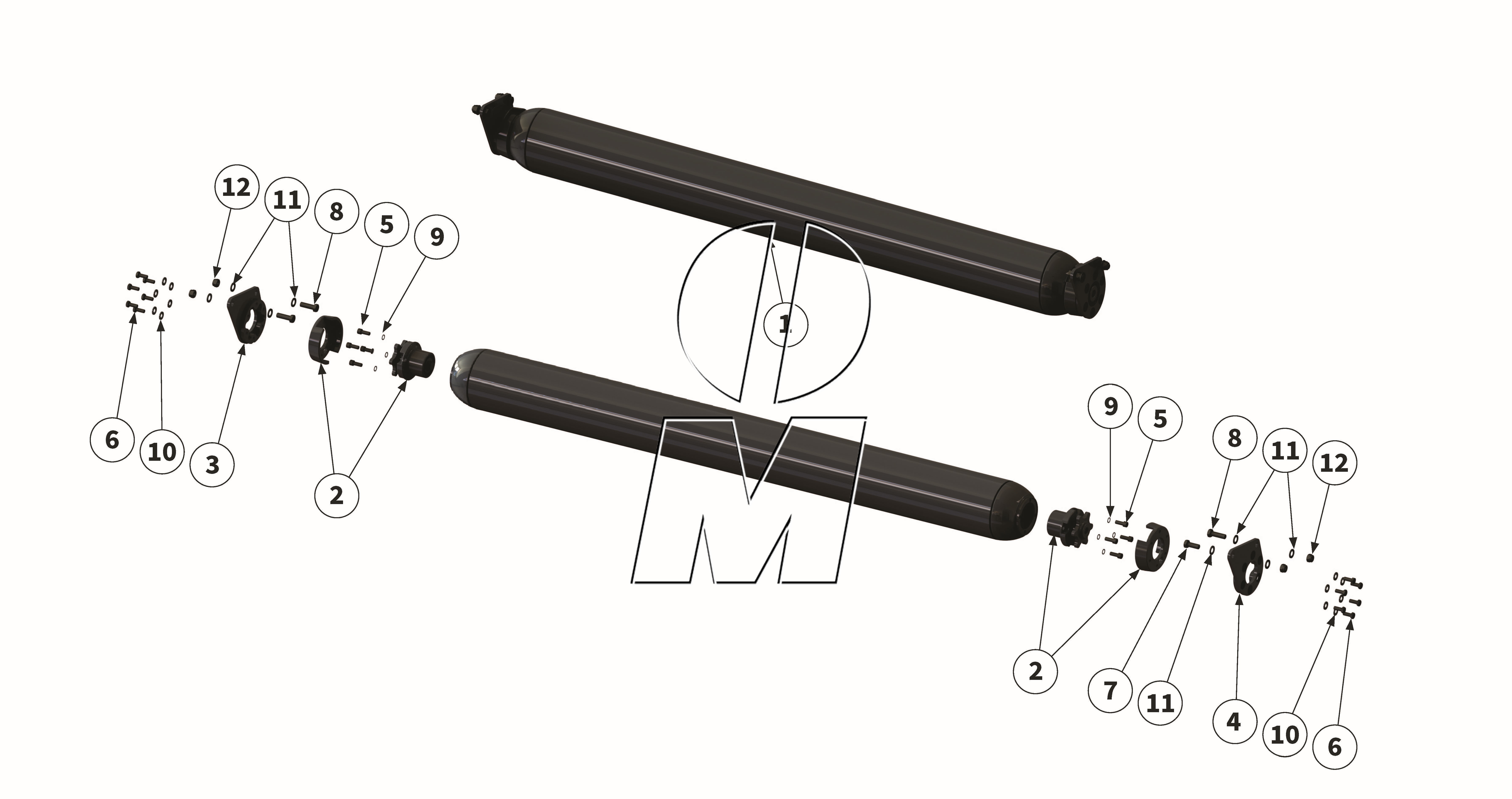

Exploded view 07: Support roller (P_LS_ET_25_WEL)

Exploded view 07: Support roller Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
07
96202507

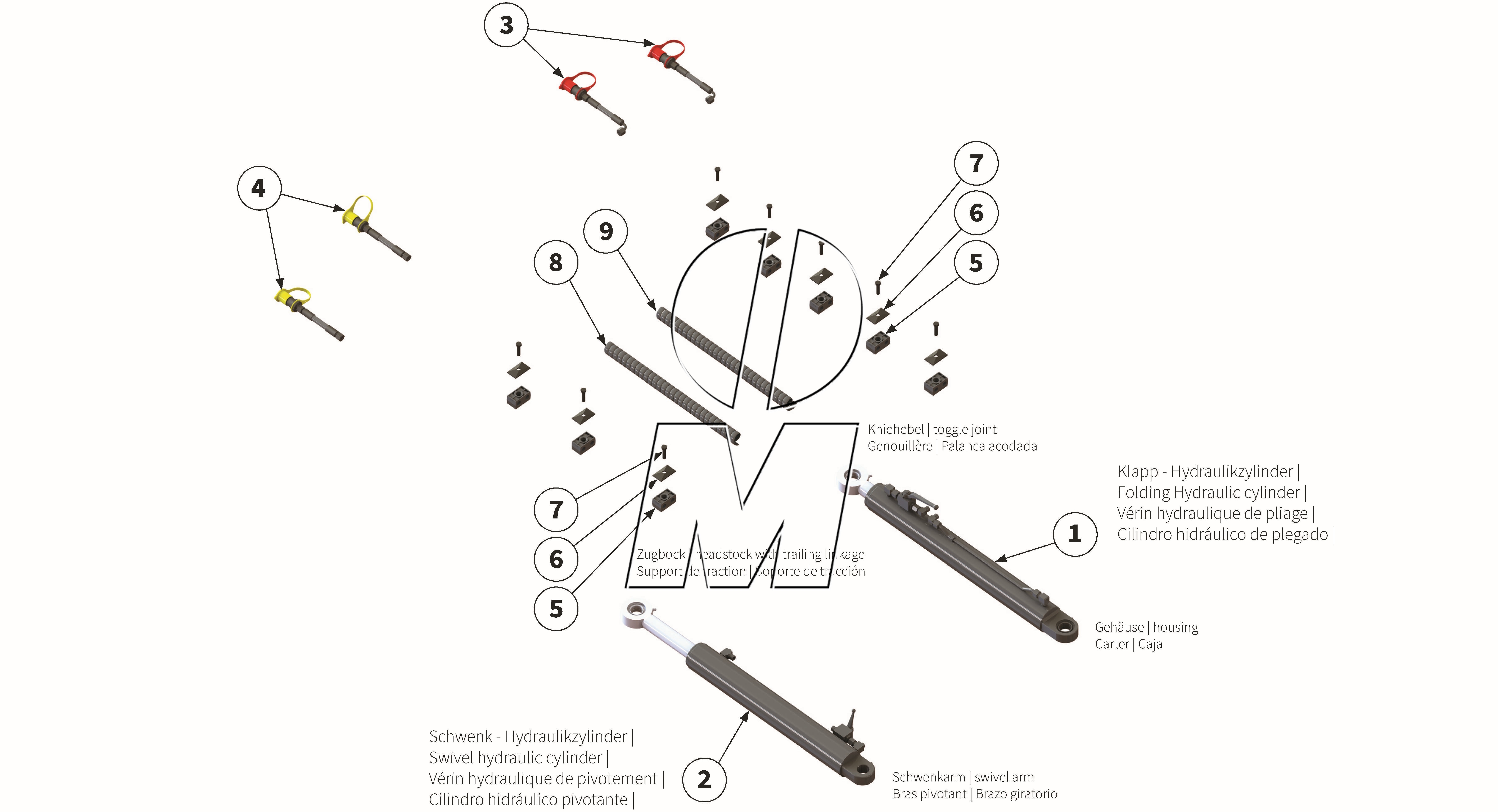

Exploded view 08: Hydraulic (P_LS_ET_25_WEL)

Exploded view 08: Hydraulic Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
08
96202508

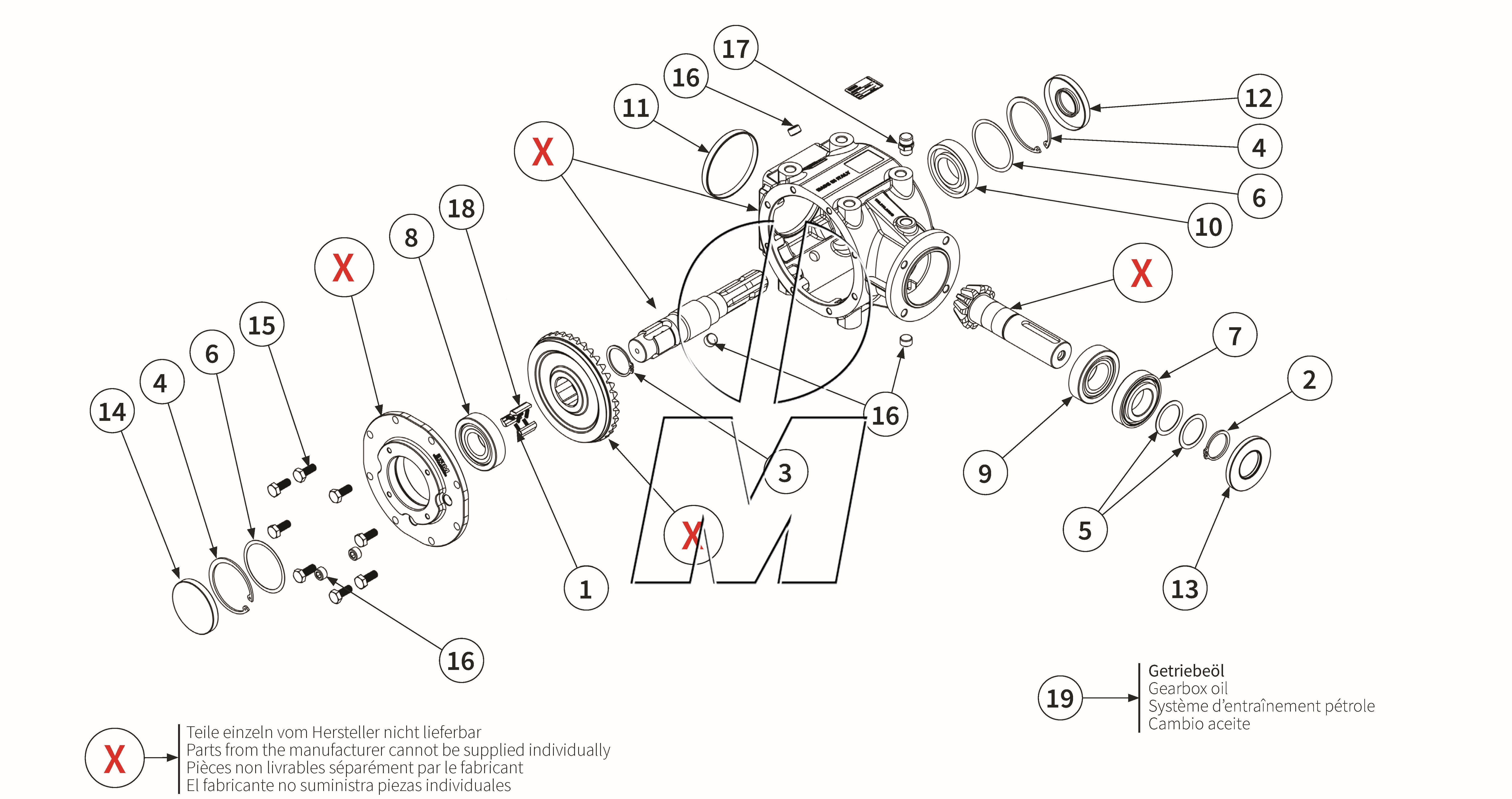

Exploded view 09: Gear box (P_LS_ET_25_WEL)

Exploded view 09: Gear box Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
09
96202509

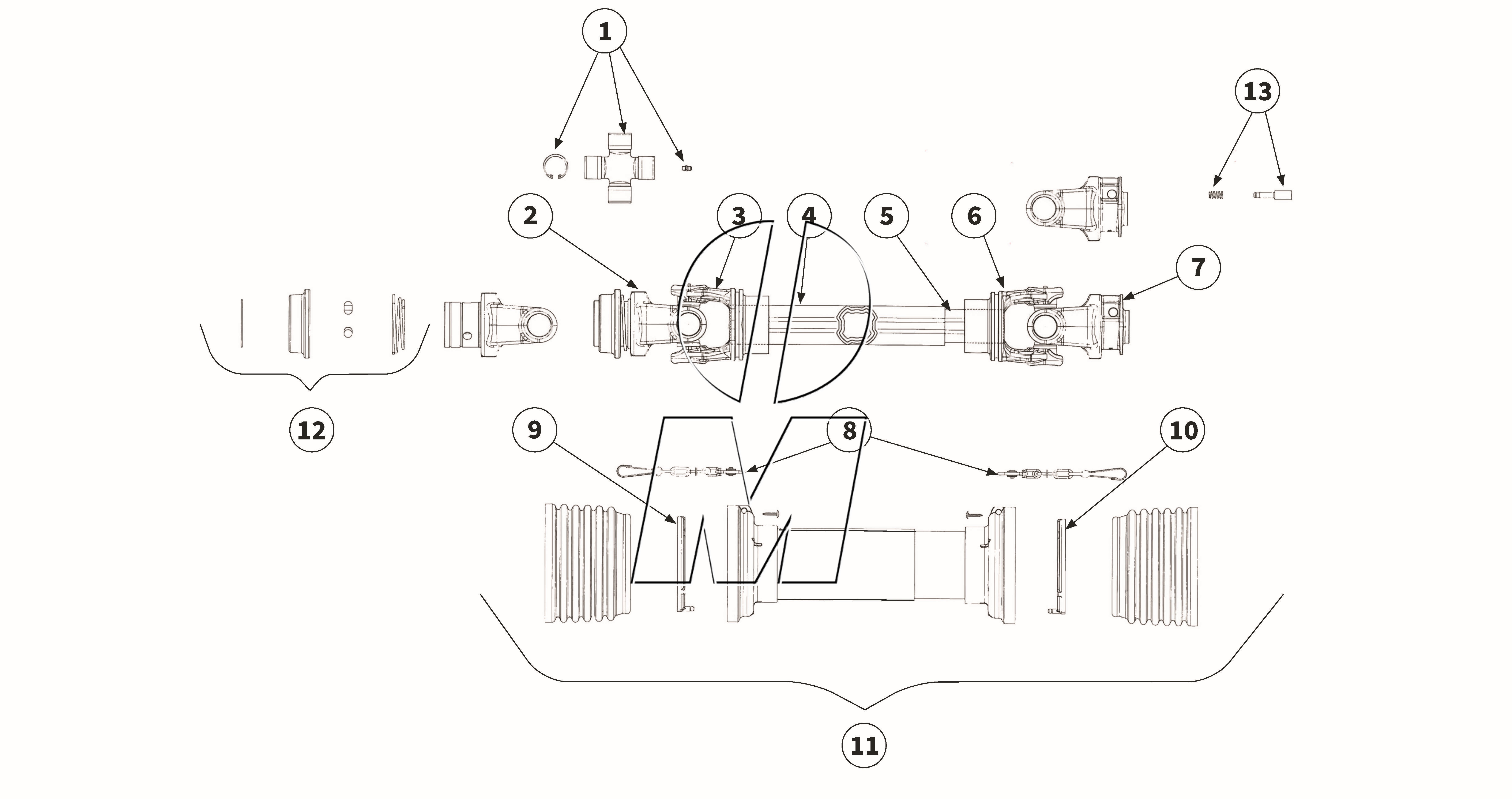

Exploded view 10: Cardan shaft - GE2504 (P_LS_ET_25_WEL)

Exploded view 10: Cardan shaft - GE2504 Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
10
96202510

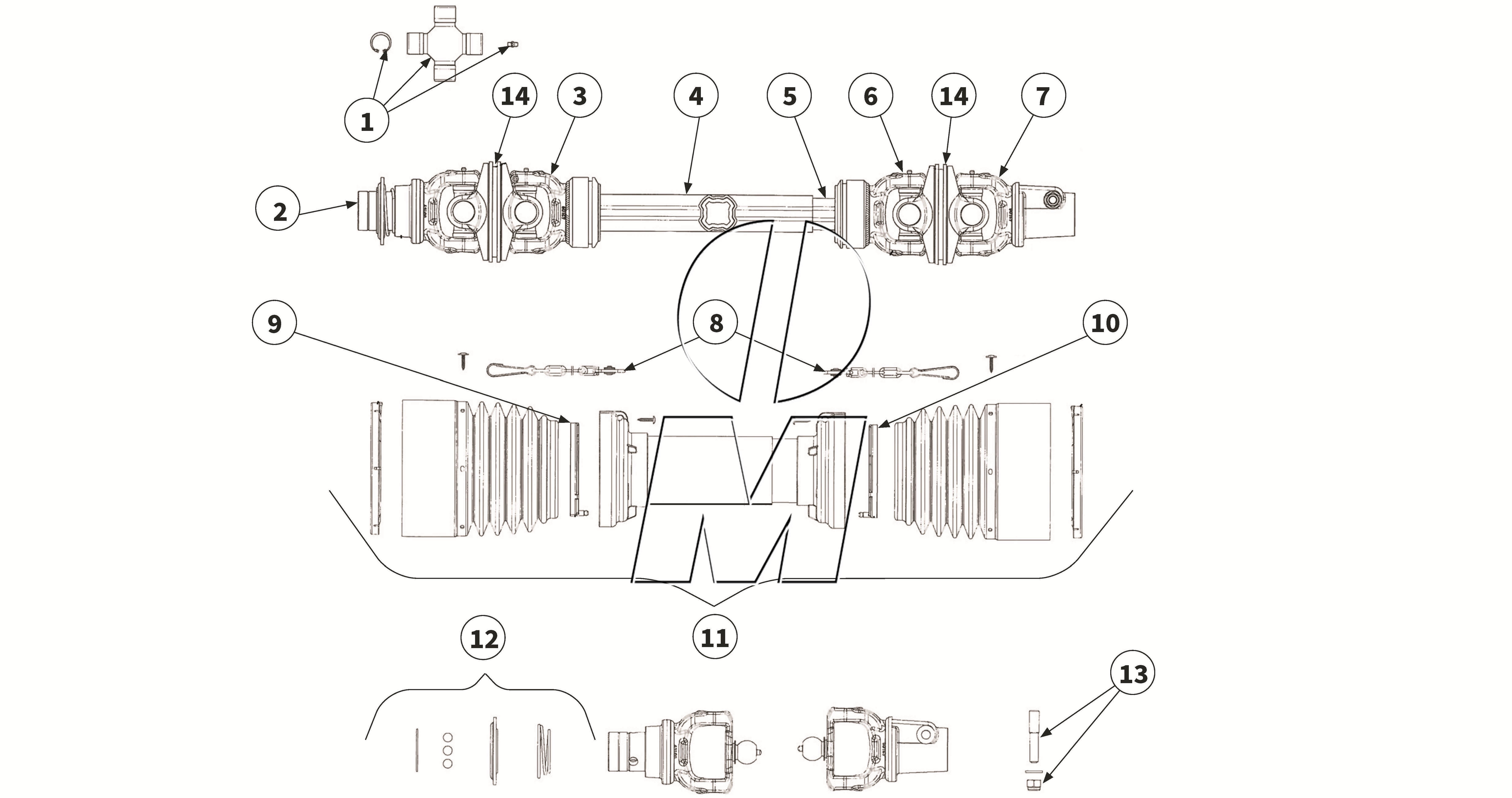

Exploded view 11: Cardan shaft - GE2504WW (P_LS_ET_25_WEL)

Exploded view 11: Cardan shaft - GE2504WW Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
11
96202511

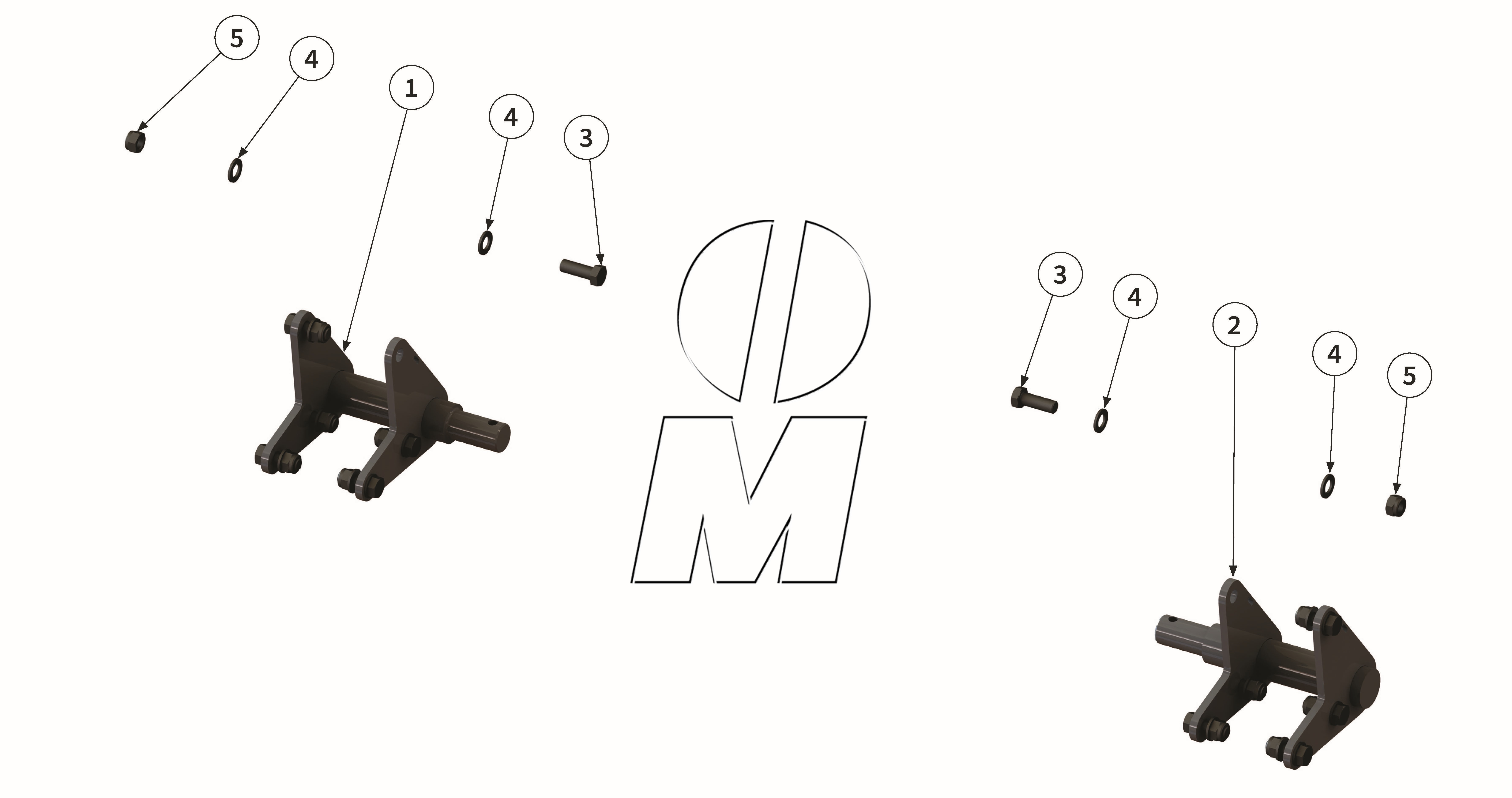

Exploded view 12: Lower link receiver Kat3 (P_LS_ET_25_WEL)

Exploded view 12: Lower link receiver Kat3 Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
12
96202512

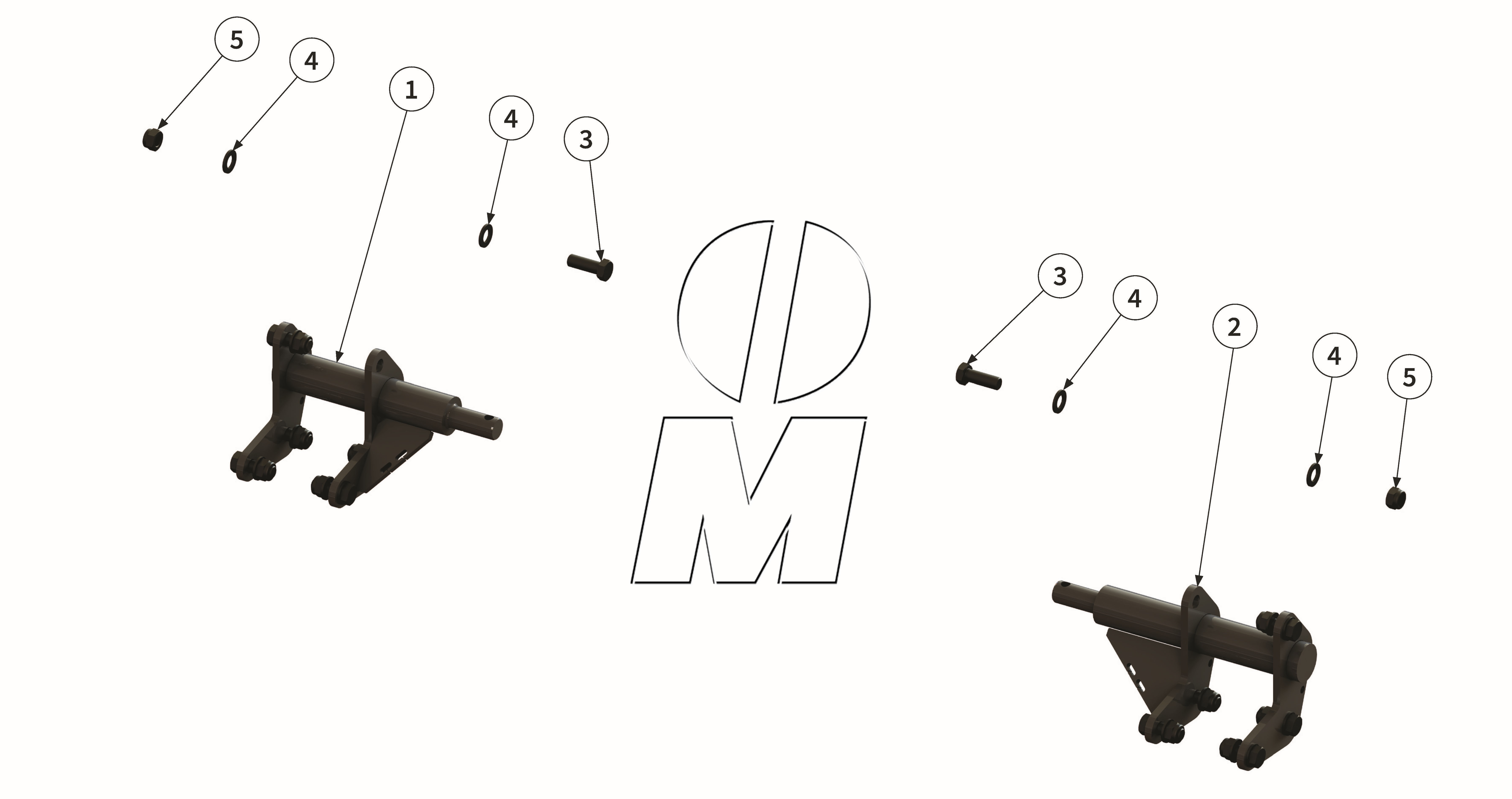

Exploded view 13: Lower link receiver Kat2 (P_LS_ET_25_WEL)

Exploded view 13: Lower link receiver Kat2 Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
13
96202513

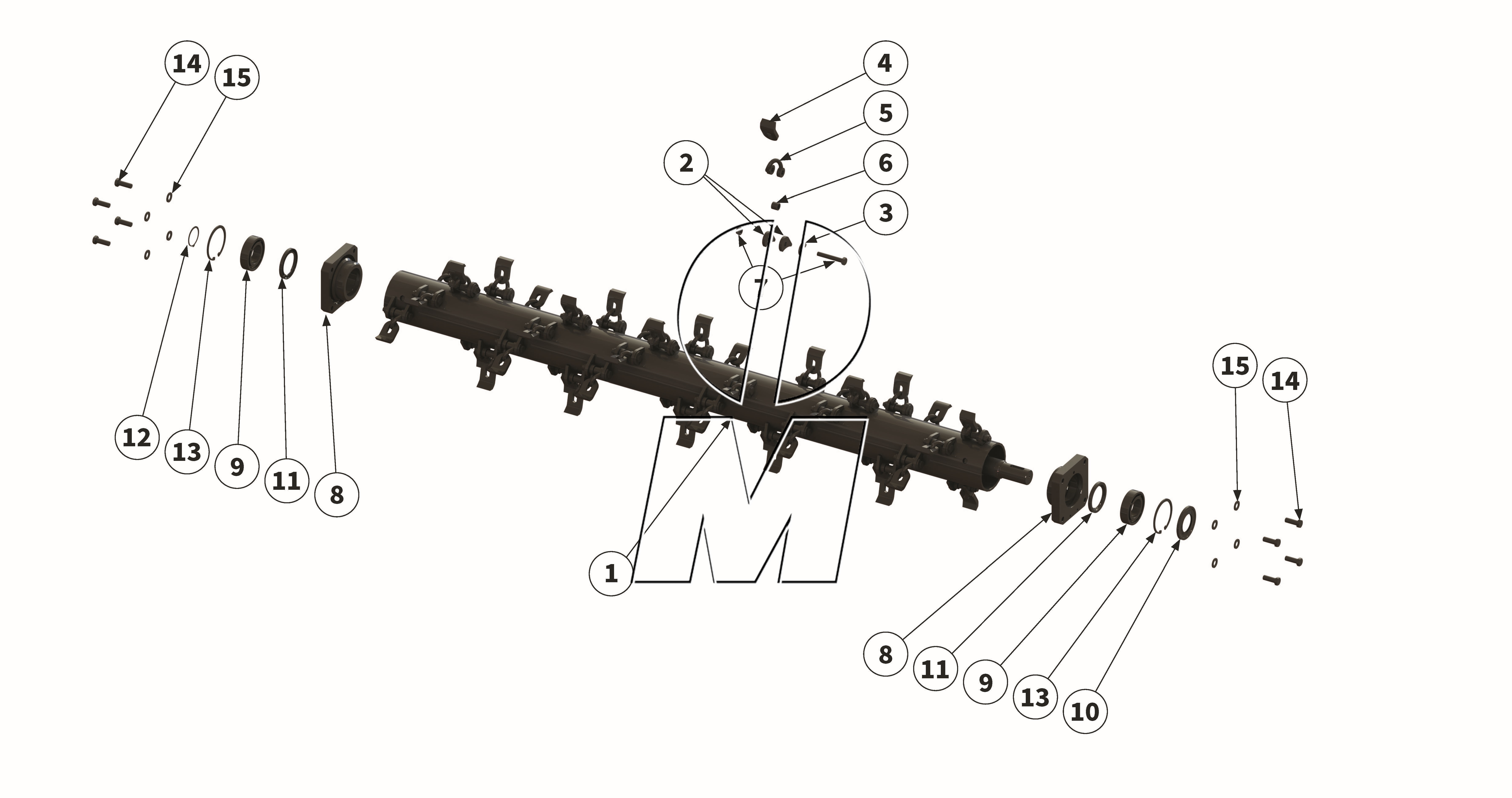

Exploded view 14: Shackle rotor (P_LS_ET_25_WEL)

Exploded view 14: Shackle rotor Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
14
96202514

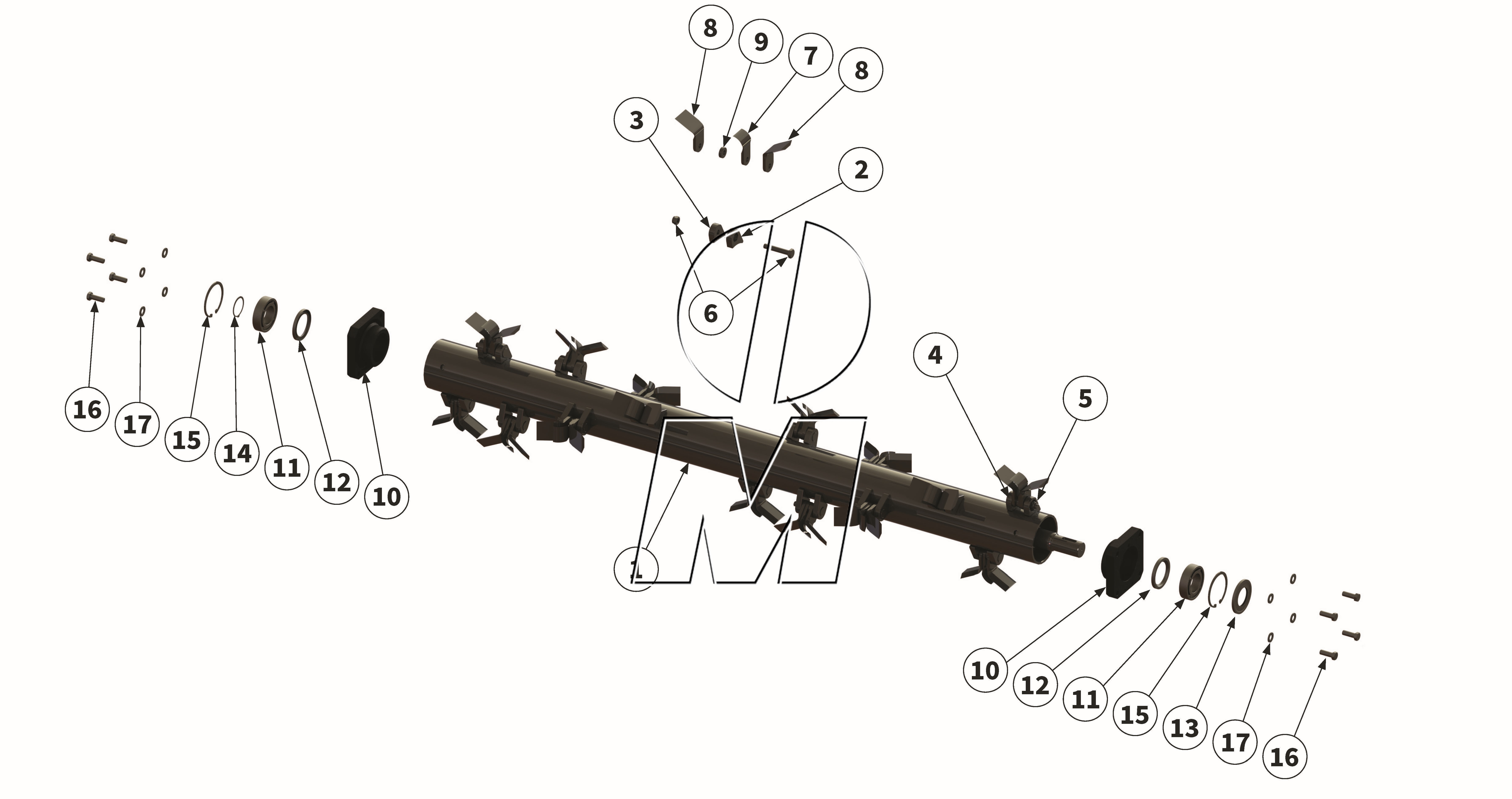

Exploded view 15: Y-blade rotor (P_LS_ET_25_WEL)

Exploded view 15: Y-blade rotor Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
15
96202515

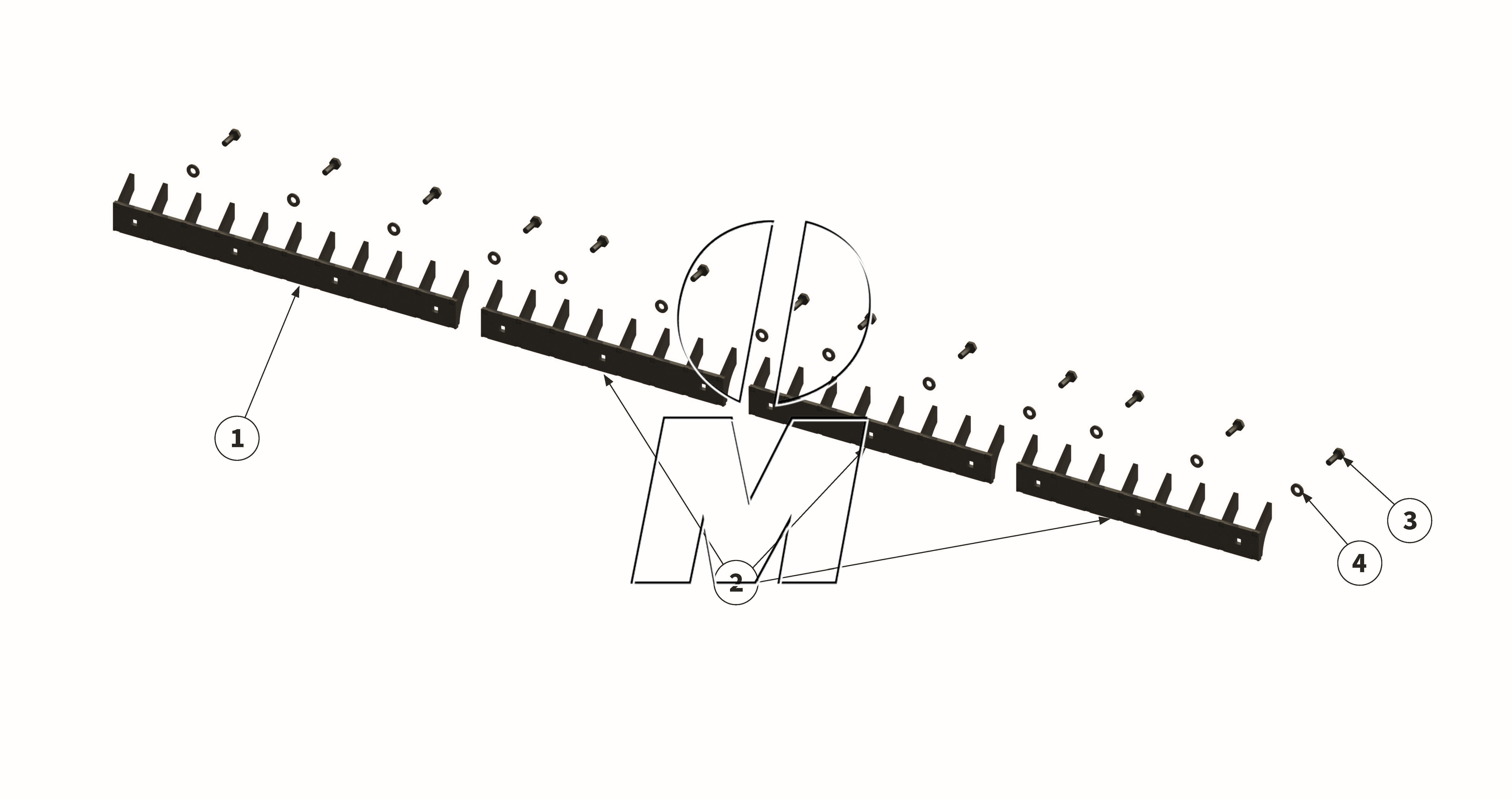

Exploded view 16: 2 Short chopping bar (P_LS_ET_25_WEL)

Exploded view 16: 2 Short chopping bar Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
16
96202516

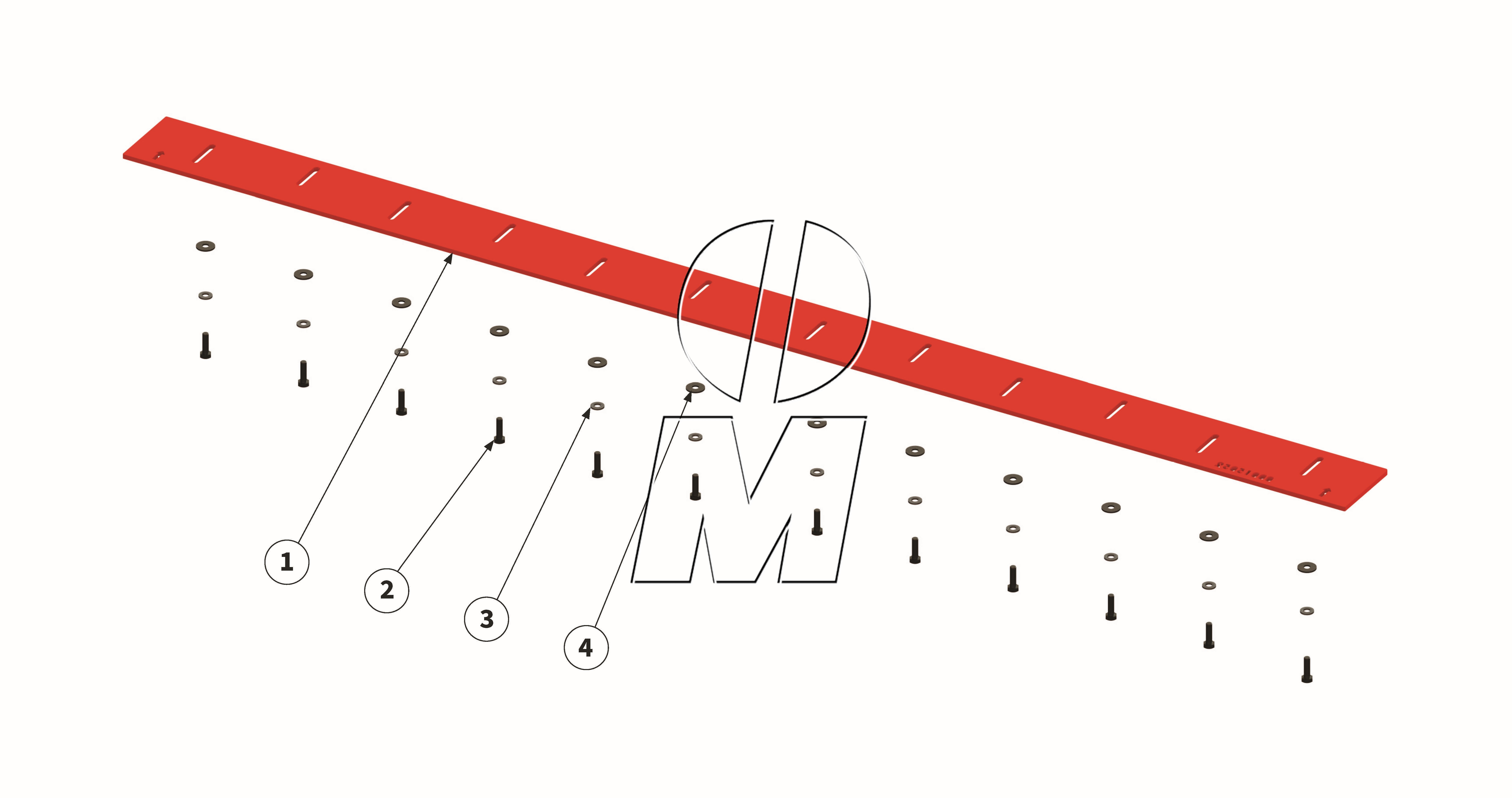

Exploded view 17: Cutting bar (P_LS_ET_25_WEL)

Exploded view 17: Cutting bar Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
17
96202517

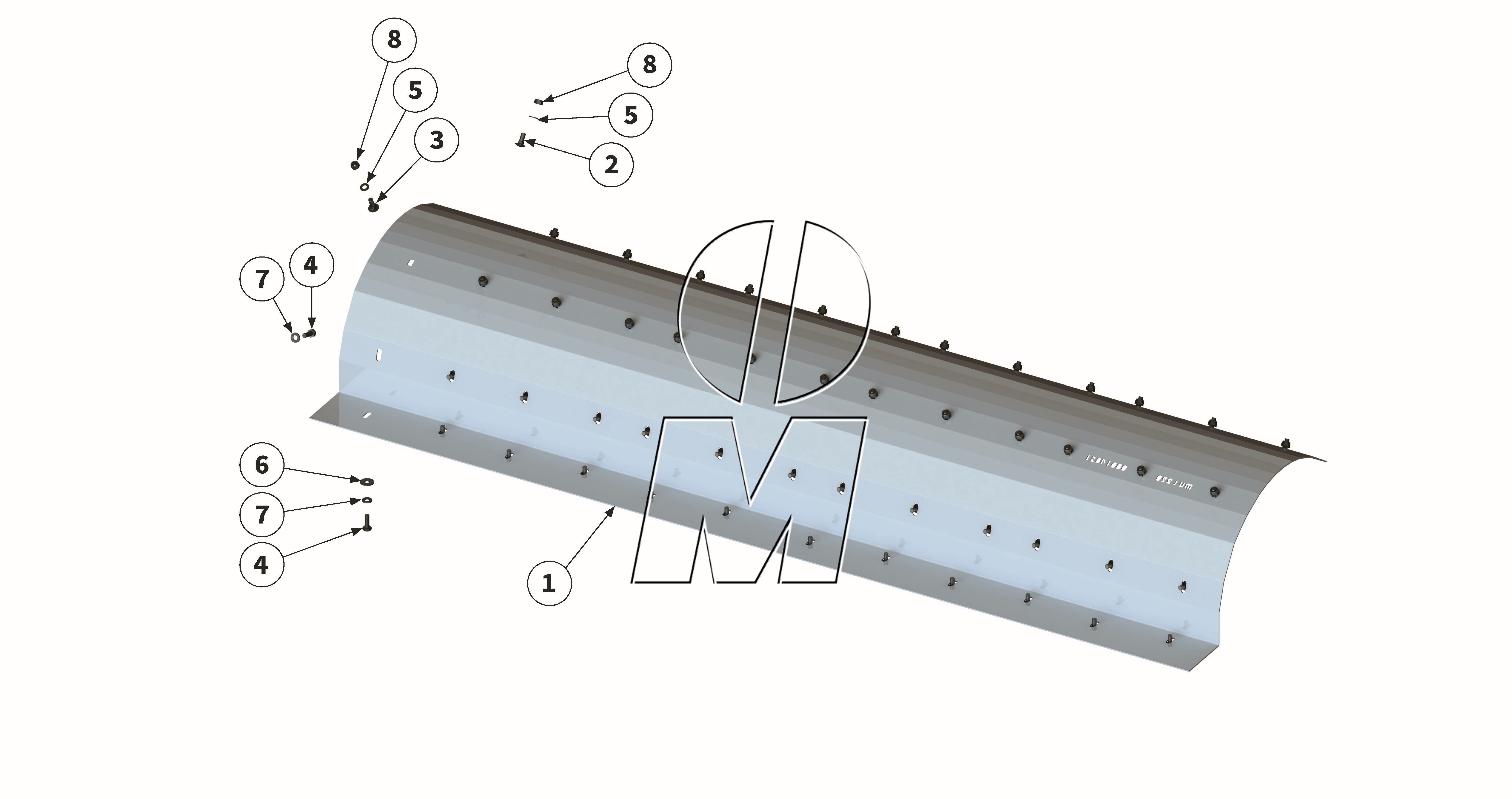

Exploded view 18: Wear insert (P_LS_ET_25_WEL)

Exploded view 18: Wear insert Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
18
96202518

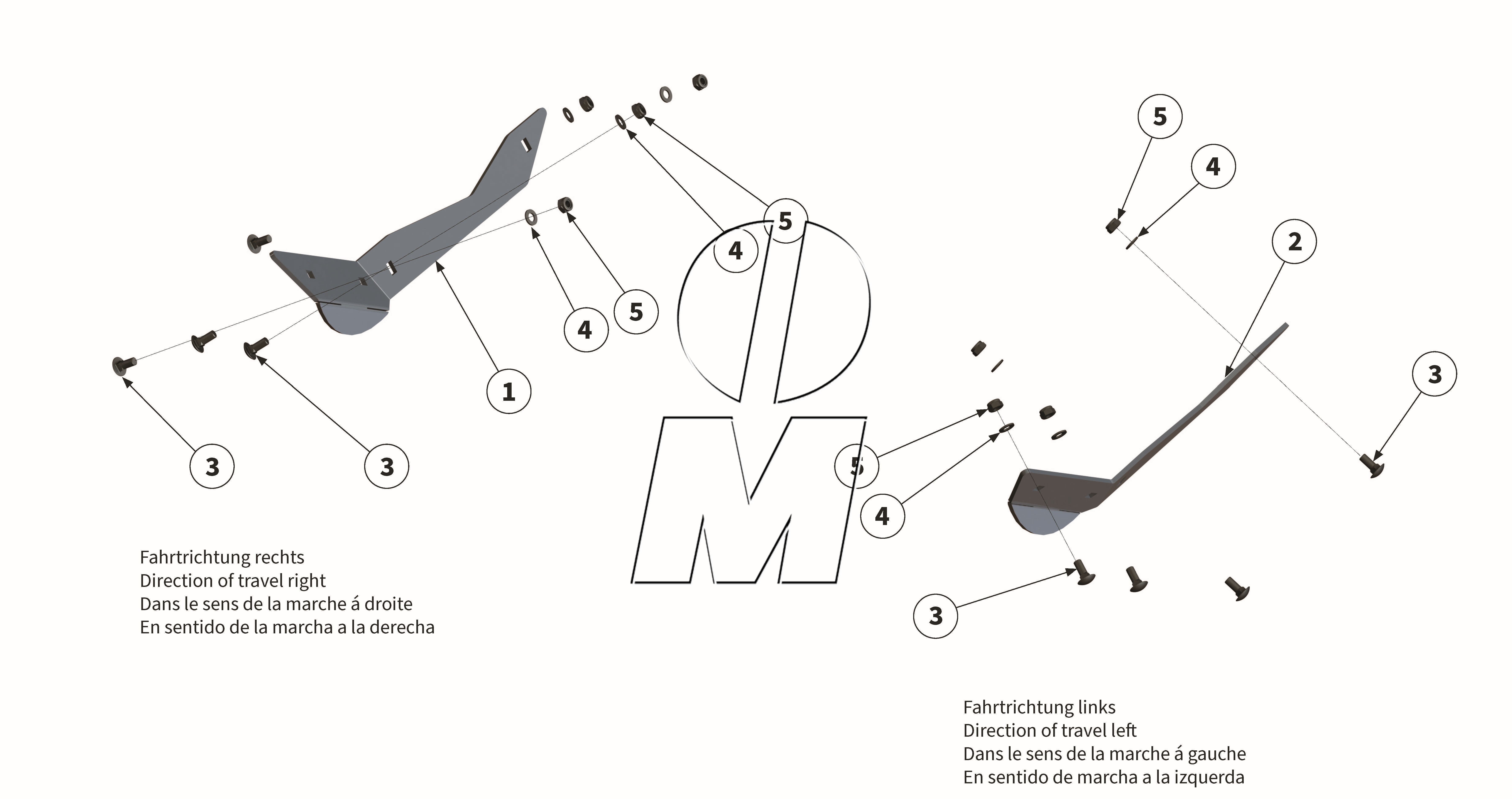

Exploded view 19: Wear runner (P_LS_ET_25_WEL)

Exploded view 19: Wear runner Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
19
96202519

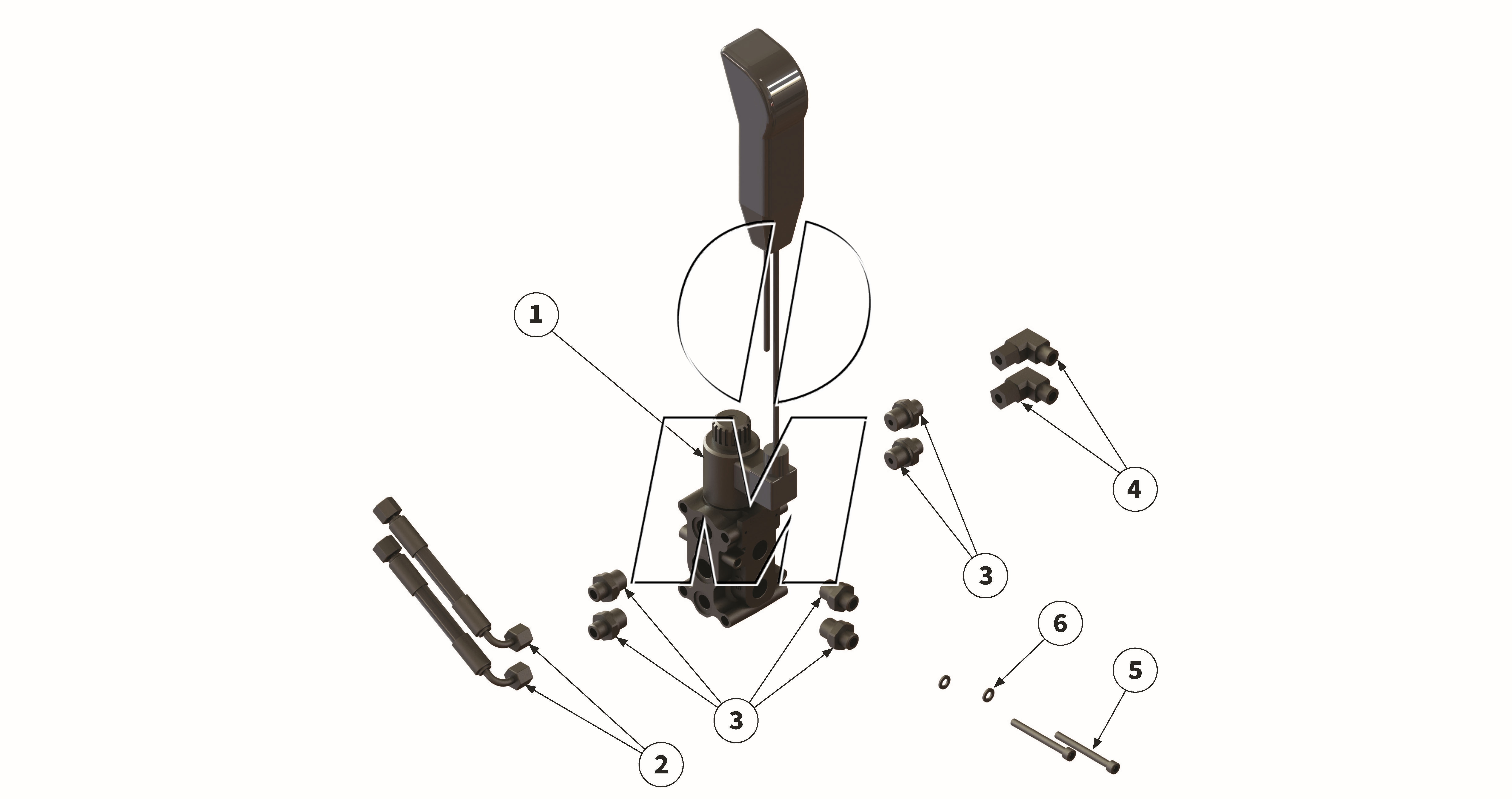

Exploded view 20: Switching valve (P_LS_ET_25_WEL)

Exploded view 20: Switching valve Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
20
96202520

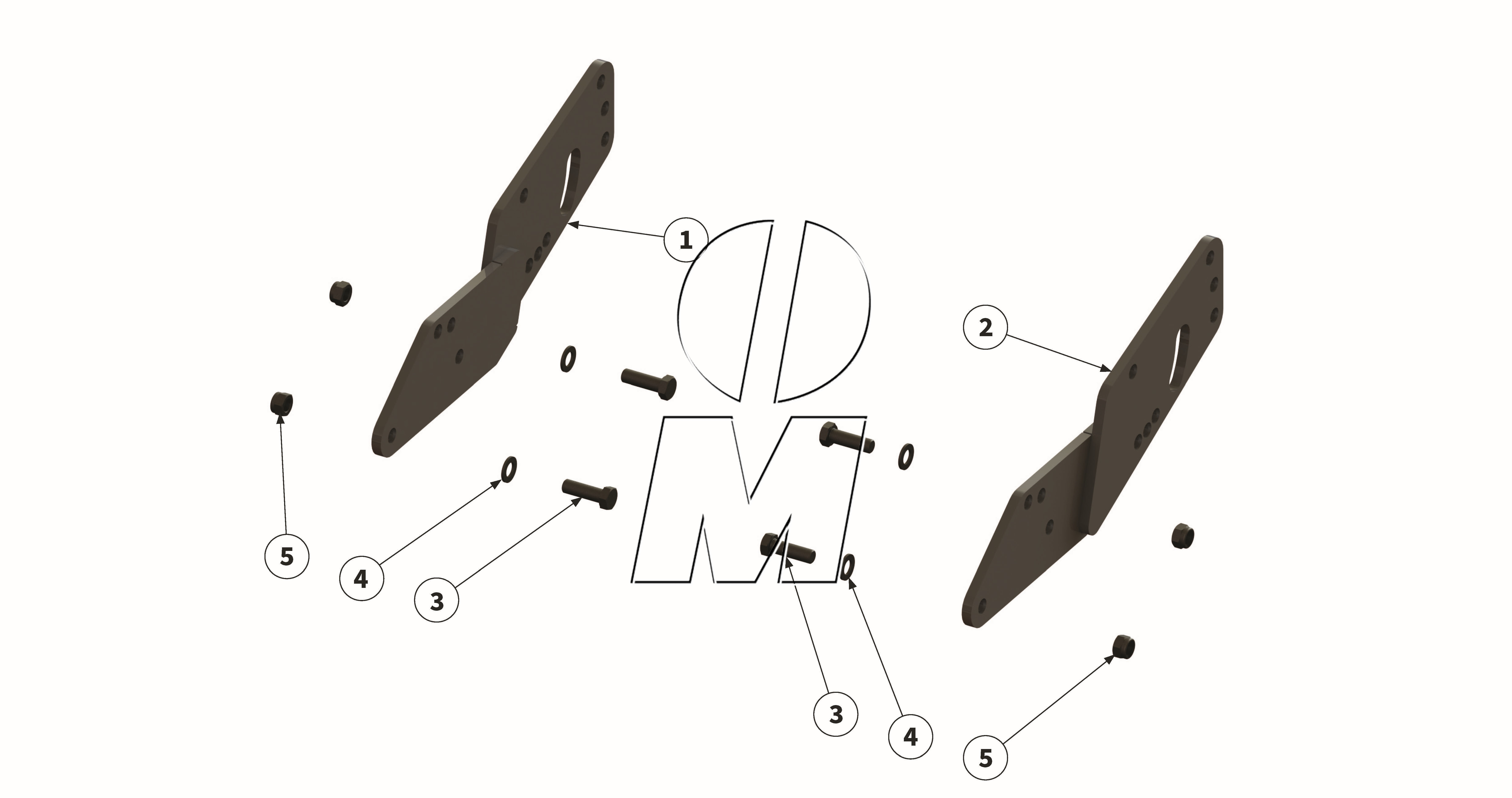

Exploded view 21: Adapter support roller (P_LS_ET_25_WEL)

Exploded view 21: Adapter support roller Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
21
96202521

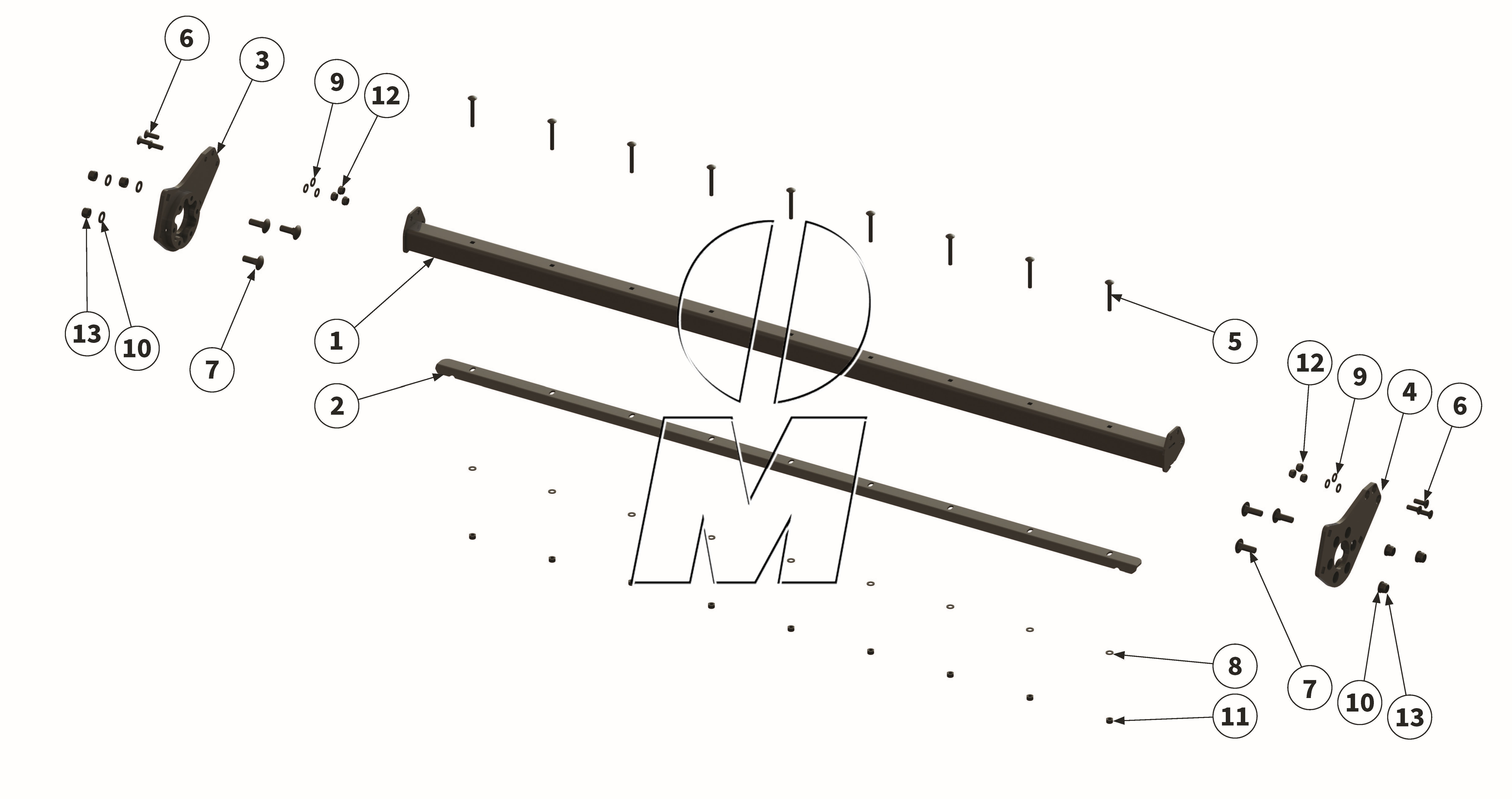

Exploded view 22: Cleaner of support roller (P_LS_ET_25_WEL)

Exploded view 22: Cleaner of support roller Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
22
96202522

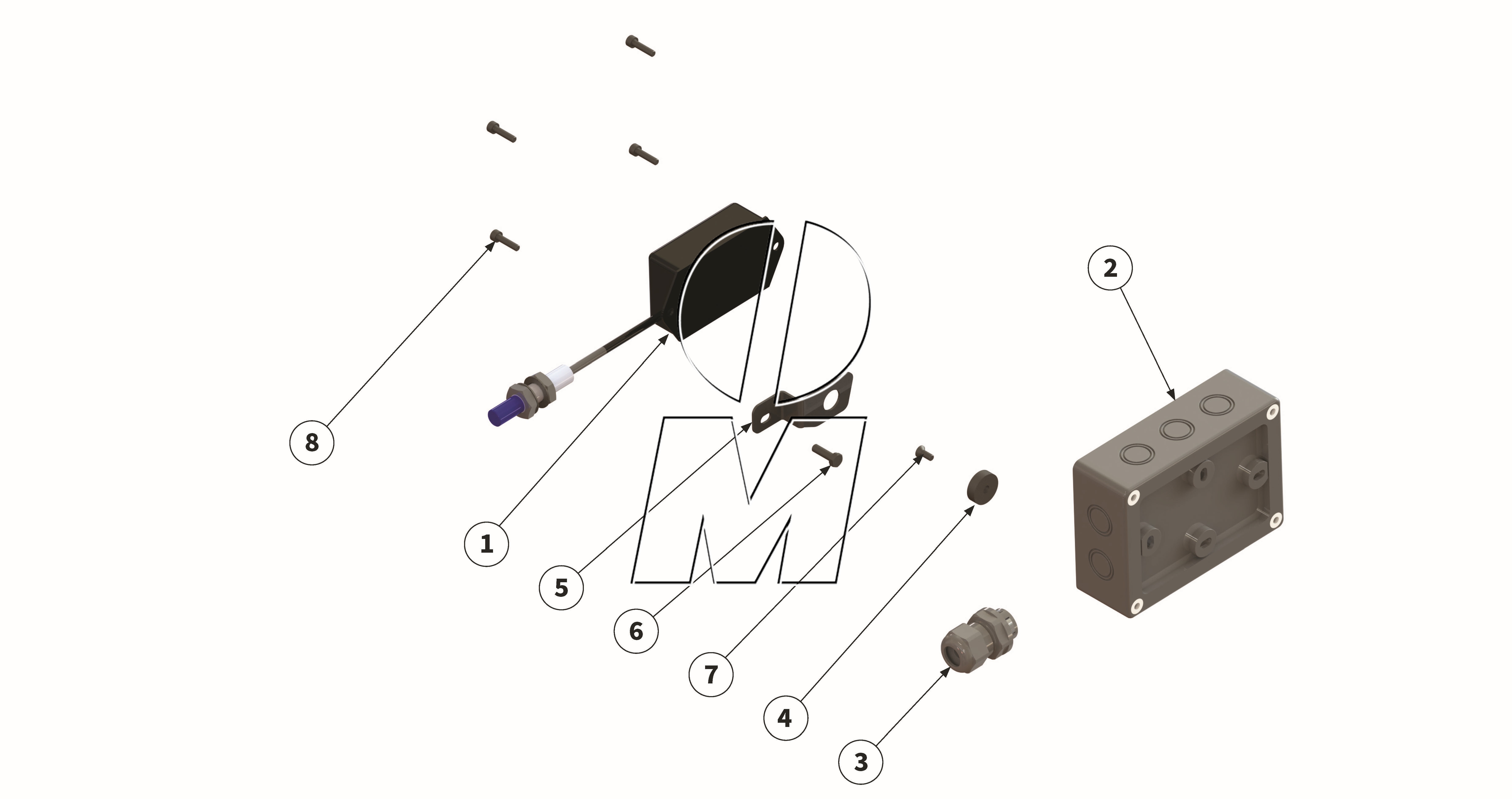

Exploded view 23: Operating hours counter (P_LS_ET_25_WEL)

Exploded view 23: Operating hours counter Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
23
96202523

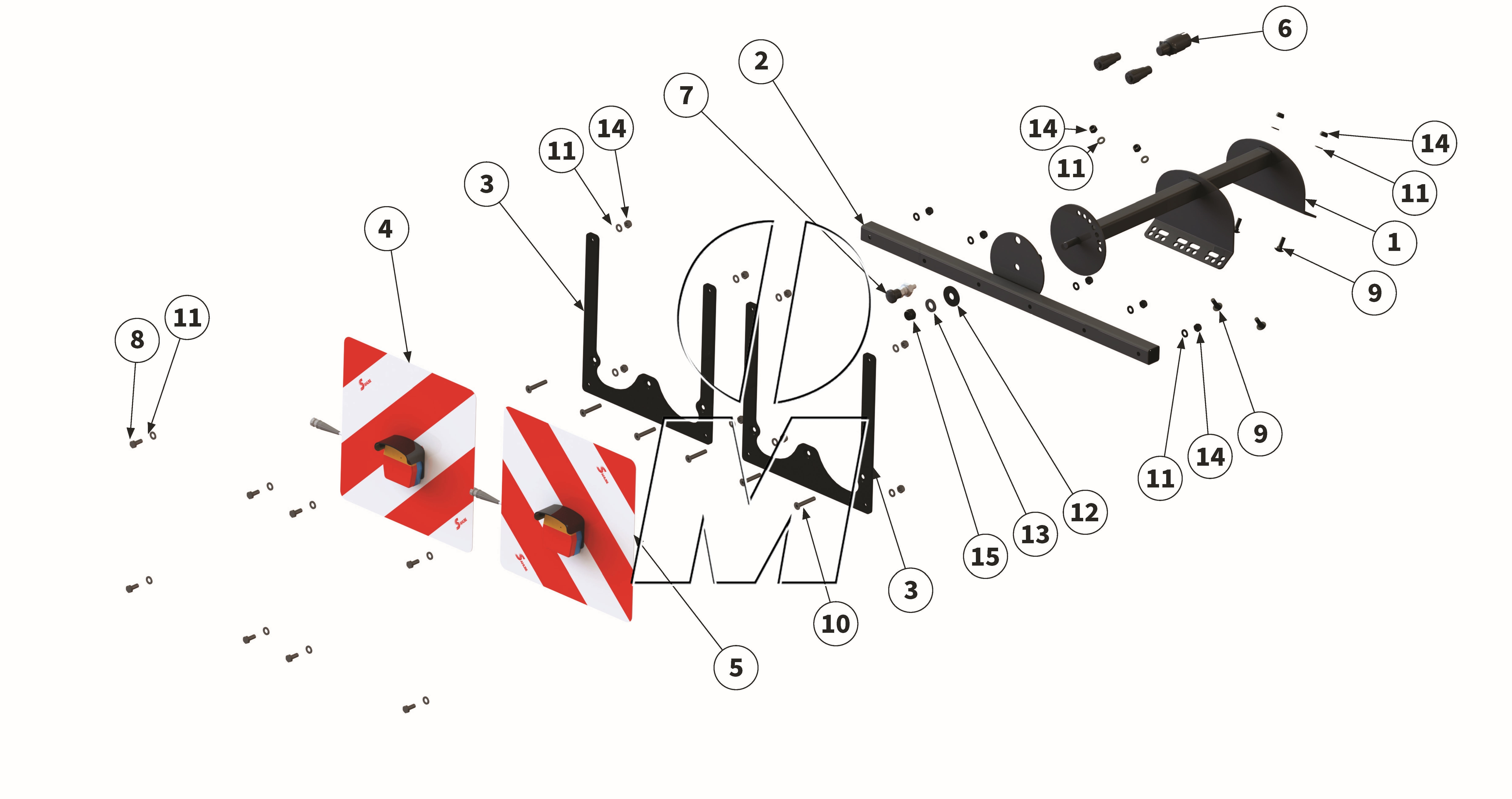

Exploded view 24: Lighting equipment (P_LS_ET_25_WEL)

Exploded view 24: Lighting equipment Model: MU-L/S VARIO 200 - 250 As of series: 2025 Edition: 2025-09 Order code: P_LS_ET_25_WEL

MU-L/S VARIO 200 - 250
24
96202524
