Parts for MU-M/F 600 (2024)

0.2/22 parts according to the drawings, suitable for MU-M/F 600 - Series 2024

In this category you will find the exploded drawings for the current model series.
If you need spare parts for an older machine, please search for the PDF spare parts lists in the download directory.
Downloads MÜTHING Spare Parts Lists

Exploded view 01: Housing left (P_MF_ET_24_WEL)

Exploded view 01: Housing left Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
01
96222401

Exploded view 02: Housing right (P_MF_ET_24_WEL)

Exploded view 02: Housing right Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
02
96222402

Exploded view 03: Protective rubber (P_MF_ET_24_WEL)

Exploded view 03: Protective rubber Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
03
96222403

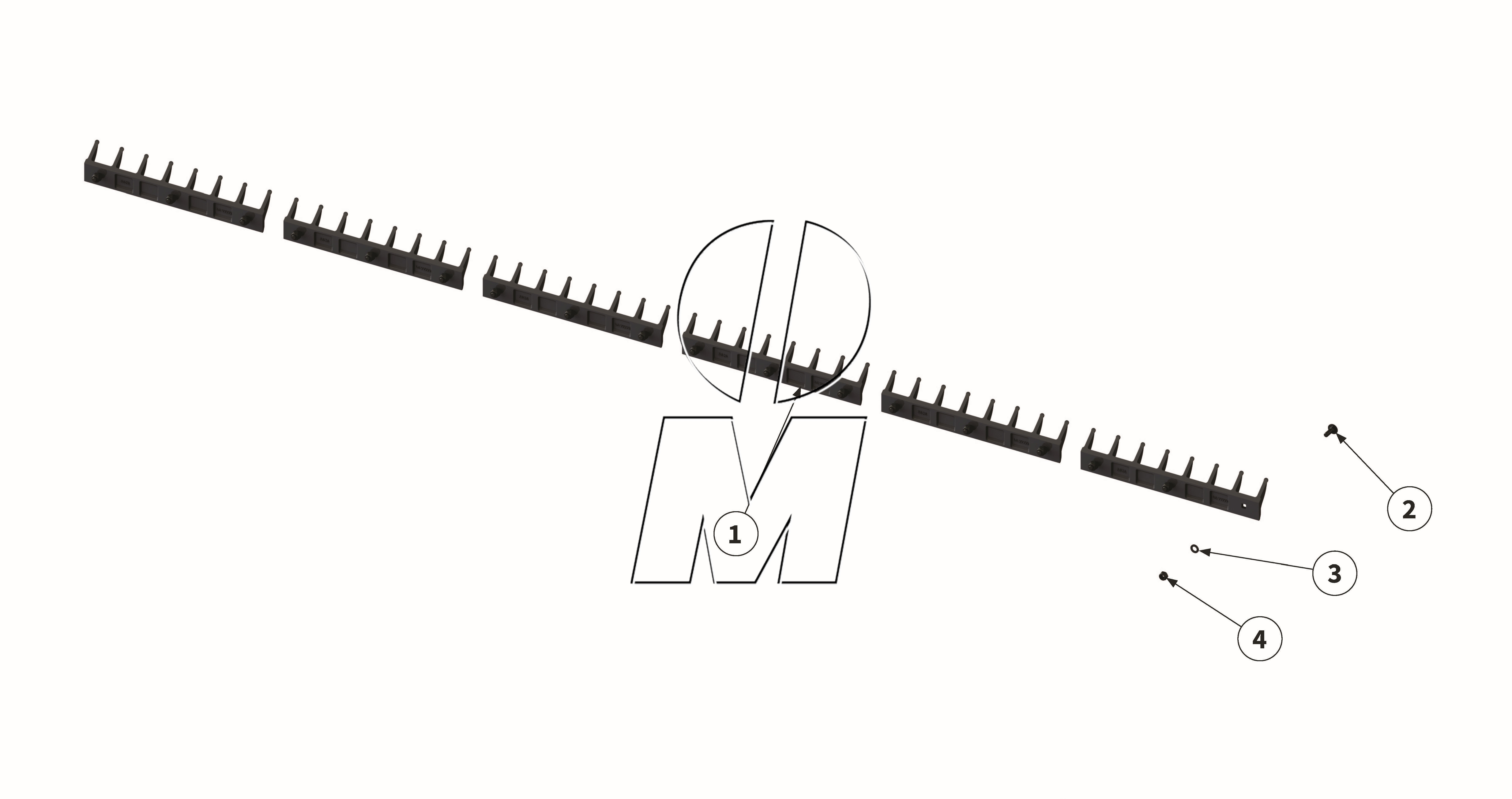

Exploded view 04: Short chopping bar (P_MF_ET_24_WEL)

Exploded view 04: Short chopping bar Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
04
96222404

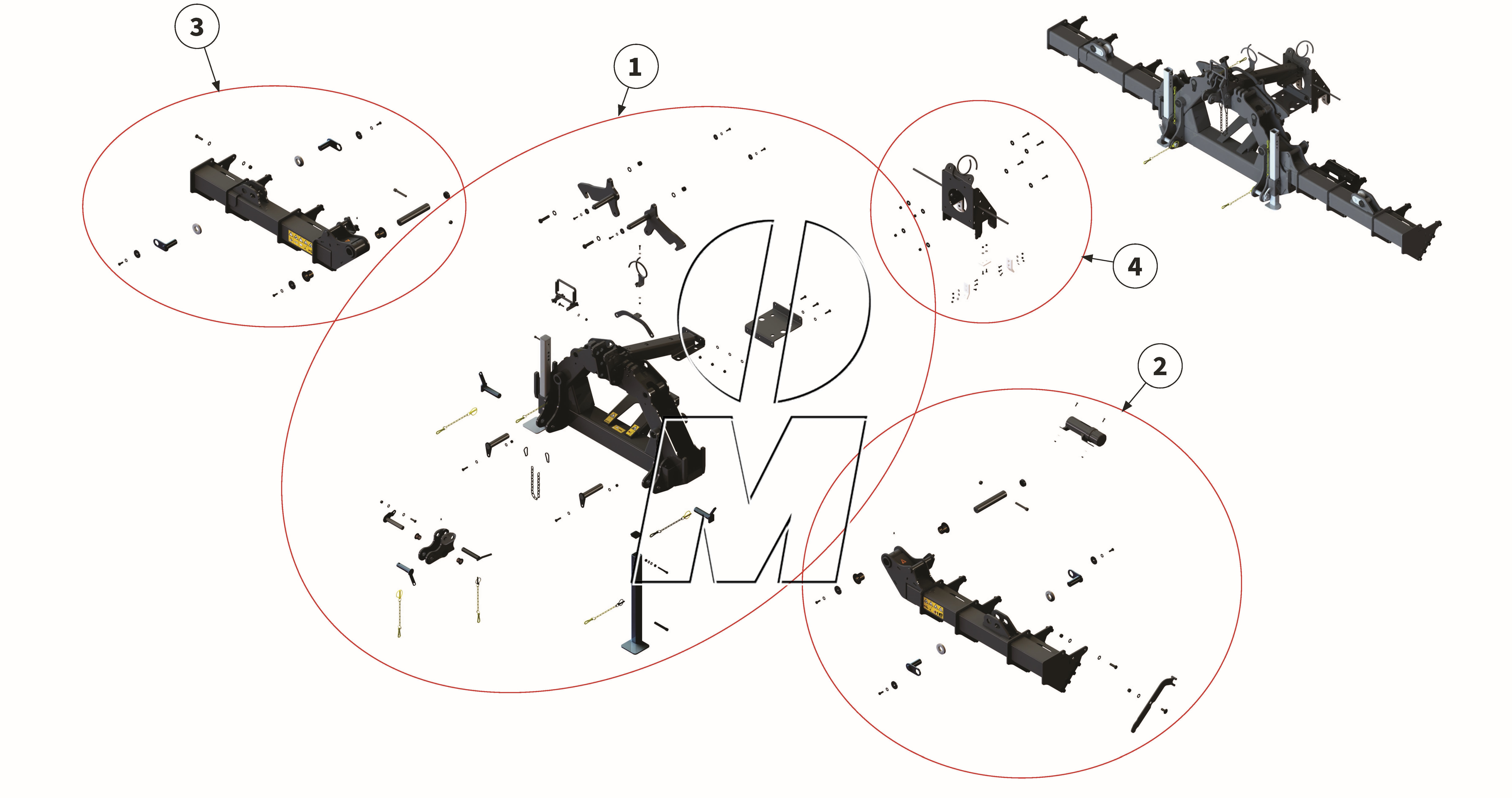

Exploded view 05: Overview 3-point trestle (P_MF_ET_24_WEL)

Exploded view 05: Overview 3-point trestle Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
05
96222405

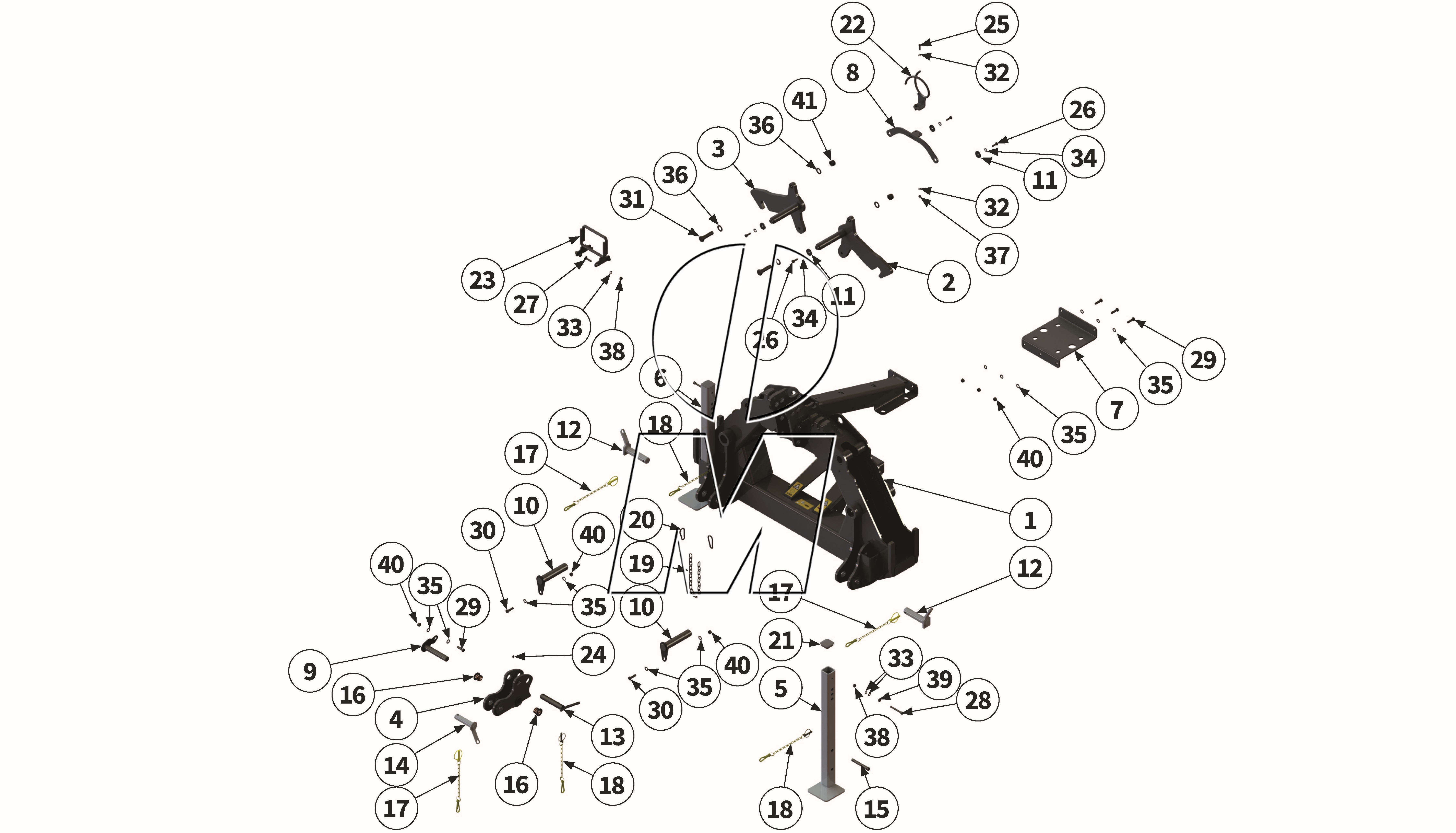

Exploded view 06: 3-point trestle (P_MF_ET_24_WEL)

Exploded view 06: 3-point trestle Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
06
96222406

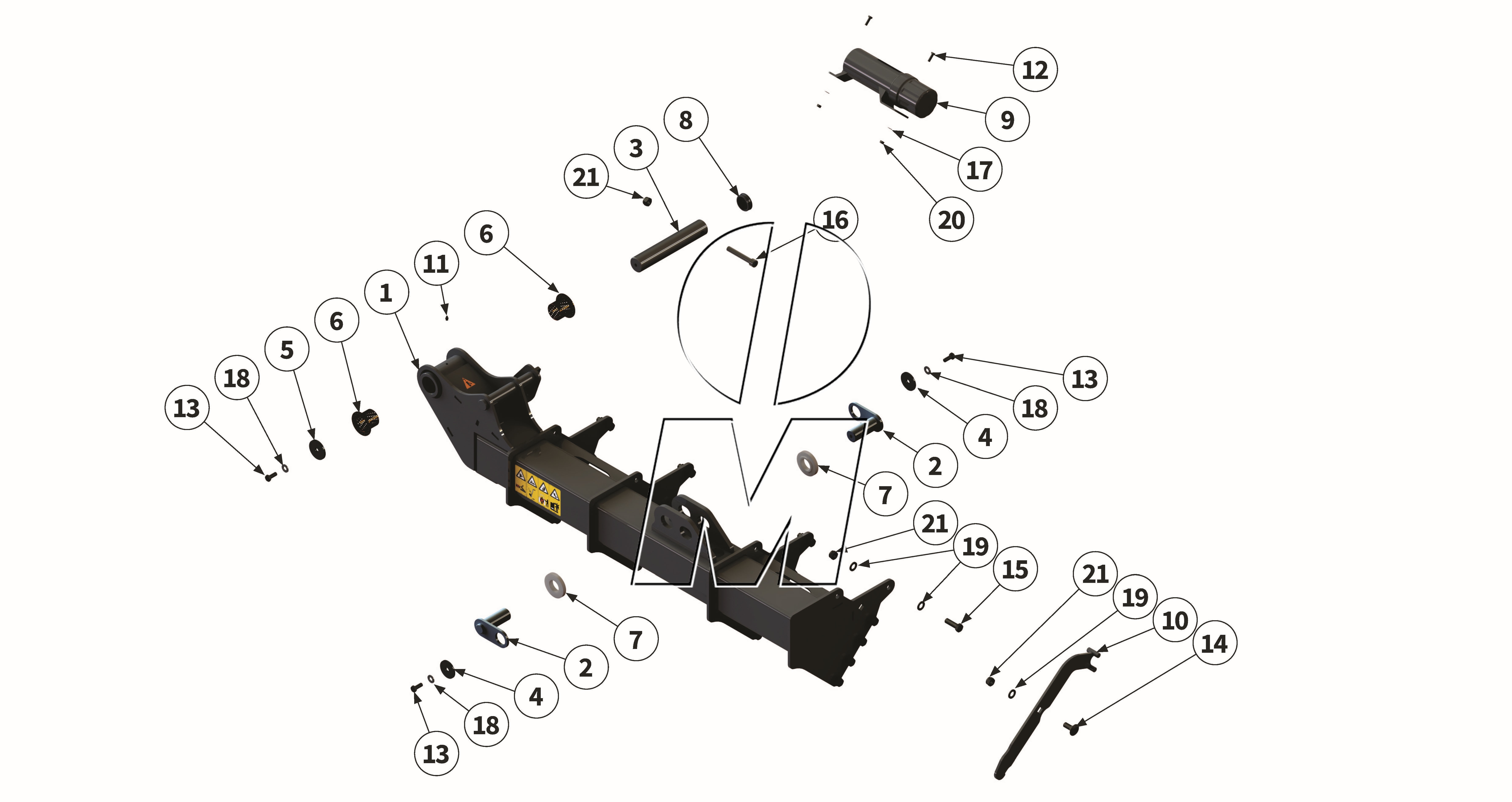

Exploded view 07: Left support arm (P_MF_ET_24_WEL)

Exploded view 07: Left support arm Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
07
96222407

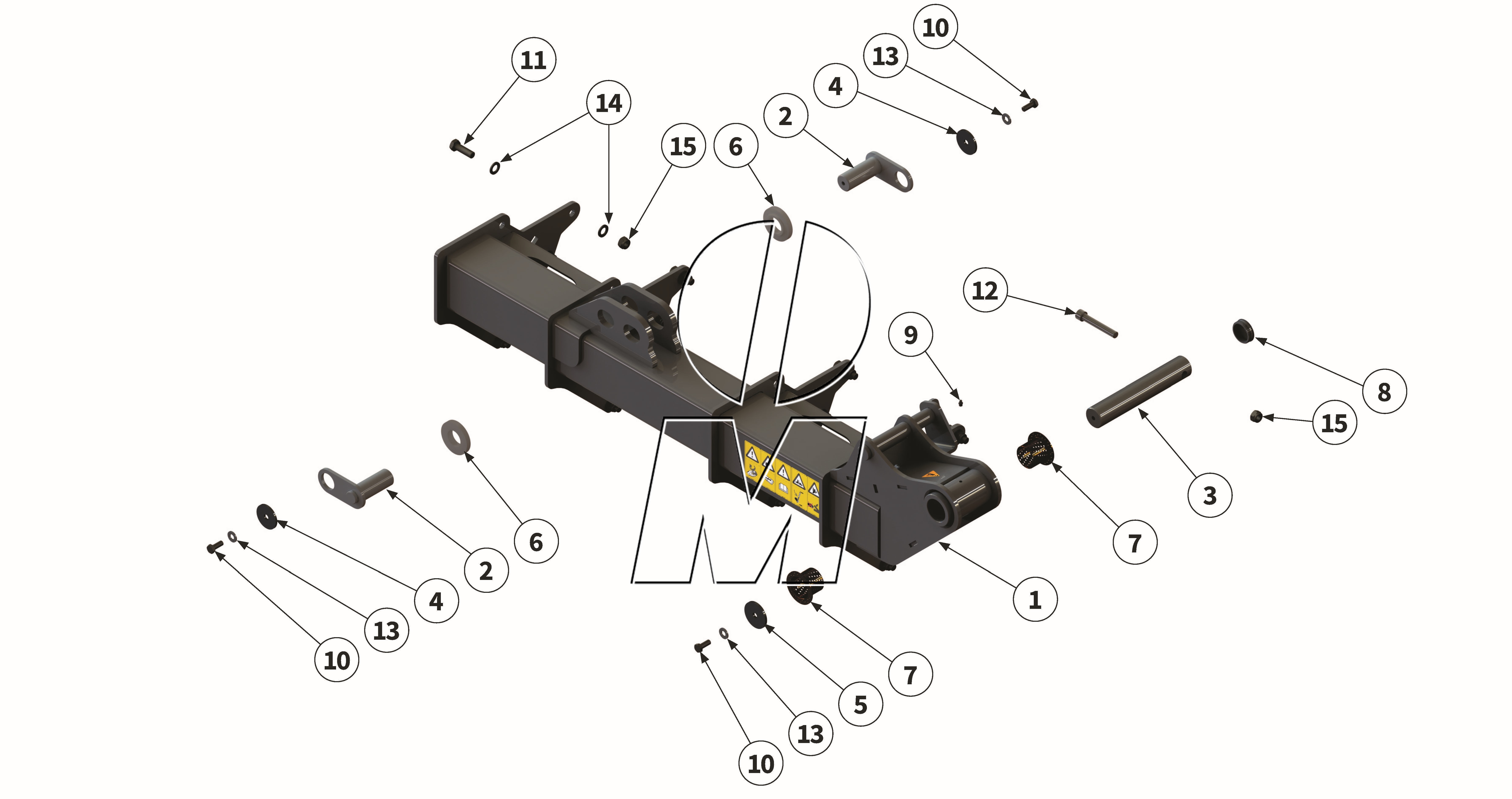

Exploded view 08: Right support arm (P_MF_ET_24_WEL)

Exploded view 08: Right support arm Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
08
96222408

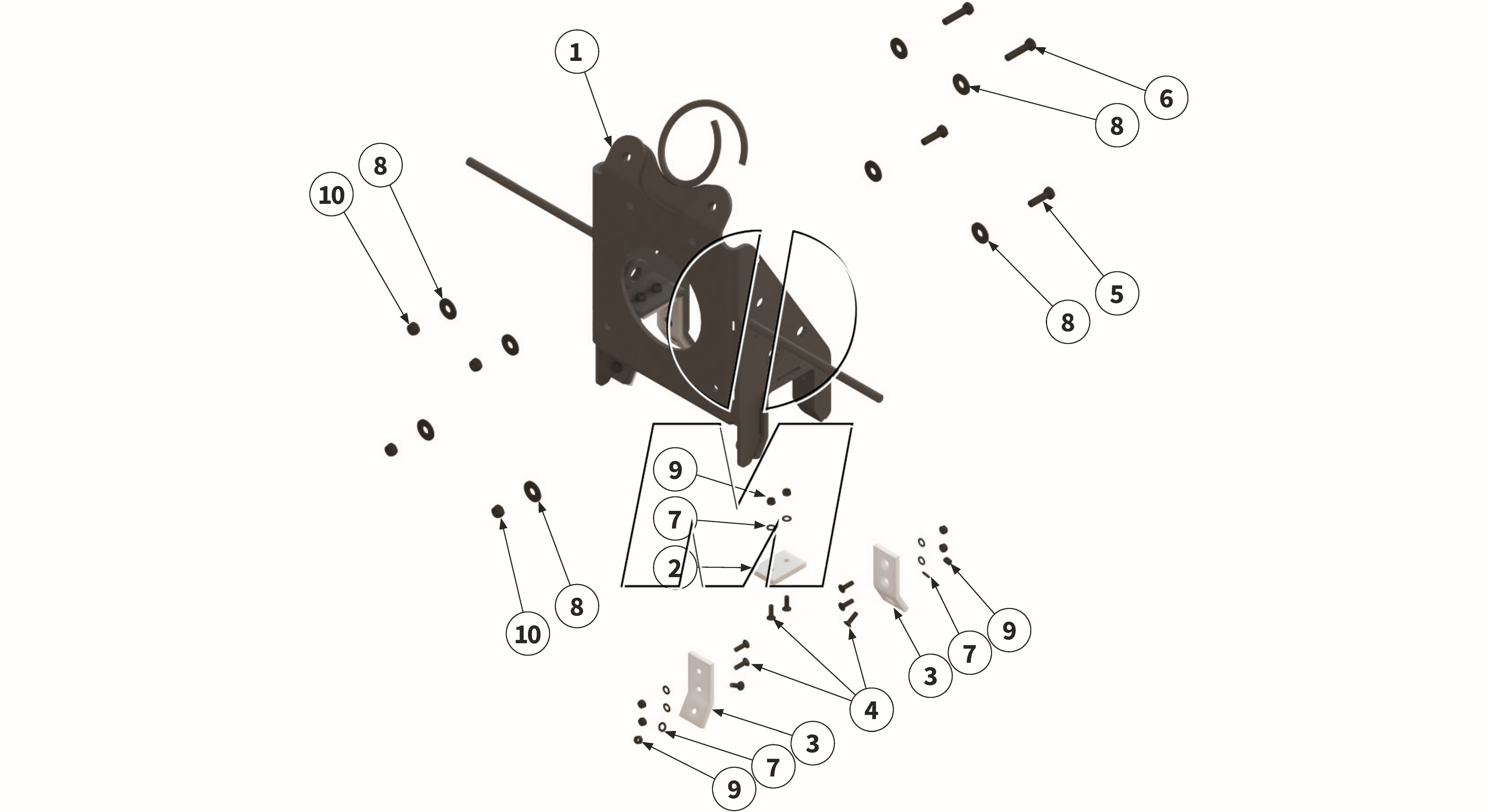

Exploded view 09: Holder strip mulcher (P_MF_ET_24_WEL)

Exploded view 09: Holder strip mulcher Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
09
96222409

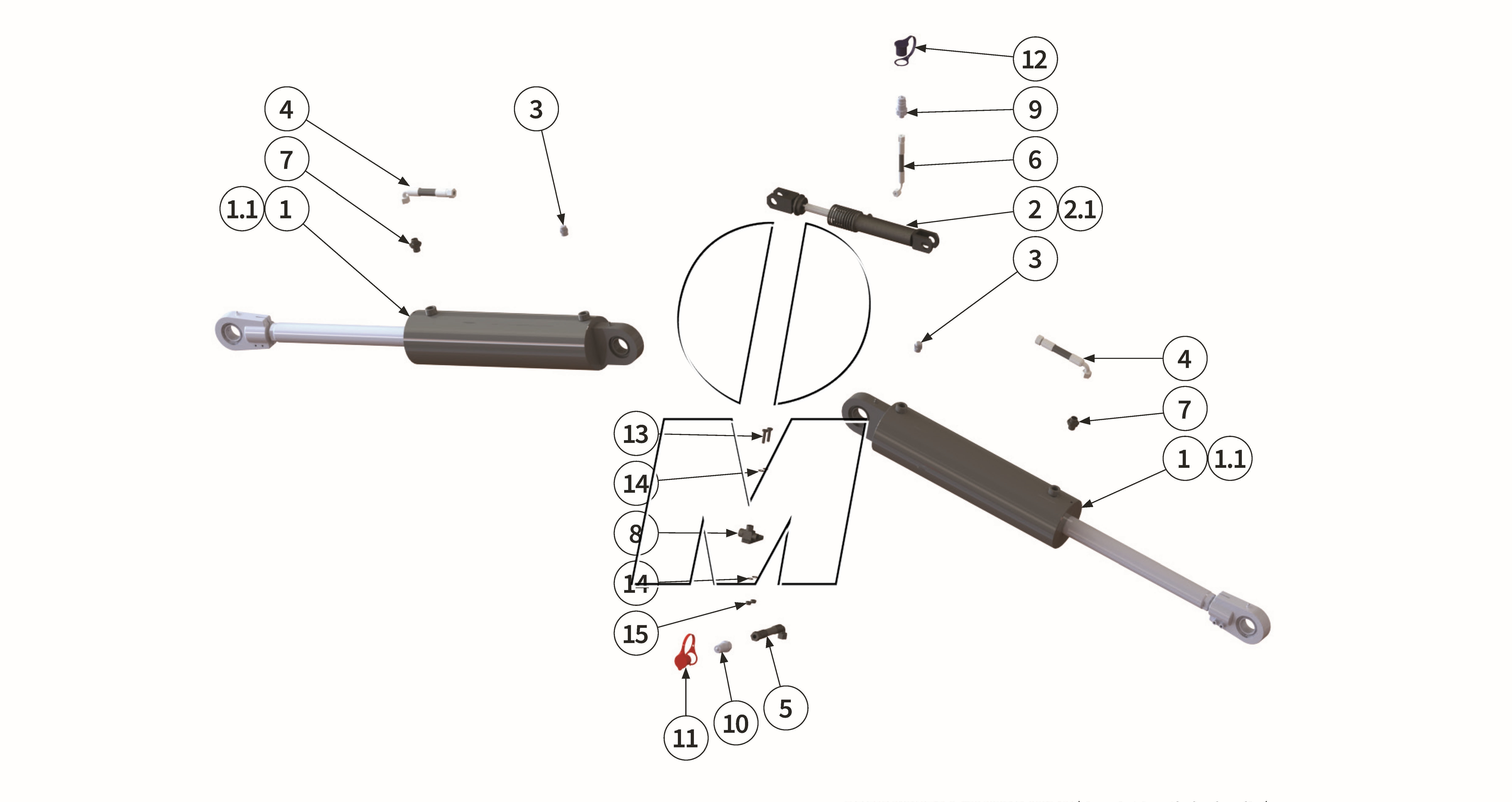

Exploded view 10: 3-point trestle hydraulic (P_MF_ET_24_WEL)

Exploded view 10: 3-point trestle hydraulic Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
10
96222410

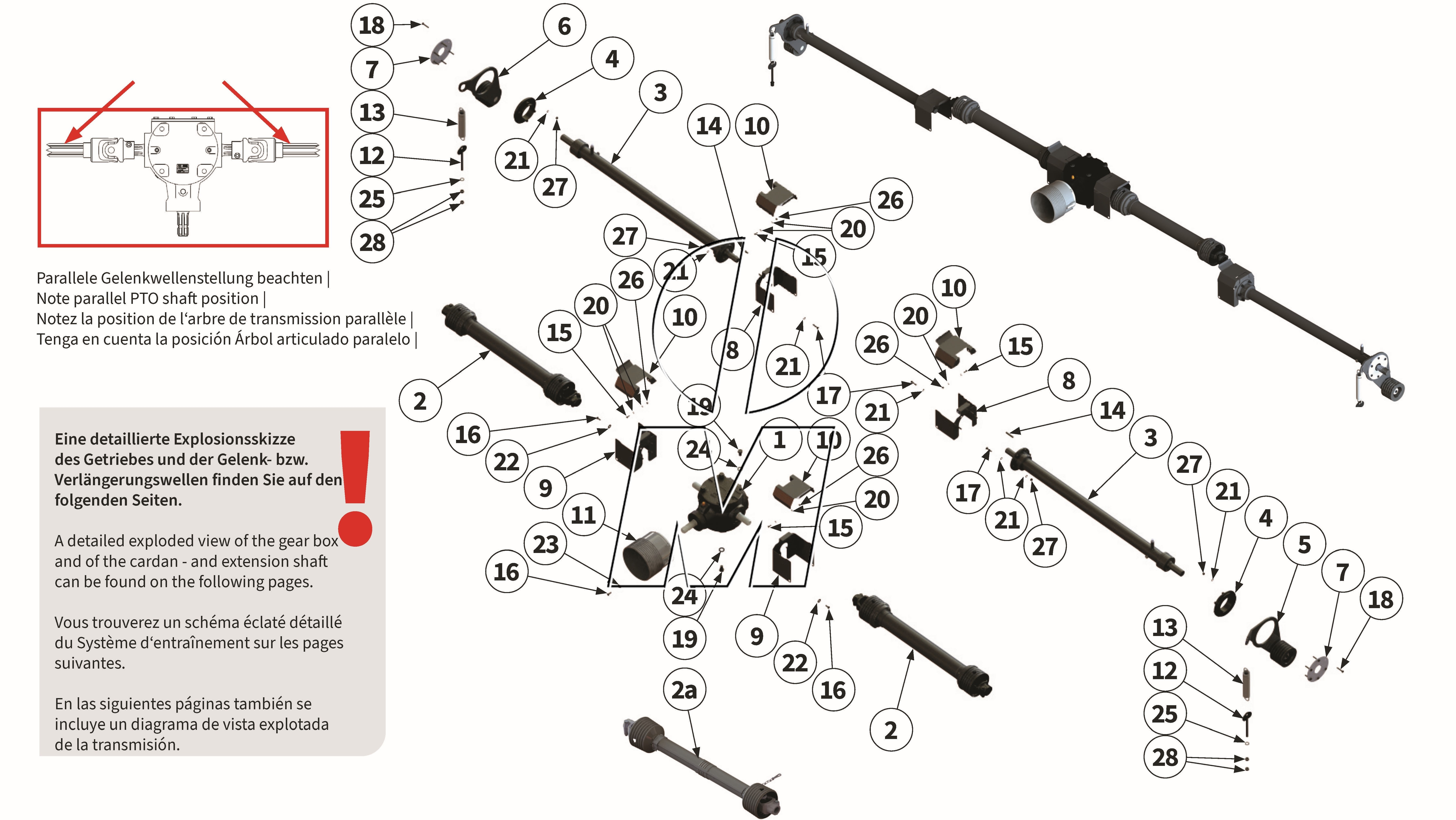

Exploded view 11: Drive and gear box (P_MF_ET_24_WEL)

Exploded view 11: Drive and gear box Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
11
96222411

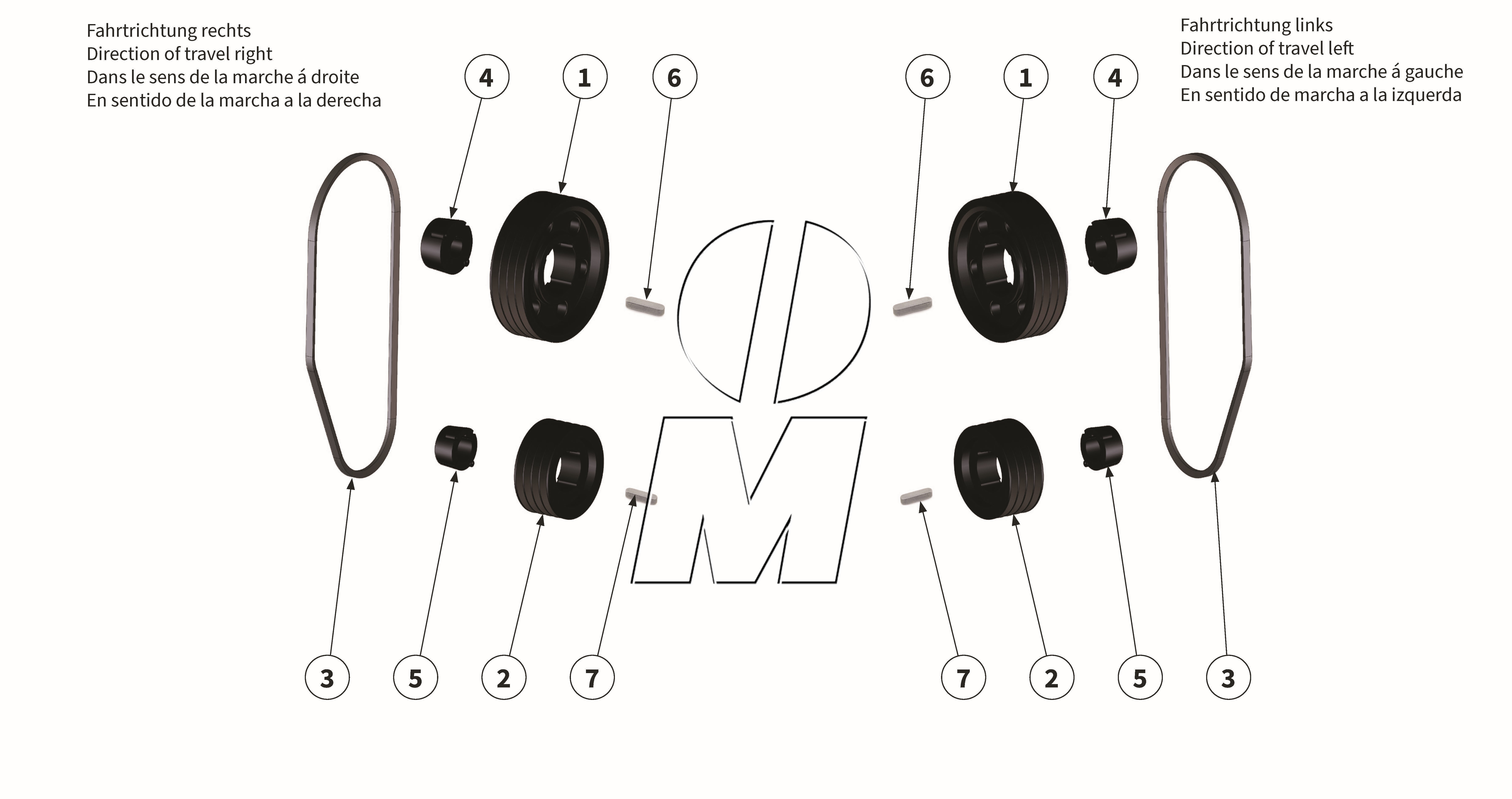

Exploded view 12: Gear box ratio (P_MF_ET_24_WEL)

Exploded view 12: Gear box ratio Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
12
96222412

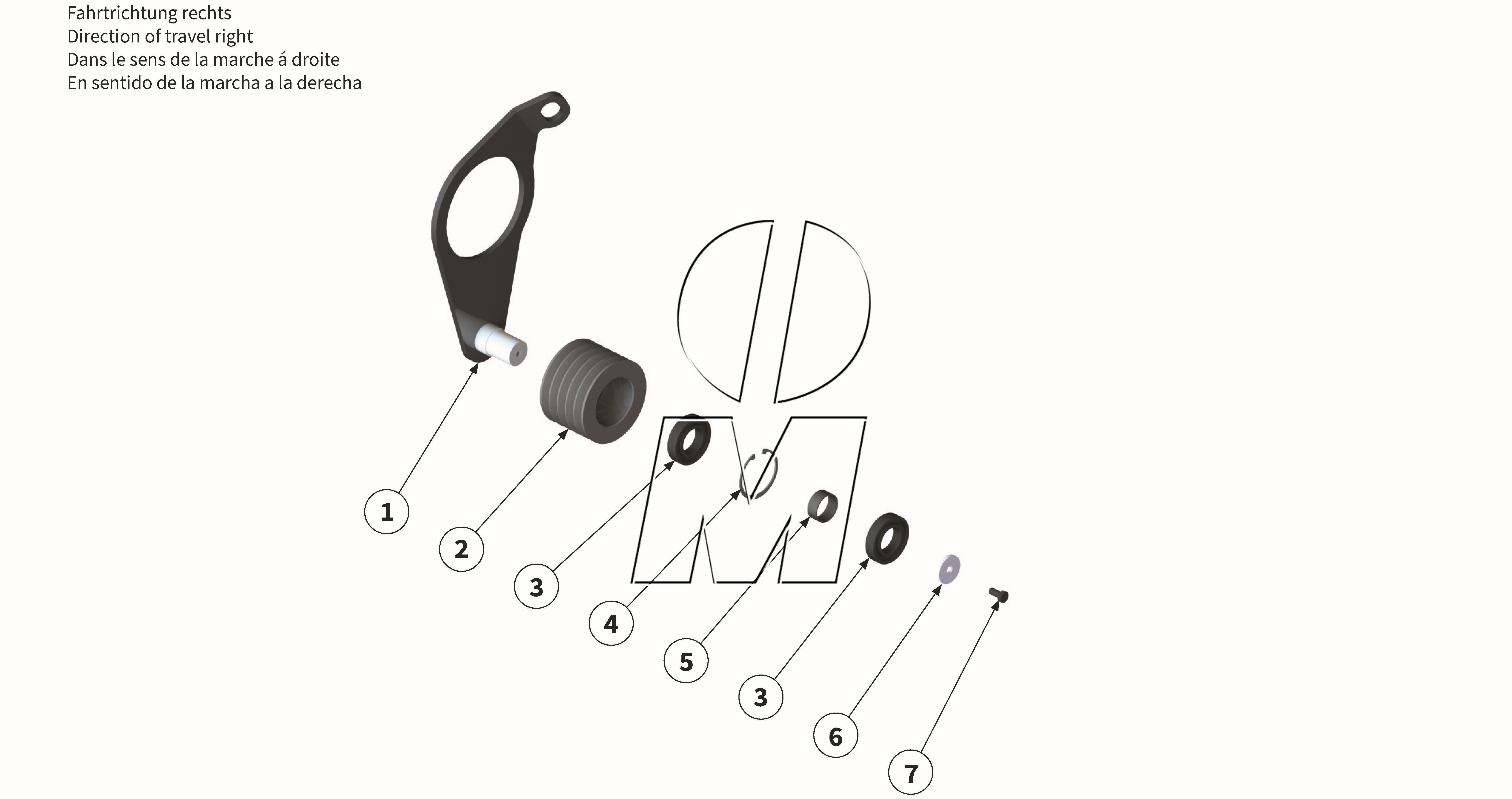

Exploded view 13: Belt tensioner right parts (P_MF_ET_24_WEL)

Exploded view 13: Belt tensioner right parts Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
13
96222413

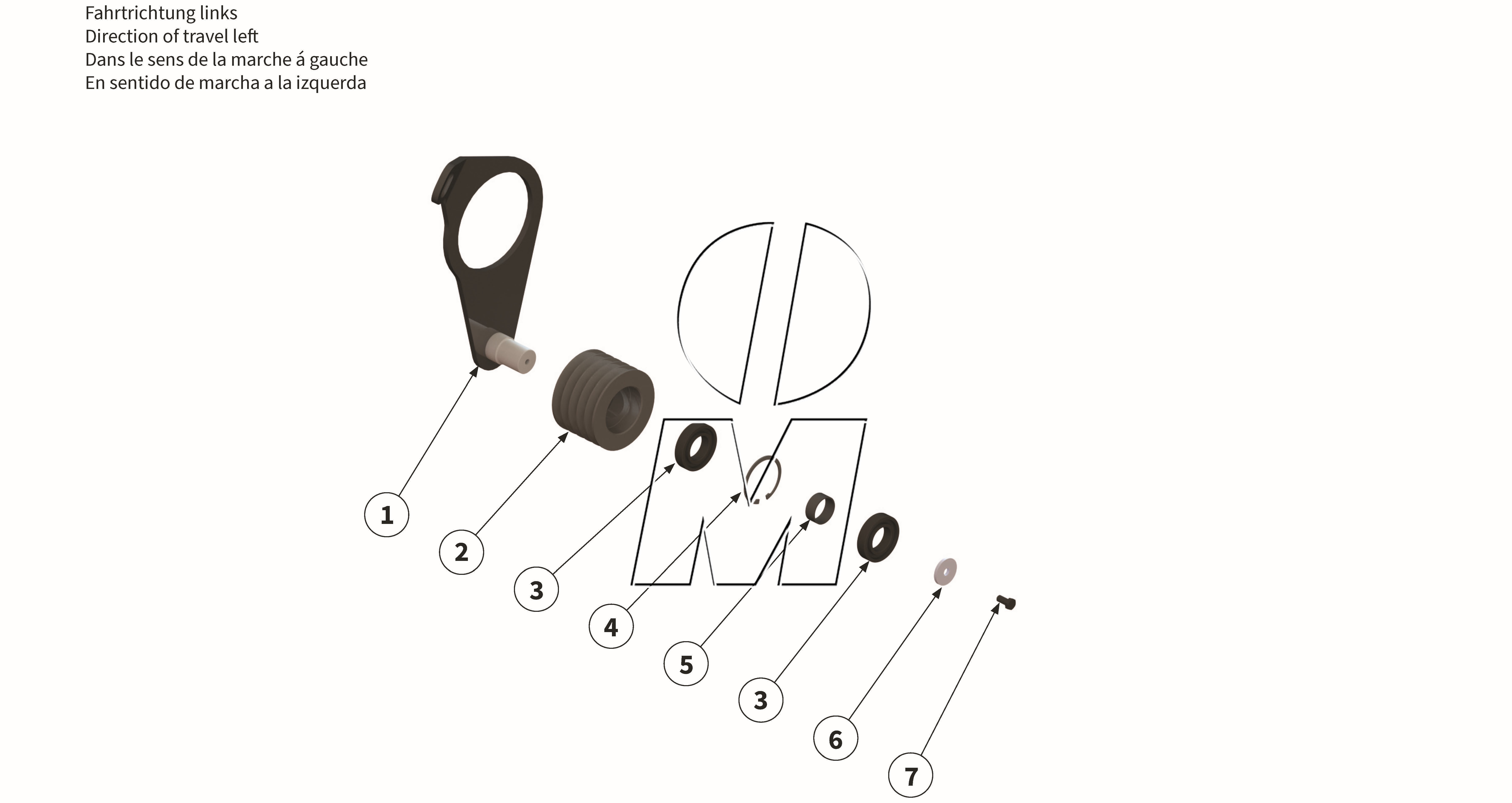

Exploded view 14: Belt tensioner left parts (P_MF_ET_24_WEL)

Exploded view 14: Belt tensioner left parts Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
14
96222414

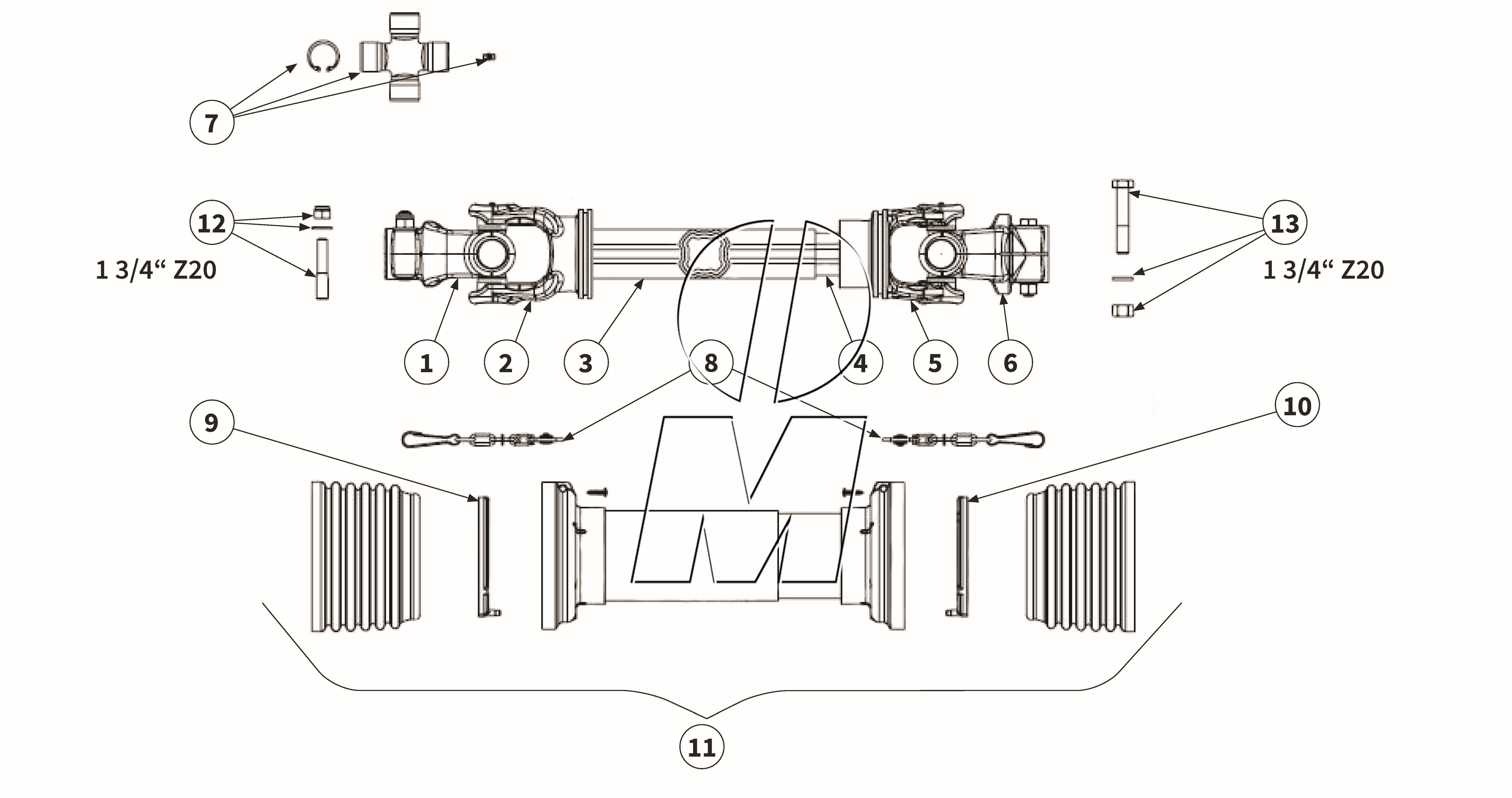

Exploded view 15: PTO shaft - DS9N096FX (P_MF_ET_24_WEL)

Exploded view 15: PTO shaft - DS9N096FX Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
15
96222415

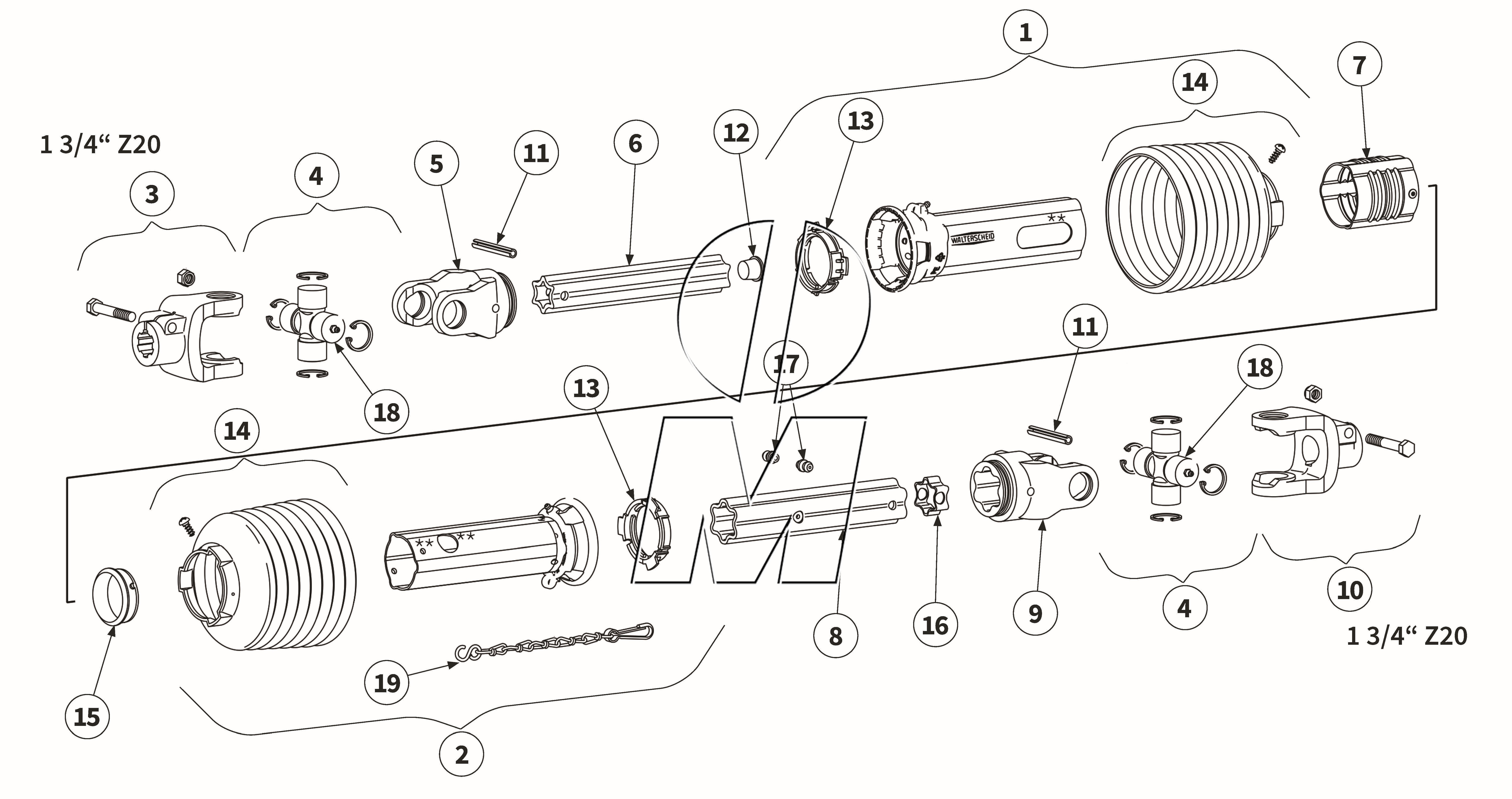

Exploded view 16: PTO shaft - 00048770 (P_MF_ET_24_WEL)

Exploded view 16: PTO shaft - 00048770 Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
16
96222416

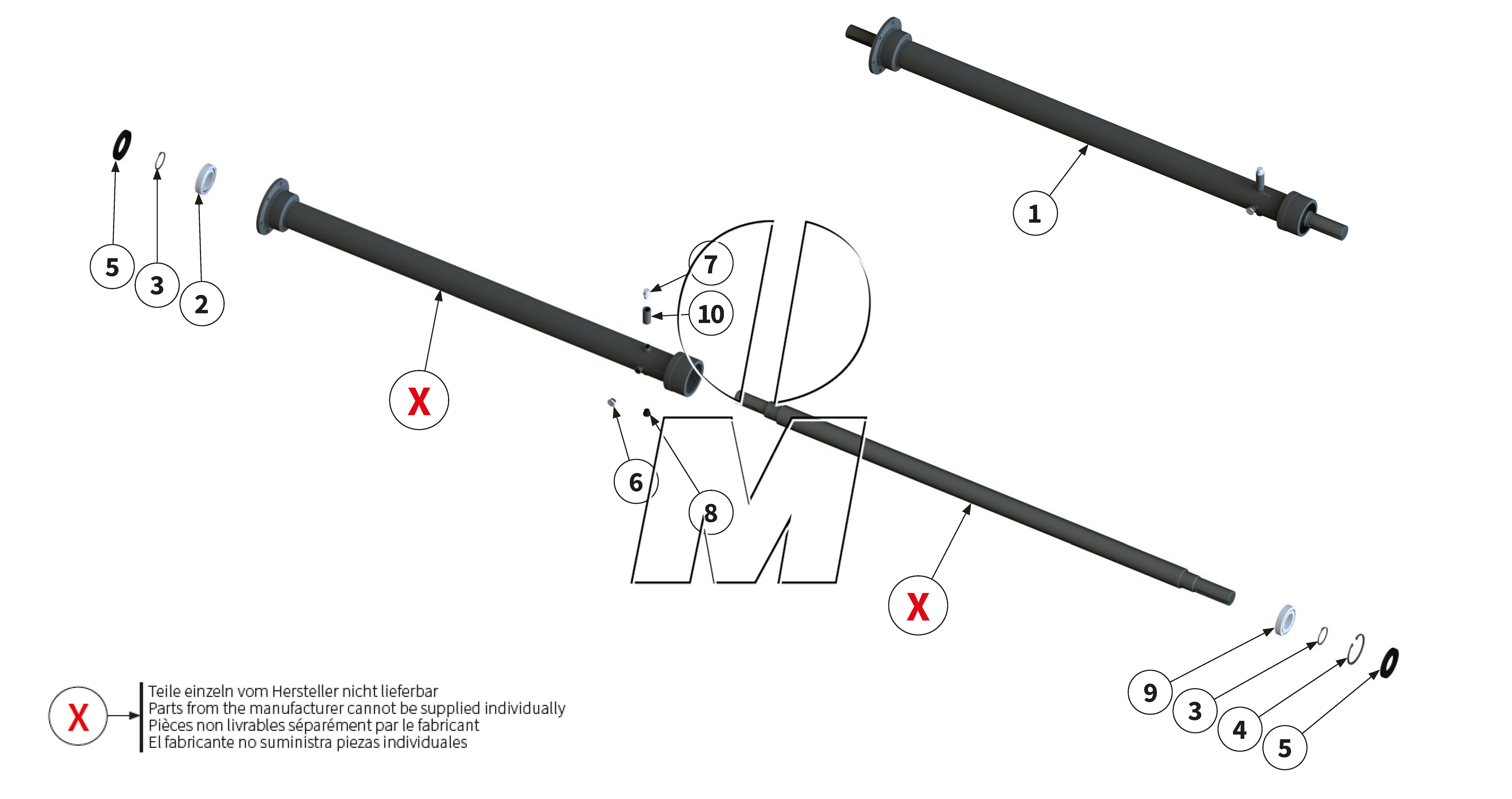

Exploded view 17: Extension shaft (P_MF_ET_24_WEL)

Exploded view 17: Extension shaft Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
17
96222417

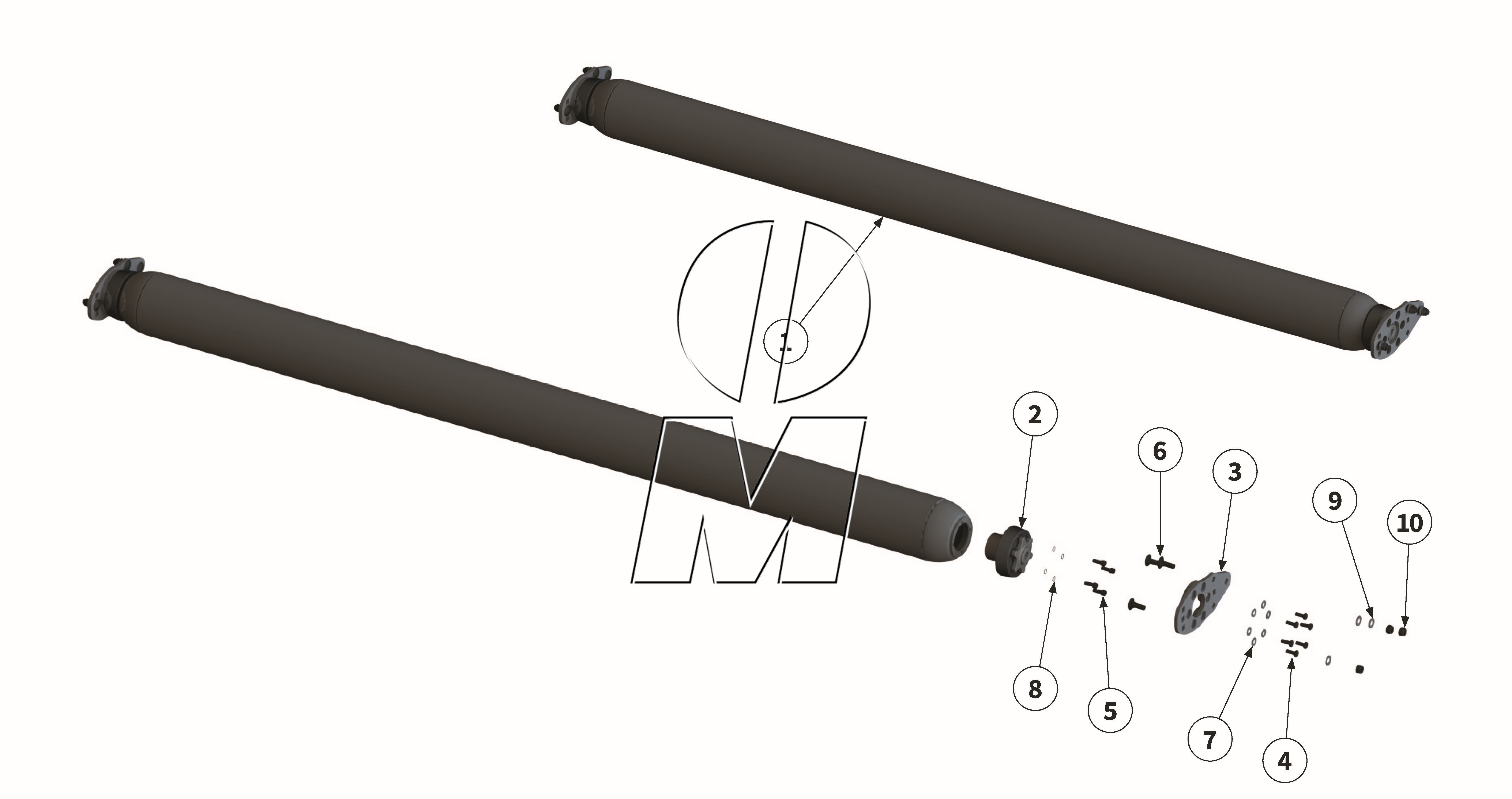

Exploded view 18: Support roller (P_MF_ET_24_WEL)

Exploded view 18: Support roller Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
18
96222418

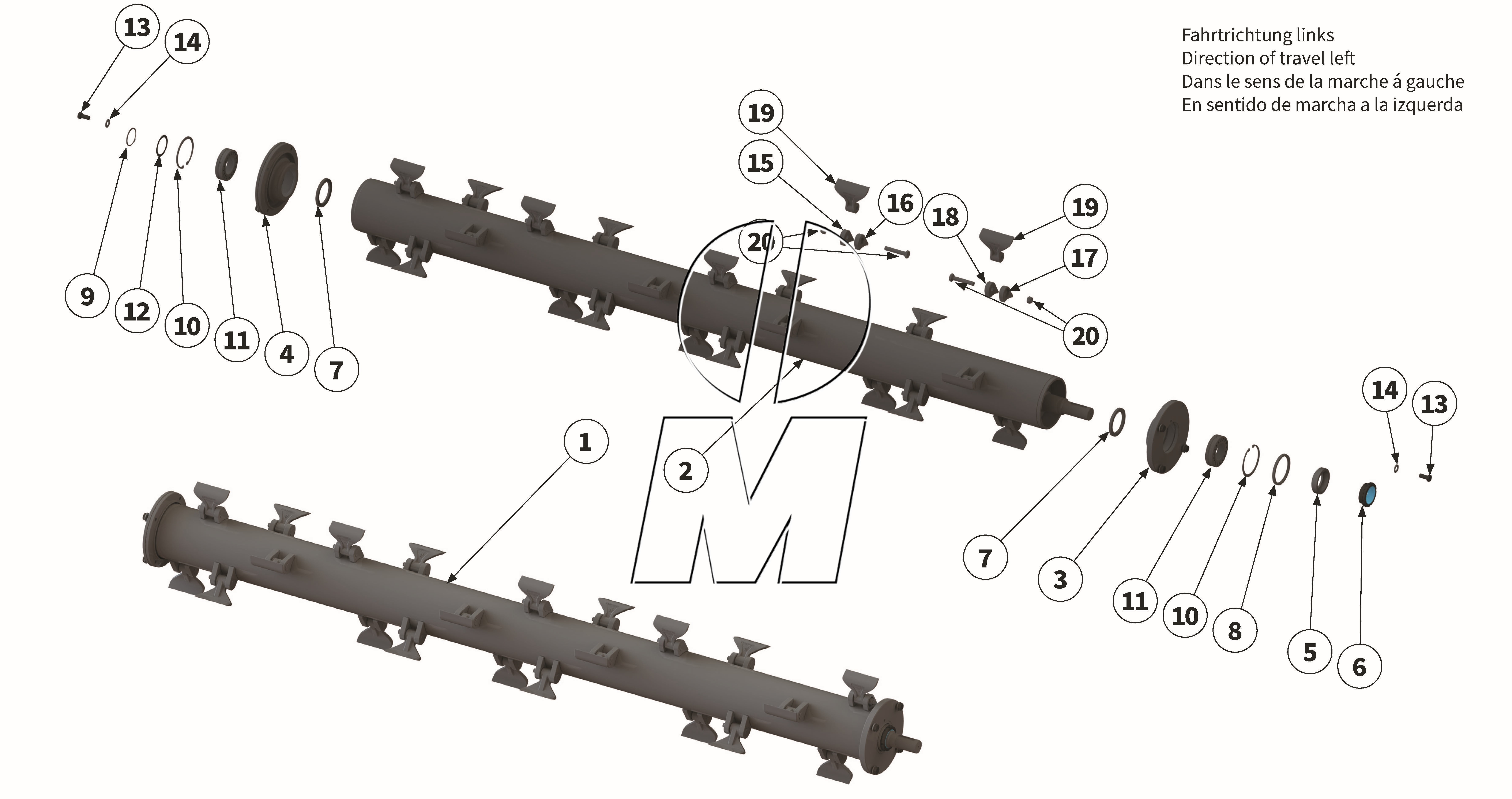

Exploded view 19: Hammer rotor left (P_MF_ET_24_WEL)

Exploded view 19: Hammer rotor left Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
19
96222419

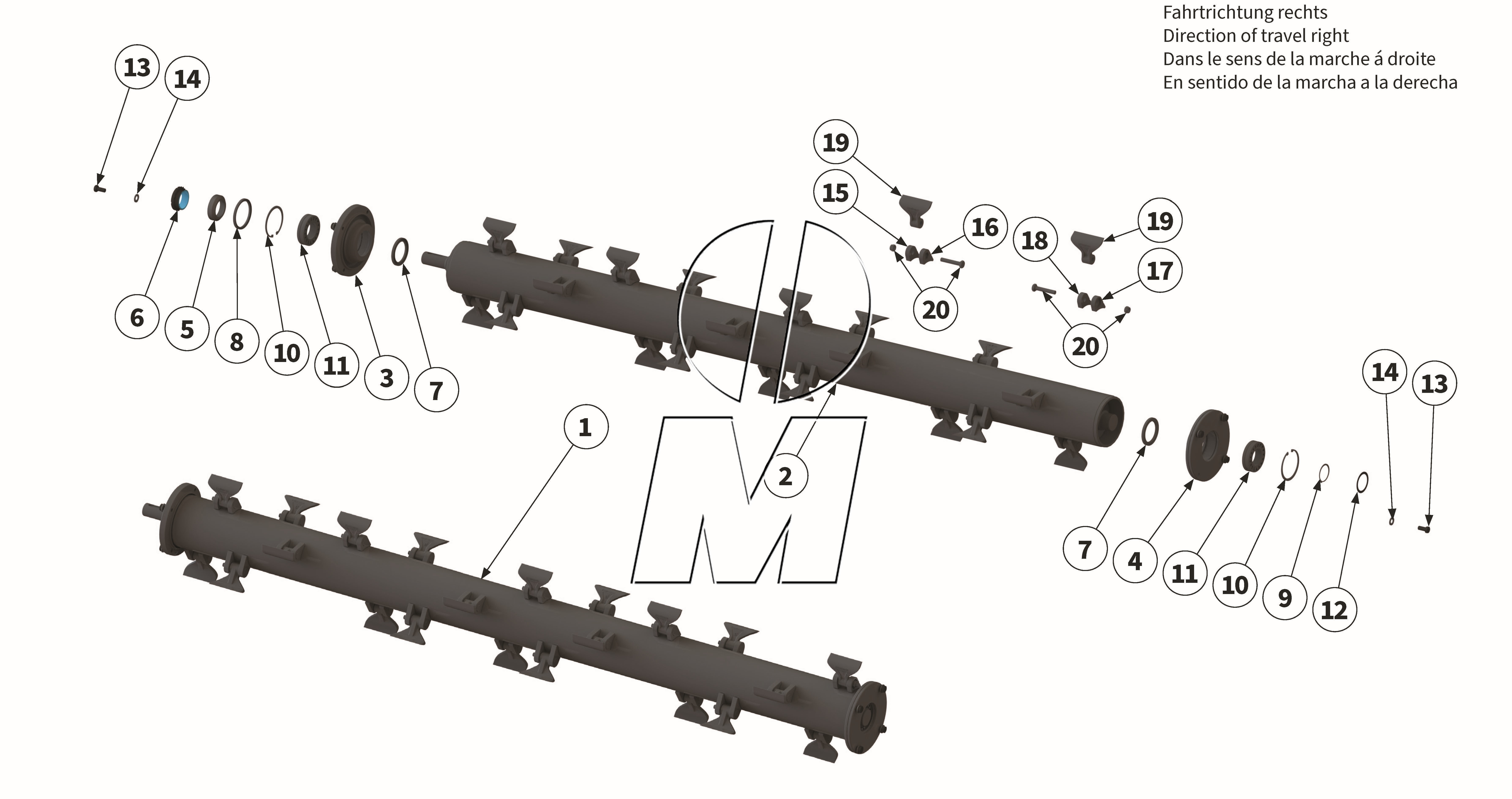

Exploded view 20: Hammer rotor right (P_MF_ET_24_WEL)

Exploded view 20: Hammer rotor right Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
20
96222420

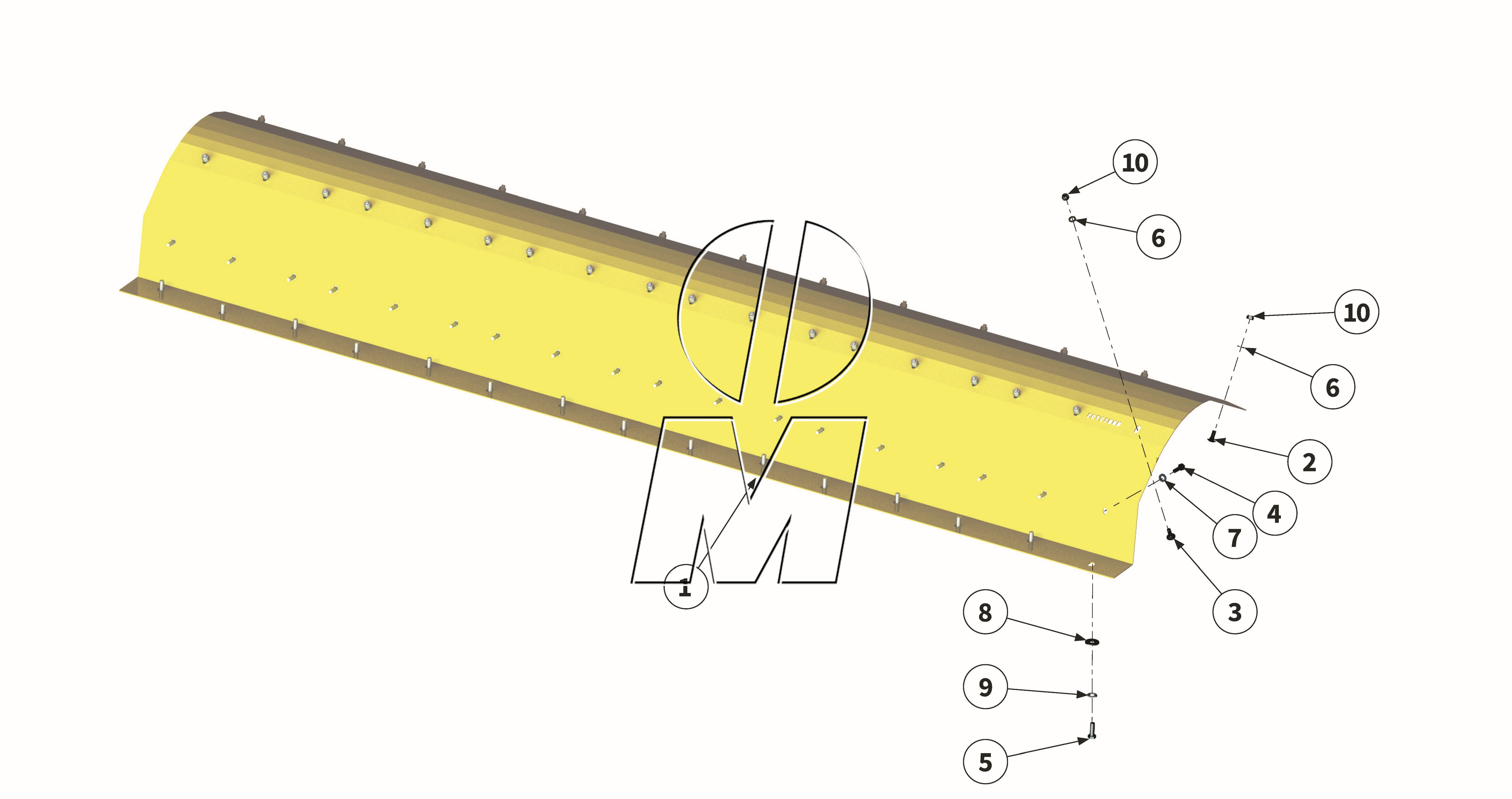

Exploded view 21: Wear insert (P_MF_ET_24_WEL)

Exploded view 21: Wear insert Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
21
96222421

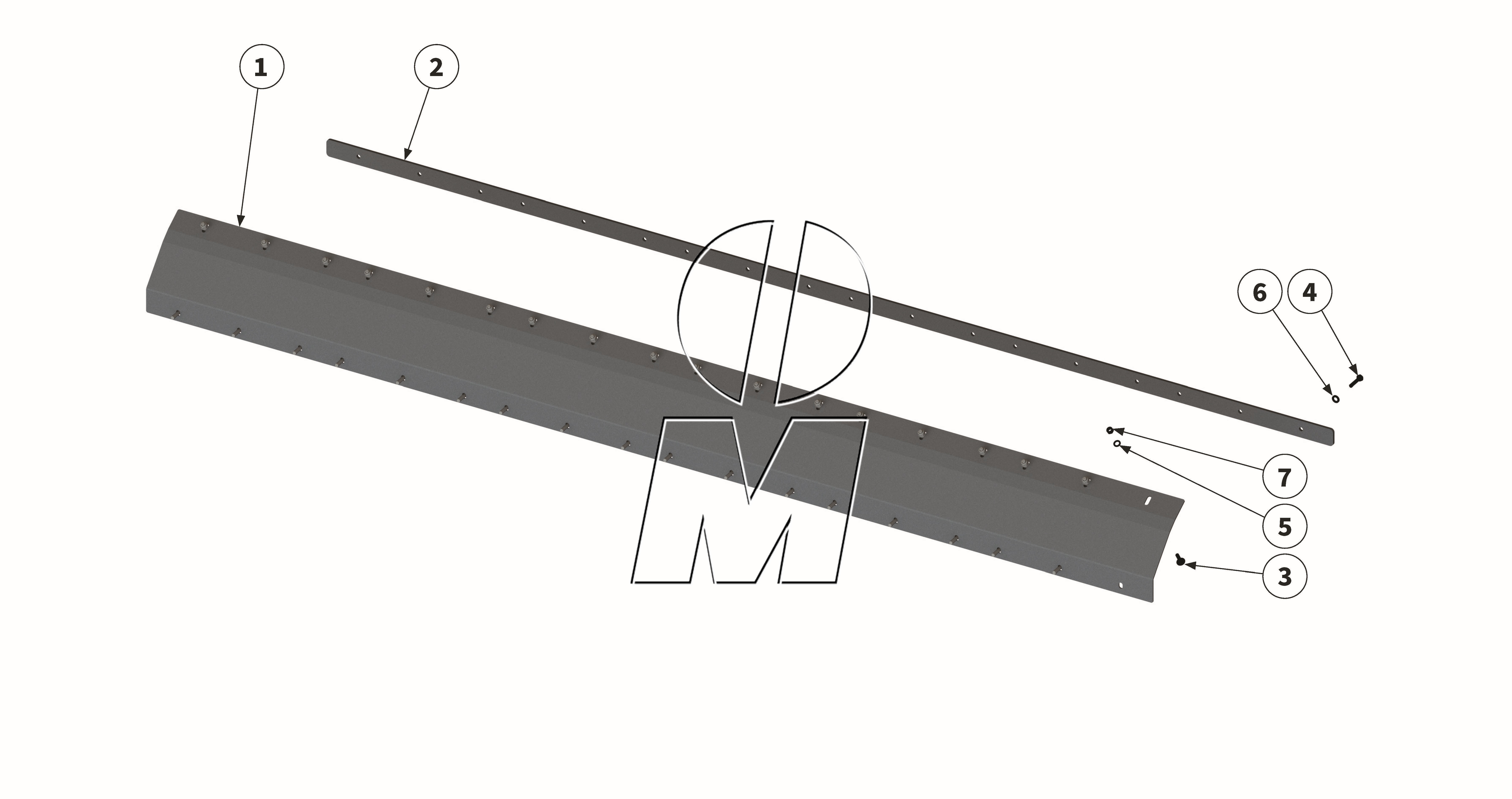

Exploded view 22: Wear insert reinforcement (P_MF_ET_24_WEL)

Exploded view 22: Wear insert reinforcement Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
22
96222422

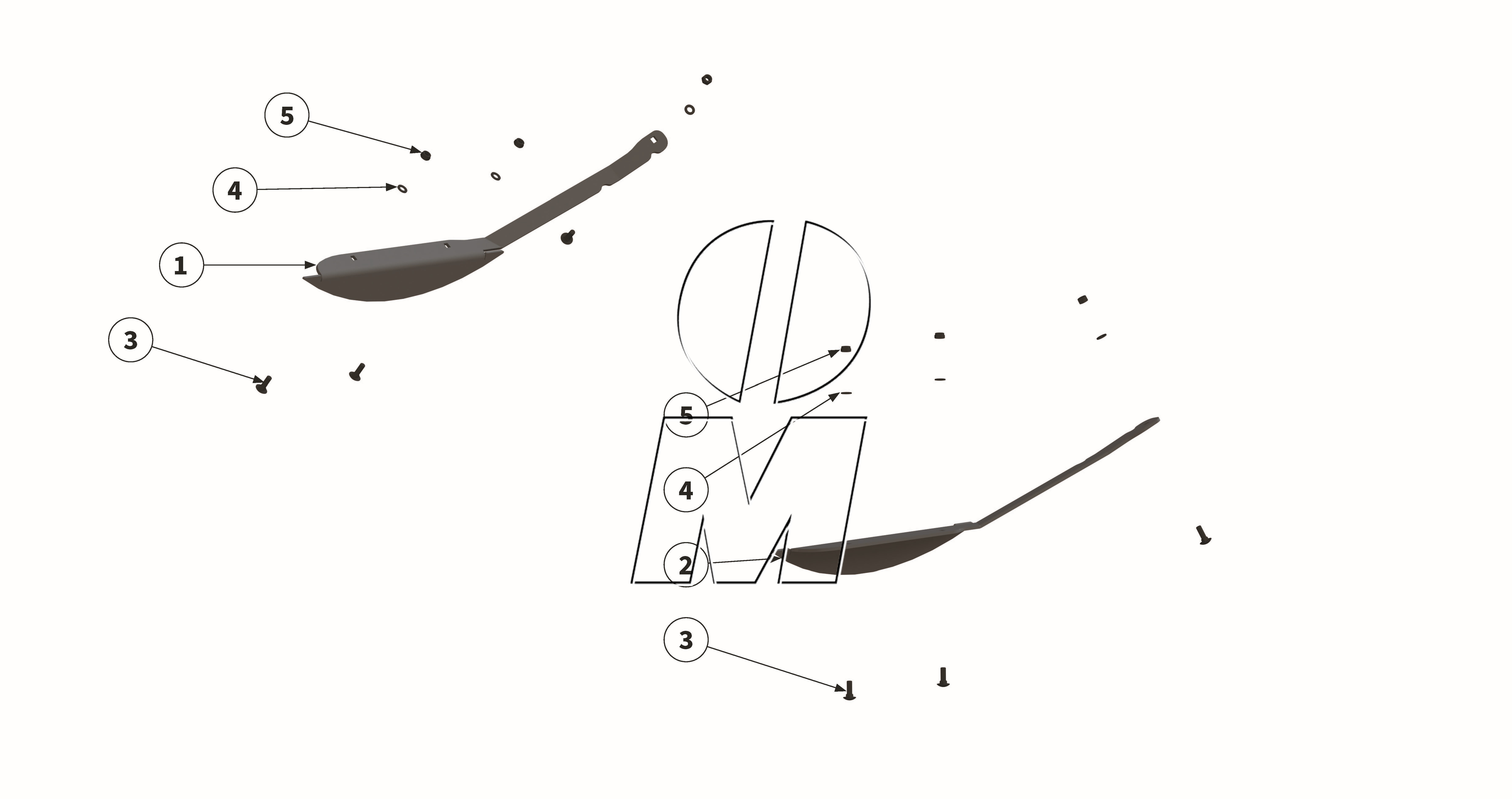

Exploded view 23: Wear runner (P_MF_ET_24_WEL)

Exploded view 23: Wear runner Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
23
96222423

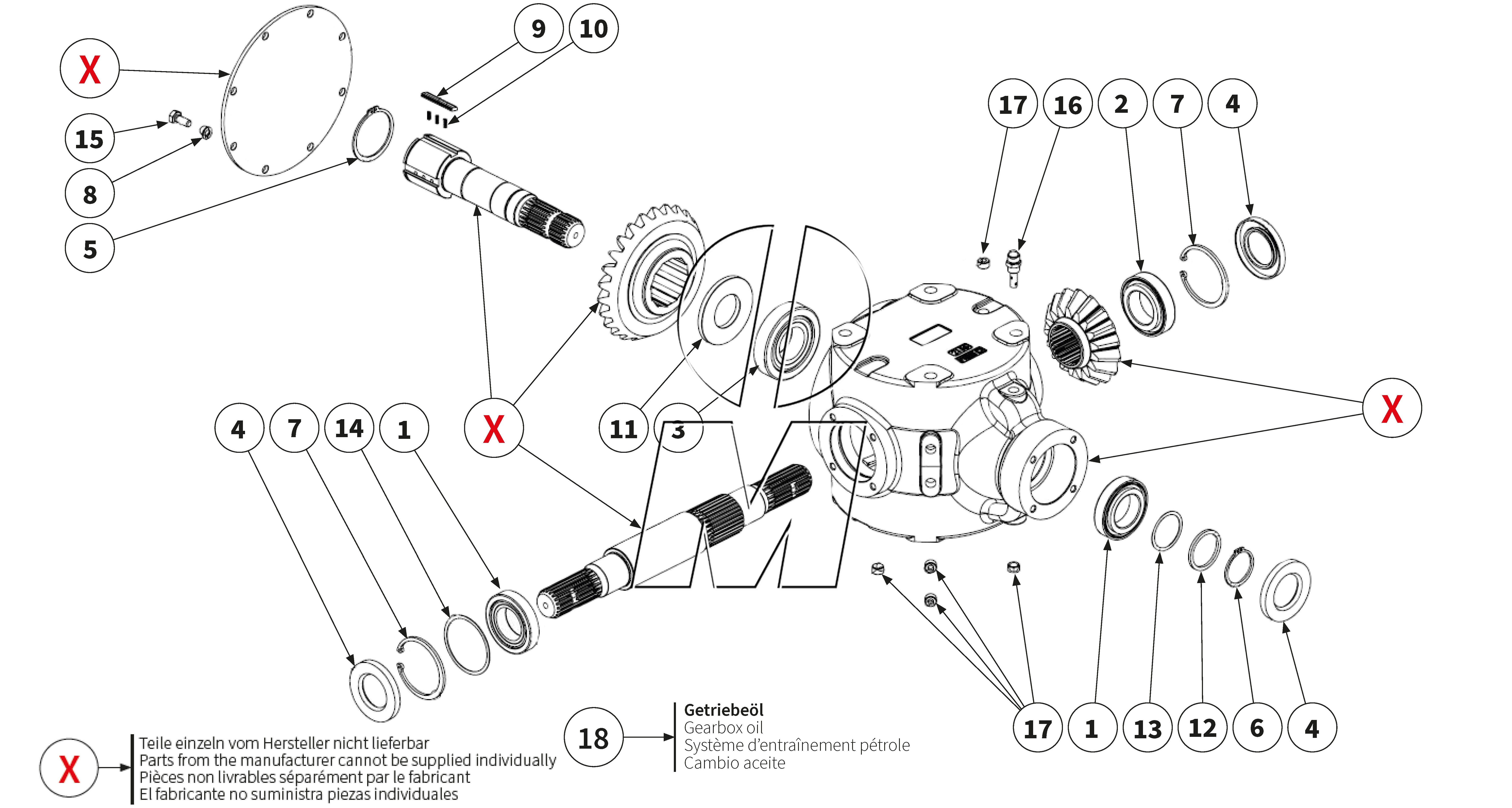

Exploded view 24: Gear box (P_MF_ET_24_WEL)

Exploded view 24: Gear box Model: MU-M/F 600 Vario As of series: 2024 Edition: 2025-03 Order code: P_MF_ET_24_WEL

MU-M/F 600 Vario
24
96222424
