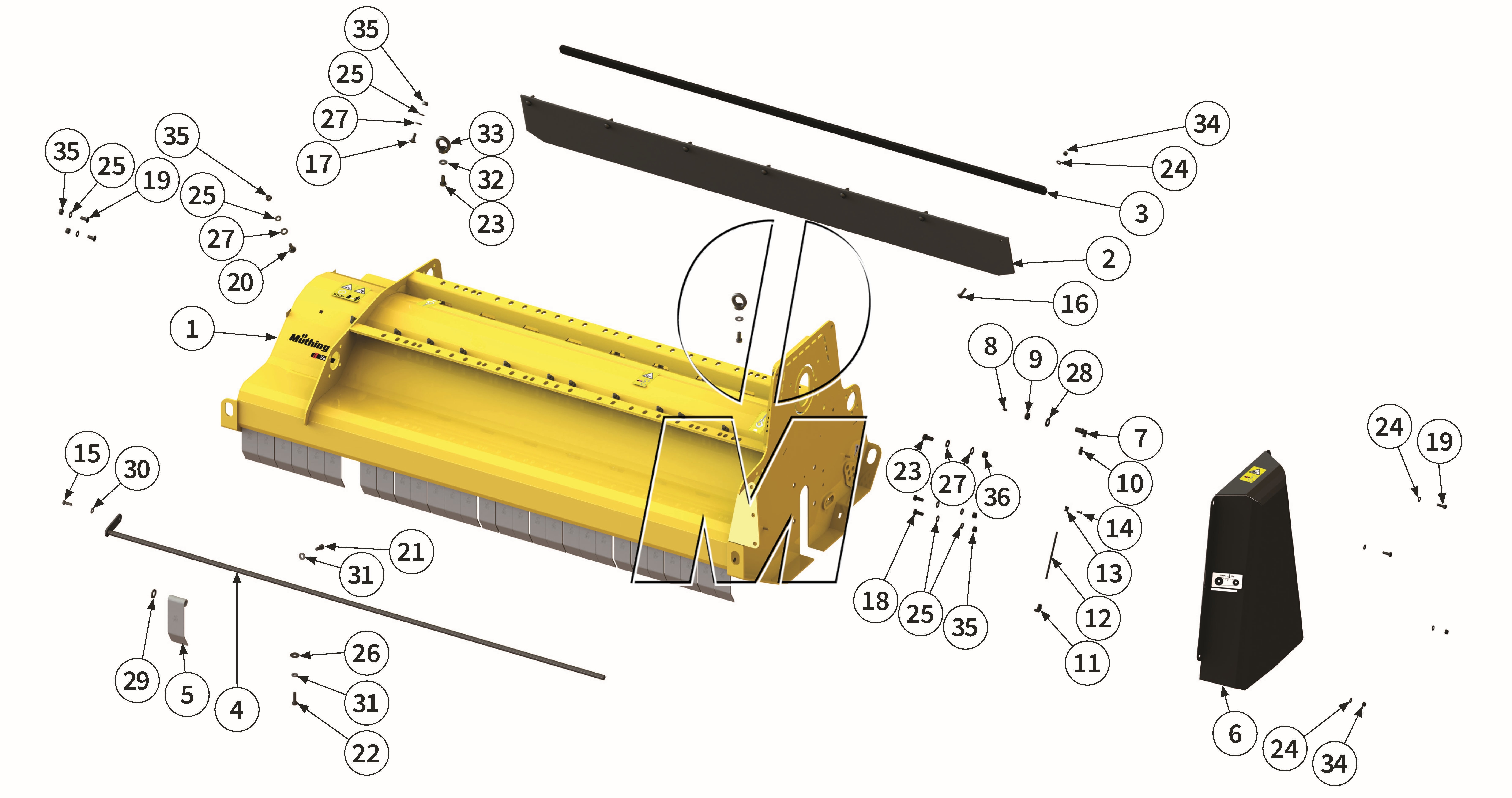

Exploded view
Exploded view 01: Housing (P_H_ET_25_WEL)
Exploded view 01: Housing
Model: MU-H Vario 120 - 220
As of series: 2025
Edition: 2025-09
Order code: P_H_ET_25_WEL
| Position | Order code Article no. |
Artikel | Working width | notice | ID No. | GPSR-Info | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 |
00013878 00013878 |
Housing | 120 | (00013878) | find it here | 1 | Details | ||
| 1 |
00013883 00013883 |
Housing | 140 | (00013883) | find it here | 1 | Details | ||
| 1 |
00013888 00013888 |
Housing | 150 | (00013888) | find it here | 1 | Details | ||
| 1 |
00013893 00013893 |
Housing | 160 | (00013893) | find it here | 1 | Details | ||
| 1 |
00013897 00013897 |
Housing | 180 | (00013897) | find it here | 1 | Details | ||
| 1 |
00013902 00013902 |
Housing | 200 | (00013902, 221772) | find it here | 1 | Details | ||
| 2 |
PO.300 40008210 |
Guard | 120-180 | Required quantity | (3209, ME1001150200breit2:1, PO.300, PO300) | find it here | 2 | Details | |
| 2 |
PO.300 40008210 |
Guard | 200+220 | Required quantity | (3209, ME1001150200breit2:1, PO.300, PO300) | find it here | 3 | Details | |
| 3 |
MUH00168 00010661 |
Support plate | 120 | (00010661, MUH00168) | find it here | 1 | Details | ||
| 3 |
MU000302 00010660 |
Support plate | 140 | (00010660, MU000302) | find it here | 1 | Details | ||
| 3 |
MUH00150 00010659 |
Support plate | 150 | (00010659, MUH00150) | find it here | 1 | Details | ||
| 3 |
MU000262 00005648 |
Support plate | 160 | (00005648, 00005649, MU000262) | find it here | 1 | Details | ||
| 3 |
MU000240 00004779 |
Support plate | 180 | (00004779, MU000240) | find it here | 1 | Details | ||
| 3 |
MU000194 00005660 |
Support plate | 200 | (00005660, MU000194) | find it here | 1 | Details | ||
| 3 |
MU000193 00006737 |
Support plate | 220 | (00006737, MU000193) | find it here | 1 | Details | ||
| 4 |
00001124 00001124 |
Pendelum shaft | 120 | (00001124, MUB00061, MUH00169) | find it here | 1 | Details | ||
| 4 |
00001374 00001374 |
Pendelum shaft | 140 | (00001374, MU0221012) | find it here | 1 | Details | ||
| 4 |
00005642 00005642 |
Pendelum shaft | 150 | (00005642, MUH00151) | find it here | 1 | Details | ||
| 4 |
00001798 00001798 |
Pendelum shaft | 160 | (00001798, MU0221011) | find it here | 1 | Details | ||
| 4 |
MU000241 00004784 |
Pendelum shaft | 180 | (00004784, 2200185699, MU000241, MU0221015) | find it here | 1 | Details | ||
| 4 |
MU000196 00005640 |
Swing shaft | 200 | (00005640, 2200186399, MU000196, MU0221016) | find it here | 1 | Details | ||
| 4 |
MU000195 00005638 |
Swing shaft | 220 | (00005638, 2200186999, MU000195) | find it here | 1 | Details | ||
| 5 |
MU000313-1 00001058 |
Flap with swing protection | 120 | (00001058, MU000313, MU0003131) | find it here | 19 | Details | ||
| 5 |
MU000313-1 00001058 |
Flap with swing protection | 140 | (00001058, MU000313, MU0003131) | find it here | 23 | Details | ||
| 5 |
MU000313-1 00001058 |
Flap with swing protection | 150 | (00001058, MU000313, MU0003131) | find it here | 24 | Details | ||
| 5 |
MU000313-1 00001058 |
Flap with swing protection | 160 | (00001058, MU000313, MU0003131) | find it here | 26 | Details | ||
| 5 |
MU000313-1 00001058 |
Flap with swing protection | 180 | (00001058, MU000313, MU0003131) | find it here | 29 | Details | ||
| 5 |
MU000313-1 00001058 |
Flap with swing protection | 200 | (00001058, MU000313, MU0003131) | find it here | 33 | Details | ||
| 5 |
MU000313-1 00001058 |
Flap with swing protection | 220 | (00001058, MU000313, MU0003131) | find it here | 36 | Details | ||
| 6 |
00014413 00014413 |
Protective cover | 120-220 | (00014413) | find it here | 1 | Details | ||
| 7 |
00017522 00017522 |
Elbow connector | 120-220 | (00017522) | find it here | 1 | Details | ||
| 8 |
MU980700 00043301 |
Lubricating nipple | 120-220 | (00043301) | find it here | 2 | Details | ||
| 9 |
MU980521 00043172 |
Nut | 120-220 | (00043172, MU980521) | find it here | 1 | Details | ||
| 10 |
MULI0002 00044548 |
Threaded connection | 120-220 | (00002197, 00044548, MULI0002) | find it here | 1 | Details | ||
| 11 |
MULI0006 00044550 |
Threaded connection | 120-220 | (00002259, 00044550, MULI0006) | find it here | 1 | Details | ||
| 12 |
MULI0005 00044936 |
Lubrication line | 120-220 | Required quantity | (00044936, 504360412, MULI0005) | find it here | 1 | Details | |
| 13 |
MUMG0005 00044539 |
Clamp | 120-220 | (00044539, MUMG0005) | find it here | 1 | Details | ||
| 14 |
00015087 00015087 |
Pop rivet | 120-220 | (00015087, MUMG0004) | find it here | 1 | Details | ||
| 15 |
MU980109 00043709 |
Bolt | 120-220 | (00043709, 6031267, MU980109, MU980113) | find it here | 3 | Details | ||
| 16 |
MU980121 00043357 |
Bolt | 120+140 | (00000914, 00043357, MU0099985, MU980121) | find it here | 6 | Details | ||
| 16 |
MU980121 00043357 |
Bolt | 150-180 | (00000914, 00043357, MU0099985, MU980121) | find it here | 7 | Details | ||
| 16 |
MU980121 00043357 |
Bolt | 200 | (00000914, 00043357, MU0099985, MU980121) | find it here | 8 | Details | ||
| 16 |
MU980121 00043357 |
Bolt | 220 | (00000914, 00043357, MU0099985, MU980121) | find it here | 9 | Details | ||
| 17 |
00000903 00000903 |
Bolt | 120 | (00000903, MU980211) | find it here | 8 | Details | ||
| 17 |
00000903 00000903 |
Bolt | 140 | (00000903, MU980211) | find it here | 10 | Details | ||
| 17 |
00000903 00000903 |
Bolt | 150 | (00000903, MU980211) | find it here | 19 | Details | ||
| 17 |
00000903 00000903 |
Bolt | 160 | (00000903, MU980211) | find it here | 11 | Details | ||
| 17 |
00000903 00000903 |
Bolt | 180 | (00000903, MU980211) | find it here | 13 | Details | ||
| 17 |
00000903 00000903 |
Bolt | 200 | (00000903, MU980211) | find it here | 14 | Details | ||
| 17 |
00000903 00000903 |
Bolt | 220 | (00000903, MU980211) | find it here | 16 | Details | ||
| 18 |
MU980208 00043601 |
Bolt | 120-220 | (00043601, MU0099974, MU623016, MU980208) | find it here | 2 | Details | ||
| 19 |
MU981247 00043368 |
Bolt | 120-200 | (00043368, MU981247) | find it here | 2 | Details | ||
| 20 |
00000904 00000904 |
Bolt | 120 | (00000904, MU980214) | find it here | 8 | Details | ||
| 20 |
00000904 00000904 |
Bolt | 140+150 | (00000904, MU980214) | find it here | 10 | Details | ||
| 20 |
00000904 00000904 |
Bolt | 160 | (00000904, MU980214) | find it here | 11 | Details | ||
| 20 |
00000904 00000904 |
Bolt | 180 | (00000904, MU980214) | find it here | 13 | Details | ||
| 20 |
00000904 00000904 |
Bolt | 200 | (00000904, MU980214) | find it here | 14 | Details | ||
| 20 |
00000904 00000904 |
Bolt | 220 | (00000904, MU980214) | find it here | 16 | Details | ||
| 21 |
MU980205 00043602 |
Bolt | 120 | (00043602, MU0099971, MU980205) | find it here | 8 | Details | ||
| 21 |
MU980205 00043602 |
Bolt | 140+150 | (00043602, MU0099971, MU980205) | find it here | 10 | Details | ||
| 21 |
MU980205 00043602 |
Bolt | 160 | (00043602, MU0099971, MU980205) | find it here | 11 | Details | ||
| 21 |
MU980205 00043602 |
Bolt | 180 | (00043602, MU0099971, MU980205) | find it here | 13 | Details | ||
| 21 |
MU980205 00043602 |
Bolt | 200 | (00043602, MU0099971, MU980205) | find it here | 14 | Details | ||
| 21 |
MU980205 00043602 |
Bolt | 220 | (00043602, MU0099971, MU980205) | find it here | 16 | Details | ||
| 22 |
MU980222 00043603 |
Bolt | 120+140 | (00001346, 00043603, MU0099903, MU980222) | find it here | 8 | Details | ||
| 22 |
MU980222 00043603 |
Bolt | 150-180 | (00001346, 00043603, MU0099903, MU980222) | find it here | 10 | Details | ||
| 22 |
MU980222 00043603 |
Bolt | 200+220 | (00001346, 00043603, MU0099903, MU980222) | find it here | 12 | Details | ||
| 23 |
MU980341 00043619 |
Bolt | 120-220 | (00043619, MU0099942, MU980305, MU980341) | find it here | 3 | Details | ||
| 24 |
MU0099999 00043249 |
Washer | 120+140 | (00043249, MU0099999, MU980102) | find it here | 12 | Details | ||
| 24 |
MU0099999 00043249 |
Washer | 150-180 | (00043249, MU0099999, MU980102) | find it here | 13 | Details | ||
| 24 |
MU0099999 00043249 |
Washer | 200 | (00043249, MU0099999, MU980102) | find it here | 14 | Details | ||
| 24 |
MU0099999 00043249 |
Washer | 220 | (00043249, MU0099999, MU980102) | find it here | 15 | Details | ||
| 25 |
MU980202 00043232 |
Washer | 120 | (00001223, 00043232, MU980202) | find it here | 22 | Details | ||
| 25 |
MU980202 00043232 |
Washer | 140+150 | (00001223, 00043232, MU980202) | find it here | 26 | Details | ||
| 25 |
MU980202 00043232 |
Washer | 160 | (00001223, 00043232, MU980202) | find it here | 28 | Details | ||
| 25 |
MU980202 00043232 |
Washer | 180 | (00001223, 00043232, MU980202) | find it here | 32 | Details | ||
| 25 |
MU980202 00043232 |
Washer | 200 | (00001223, 00043232, MU980202) | find it here | 34 | Details | ||
| 25 |
MU980202 00043232 |
Washer | 220 | (00001223, 00043232, MU980202) | find it here | 36 | Details | ||
| 26 |
MU0099950 00043281 |
Washer | 120+140 | (00043281, MU0099950) | find it here | 8 | Details | ||
| 26 |
MU0099950 00043281 |
Washer | 150-180 | (00043281, MU0099950) | find it here | 10 | Details | ||
| 26 |
MU0099950 00043281 |
Washer | 200+220 | (00043281, MU0099950) | find it here | 12 | Details | ||
| 27 |
MU980302 00043233 |
Washer | 120 | (00043233, MU0099997, MU980302) | find it here | 18 | Details | ||
| 27 |
MU980302 00043233 |
Washer | 140+150 | (00043233, MU0099997, MU980302) | find it here | 22 | Details | ||
| 27 |
MU980302 00043233 |
Washer | 160 | (00043233, MU0099997, MU980302) | find it here | 24 | Details | ||
| 27 |
MU980302 00043233 |
Washer | 180 | (00043233, MU0099997, MU980302) | find it here | 28 | Details | ||
| 27 |
MU980302 00043233 |
Washer | 200 | (00043233, MU0099997, MU980302) | find it here | 30 | Details | ||
| 27 |
MU980302 00043233 |
Washer | 220 | (00043233, MU0099997, MU980302) | find it here | 34 | Details | ||
| 28 |
MU980502 00043234 |
Washer | 120-220 | (00043234, MU980502) | find it here | 1 | Details | ||
| 29 |
MU980402 00043235 |
Washer | 120+150+180 | (00043235, MU0099996, MU980402) | find it here | 14 | Details | ||
| 29 |
MU980402 00043235 |
Washer | 140+200 | (00043235, MU0099996, MU980402) | find it here | 2 | Details | ||
| 29 |
MU980402 00043235 |
Washer | 160 | (00043235, MU0099996, MU980402) | find it here | 8 | Details | ||
| 29 |
MU980402 00043235 |
Washer | 220 | (00043235, MU0099996, MU980402) | find it here | 10 | Details | ||
| 30 |
MUNSKL08 00043771 |
Washer | 120-220 | (00012354, 00043771, MUNSKL08) | find it here | 1 | Details | ||
| 31 |
MUNSKL10 00043766 |
Washer | 120 | (00012350, 00043766, MUNSKL10) | find it here | 16 | Details | ||
| 31 |
MUNSKL10 00043766 |
Washer | 140 | (00012350, 00043766, MUNSKL10) | find it here | 18 | Details | ||
| 31 |
MUNSKL10 00043766 |
Washer | 150 | (00012350, 00043766, MUNSKL10) | find it here | 20 | Details | ||
| 31 |
MUNSKL10 00043766 |
Washer | 160 | (00012350, 00043766, MUNSKL10) | find it here | 21 | Details | ||
| 31 |
MUNSKL10 00043766 |
Washer | 180 | (00012350, 00043766, MUNSKL10) | find it here | 23 | Details | ||
| 31 |
MUNSKL10 00043766 |
Washer | 200 | (00012350, 00043766, MUNSKL10) | find it here | 26 | Details | ||
| 31 |
MUNSKL10 00043766 |
Washer | 220 | (00012350, 00043766, MUNSKL10) | find it here | 28 | Details | ||
| 32 |
MUNSKL12 00043767 |
Washer | 120-220 | (00012351, 00043767, MUNSKL12) | find it here | 2 | Details | ||
| 33 |
MU981195 00043145 |
Ring nut | 120-220 | (00043145, MU3200004, MU981195) | find it here | 2 | Details | ||
| 34 |
MU0099961 00043191 |
Nut | 120+140 | (00043191, MU0099961, MU7T1018, MU980101) | find it here | 10 | Details | ||
| 34 |
MU0099961 00043191 |
Nut | 150-180 | (00043191, MU0099961, MU7T1018, MU980101) | find it here | 11 | Details | ||
| 34 |
MU0099961 00043191 |
Nut | 200 | (00043191, MU0099961, MU7T1018, MU980101) | find it here | 20 | Details | ||
| 34 |
MU0099961 00043191 |
Nut | 220 | (00043191, MU0099961, MU7T1018, MU980101) | find it here | 13 | Details | ||
| 35 |
MU0099960 00043177 |
Nut | 120 | (00043177, MU0099960) | find it here | 28 | Details | ||
| 35 |
MU0099960 00043177 |
Nut | 140+150 | (00043177, MU0099960) | find it here | 24 | Details | ||
| 35 |
MU0099960 00043177 |
Nut | 160 | (00043177, MU0099960) | find it here | 26 | Details | ||
| 35 |
MU0099960 00043177 |
Nut | 180 | (00043177, MU0099960) | find it here | 30 | Details | ||
| 35 |
MU0099960 00043177 |
Nut | 200 | (00043177, MU0099960) | find it here | 32 | Details | ||
| 35 |
MU0099960 00043177 |
Nut | 220 | (00043177, MU0099960) | find it here | 34 | Details | ||
| 36 |
MU980301 00043178 |
Nut | 120-220 | (00043178, MU0099957, MU980301) | find it here | 1 | Details |
- Artikel ist vorrätig
- Artikel beim Lieferanten bereits bestellt
- Besorgungsware, besondere Bedingungen beachten
- Artikel nicht vorrätig, i.d.R. kurzfristig lieferbar
- Artikel beim Lieferanten bereits bestellt
- Besorgungsware, besondere Bedingungen beachten
- Artikel nicht vorrätig, i.d.R. kurzfristig lieferbar
