Exploded view

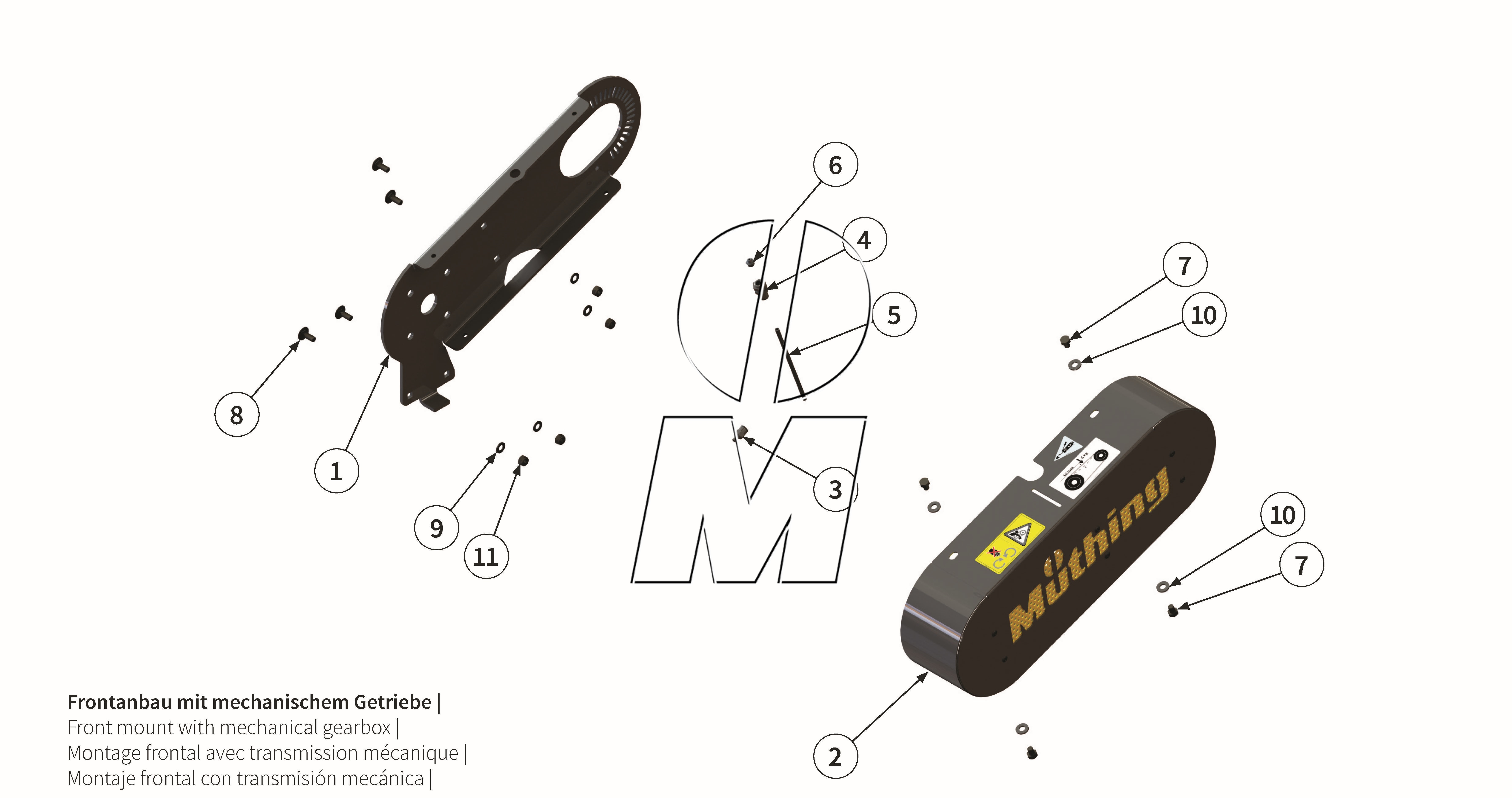

Exploded view 03: Front side panel (P_C_ET_24_WEL_FR-HY)
Exploded view 03: Front side panel
Model: MU-C FR-HY 100 - 160
As of series: 2024
Edition: 2026-02
Order code: P_C_ET_24_WEL_FR-HY
| Position | Order code Article no. |
Artikel | Working width | notice | ID No. | GPSR-Info | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 |
MU0510031 00004067 |
Belt guard holder | 100-160 | (00004067, MU0510031) | find it here | 1 | Details | ||
| 2 |
00004070 00041023 |
Protective cover | 100-160 | (00041023) | find it here | 1 | Details | ||
| 3 |
MULI0001 00044547 |
Threaded connection | 100-160 | (00001142, 00044547, MULI0001) | find it here | 1 | Details | ||
| 4 |
MULI0003 00044549 |
Threaded connection | 100-160 | (00001143, 00044549, MULI0003) | find it here | 1 | Details | ||
| 5 |
MULI0005 00044936 |
Lubrication line | 100-160 | Required quantity | (00044936, 504360412, MULI0005) | find it here | 1 | Details | |
| 6 |
00043303 00043303 |
Lubricating nipple | 100-160 | (00043303) | find it here | 1 | Details | ||
| 7 |
MU980127 00043702 |
Bolt | 100-160 | (00043702, MU980127) | find it here | 4 | Details | ||
| 8 |
MU980107 00043354 |
Bolt | 100-160 | (00043354, MU0099989, MU980107) | find it here | 4 | Details | ||
| 9 |
MU0099999 00043249 |
Washer | 100-160 | (00043249, MU0099999, MU980102) | find it here | 4 | Details | ||
| 10 |
MUNSKL08 00043771 |
Washer | 100-160 | (00012354, 00043771, MUNSKL08) | find it here | 4 | Details | ||
| 11 |
MU0099961 00043191 |
Nut | 100-160 | (00043191, MU0099961, MU7T1018, MU980101) | find it here | 4 | Details |
