Exploded view

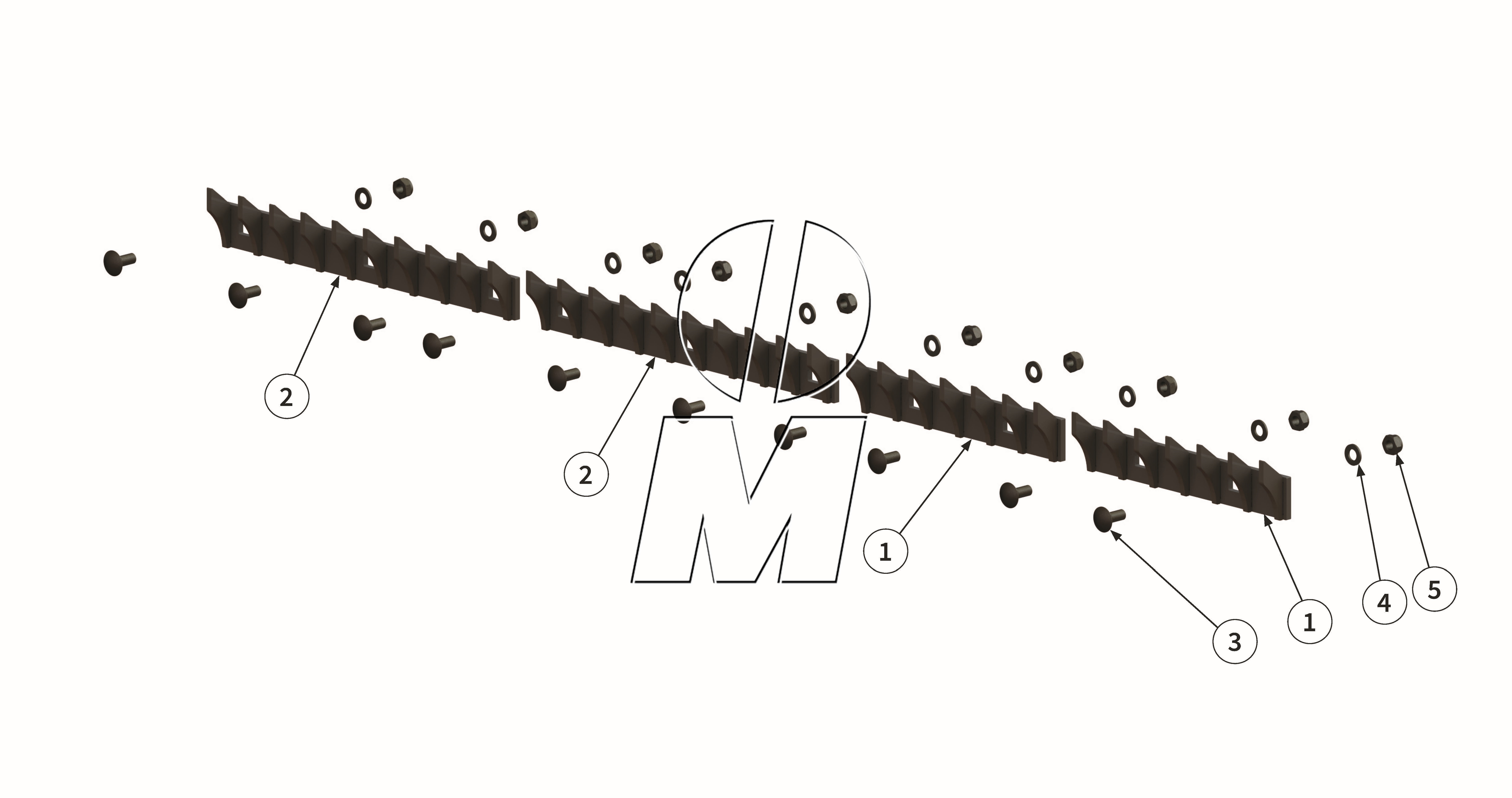

Exploded view 05: Short chopping bar (P_C_ET_24_WEL_FR-HY)
Exploded view 05: Short chopping bar
Model: MU-C FR-HY 100 - 160
As of series: 2024
Edition: 2026-02
Order code: P_C_ET_24_WEL_FR-HY
| Position | Order code Article no. |
Artikel | Working width | notice | ID No. | GPSR-Info | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 |
00005472 00005472 |
Short chopping bar 300 | 100+140 | Machine with Shackle rotor | (00005472) | find it here | 2 | Details | |
| 2 |
00005474 00005474 |
Short chopping bar 400 | 100 | Machine with Shackle rotor | (00005474) | find it here | 1 | Details | |
| 2 |
00005474 00005474 |
Short chopping bar 400 | 120 | Machine with Shackle rotor | (00005474) | find it here | 3 | Details | |
| 2 |
00005474 00005474 |
Short chopping bar 400 | 140 | Machine with Shackle rotor | (00005474) | find it here | 2 | Details | |
| 2 |
00005474 00005474 |
Short chopping bar 400 | 160 | Machine with Shackle rotor | (00005474) | find it here | 4 | Details | |
| 3 |
00000903 00000903 |
Bolt | 100 | (00000903, MU980211) | find it here | 7 | Details | ||
| 3 |
00000903 00000903 |
Bolt | 120 | (00000903, MU980211) | find it here | 9 | Details | ||
| 3 |
00000903 00000903 |
Bolt | 140 | (00000903, MU980211) | find it here | 10 | Details | ||
| 3 |
00000903 00000903 |
Bolt | 160 | (00000903, MU980211) | find it here | 12 | Details | ||
| 4 |
MU980202 00043232 |
Washer | 100 | (00001223, 00043232, MU980202) | find it here | 7 | Details | ||
| 4 |
MU980202 00043232 |
Washer | 120 | (00001223, 00043232, MU980202) | find it here | 9 | Details | ||
| 4 |
MU980202 00043232 |
Washer | 140 | (00001223, 00043232, MU980202) | find it here | 10 | Details | ||
| 4 |
MU980202 00043232 |
Washer | 160 | (00001223, 00043232, MU980202) | find it here | 12 | Details | ||
| 5 |
MU0099960 00043177 |
Nut | 100 | (00043177, MU0099960) | find it here | 7 | Details | ||
| 5 |
MU0099960 00043177 |
Nut | 120 | (00043177, MU0099960) | find it here | 9 | Details | ||
| 5 |
MU0099960 00043177 |
Nut | 140 | (00043177, MU0099960) | find it here | 10 | Details | ||
| 5 |
MU0099960 00043177 |
Nut | 160 | (00043177, MU0099960) | find it here | 12 | Details |
