Exploded view 06: Drive and gear box (P_C_ET_24_WEL_FR-HY)

Go back

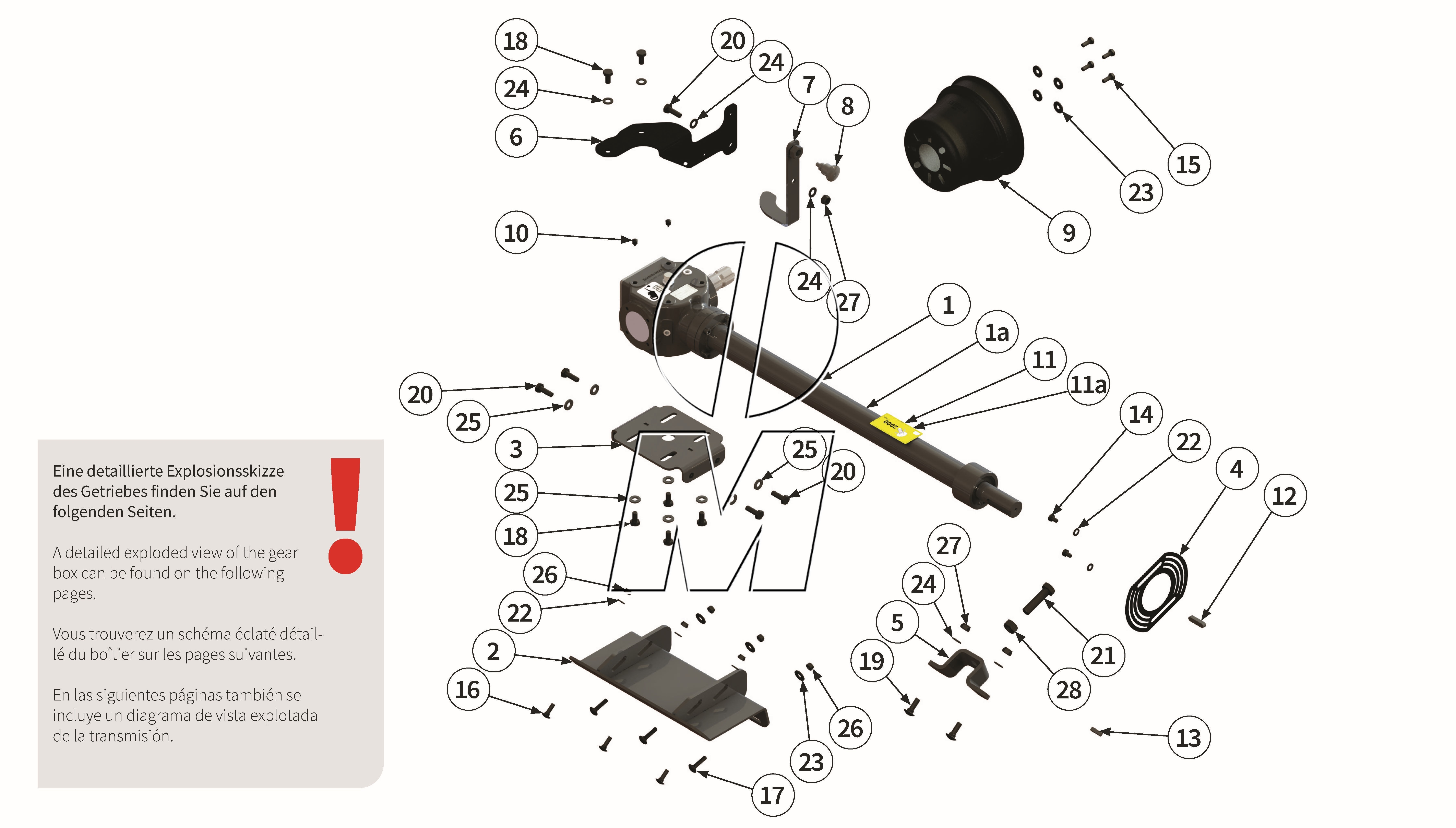

Exploded view 06: Drive and gear box
Model: MU-C FR-HY 100 - 160
As of series: 2024
Edition: 2026-02
Order code: P_C_ET_24_WEL_FR-HY

Position	Order code Article no.	Artikel	Working width	ID No.	GPSR-Info	Quantity
1	MU-C FR-HY 100 - 160 / 07 96982407	Gear box anticlockwise	100-160		find it here	1	Details
1-a	MU-C FR-HY 100 - 160 / 07 96982407	Gear box anticlockwise	100-160		find it here	1	Details
2	00009646 00009646	Gear box holder	100-160	(00009646)	find it here	1	Details
3	00015590 00015590	Sheet metal	100-160	(00015590, 226853)	find it here	1	Details
4	00003532 00003532	Cover	100-160	(00003532)	find it here	1	Details
5	00009656 00009656	Adjusting plate	100-160	(00009656)	find it here	1	Details
6	00034160 00034160	Holder	100-160	(00034160)	find it here	1	Details
7	00034162 00034162	PTO shaft holder	100-160	(00034162)	find it here	1	Details
8	00017113 00017113	Stop bolt	100-160	(00017113)	find it here	1	Details
9	MU1510160 00044552	Protective pot	100-160	(00002419, 00010204, 00044552, MU0220020, MU1510160)	find it here	1	Details
10	00035246 00035246	Sealing plug	100-160	(00035246)	find it here	2	Details
11	00043893 00043893	Label 1000	100-160	(00043893)	find it here	1	Details
12	2404073010 00043202	Parallel key	100-160	(00043202, 11121057, 2404073010)	find it here	1	Details
13	00001085 00001085	Parallel key	100-160	(00001085, MU0099953, MU0510091)	find it here	1	Details
14	00043704 00043704	Bolt	100-140	(00043704, MU980132, MU980159)	find it here	2	Details
14	00043704 00043704	Bolt	160	(00043704, MU980132, MU980159)	find it here	1	Details
15	MU980115 00043708	Bolt	100-160	(00043708, MU0099972, MU980115)	find it here	4	Details
16	MU0099988 00043355	Bolt	100-160	(00000910, 00043355, MU0099988, MU980106)	find it here	3	Details
17	MU980121 00043357	Bolt	100-160	(00000914, 00043357, MU0099985, MU980121)	find it here	3	Details
18	MU0099970 00043600	Bolt	100-160	(00001345, 00043600, MU0099970)	find it here	6	Details
19	00000904 00000904	Bolt	100-160	(00000904, MU980214)	find it here	2	Details
20	MU980205 00043602	Bolt	100-160	(00043602, MU0099971, MU980205)	find it here	5	Details
21	00043655 00043655	Bolt	100-160	(00043655, 2404007011, MU981002)	find it here	1	Details
22	MU0099999 00043249	Washer	100-160	(00043249, MU0099999, MU980102)	find it here	5	Details
23	MU0099951 00043286	Washer	100-160	(00043286, MU0099951, MU980103)	find it here	7	Details
24	MU980202 00043232	Washer	100-160	(00001223, 00043232, MU980202)	find it here	6	Details
25	MUNSKL10 00043766	Washer	100-160	(00012350, 00043766, MUNSKL10)	find it here	8	Details
26	MU0099961 00043191	Nut	100-160	(00043191, MU0099961, MU7T1018, MU980101)	find it here	6	Details
27	MU0099960 00043177	Nut	100-160	(00043177, MU0099960)	find it here	3	Details
28	MU980400 00043159	Nut	100-160	(00043159, MU0099964, MU980400)	find it here	1	Details

- Artikel ist vorrätig
- Artikel beim Lieferanten bereits bestellt
- Besorgungsware, besondere Bedingungen beachten
- Artikel nicht vorrätig, i.d.R. kurzfristig lieferbar
