Exploded view 10: Right gear box on the MA 20 (P_C_ET_24_WEL_FR-HY)

Go back

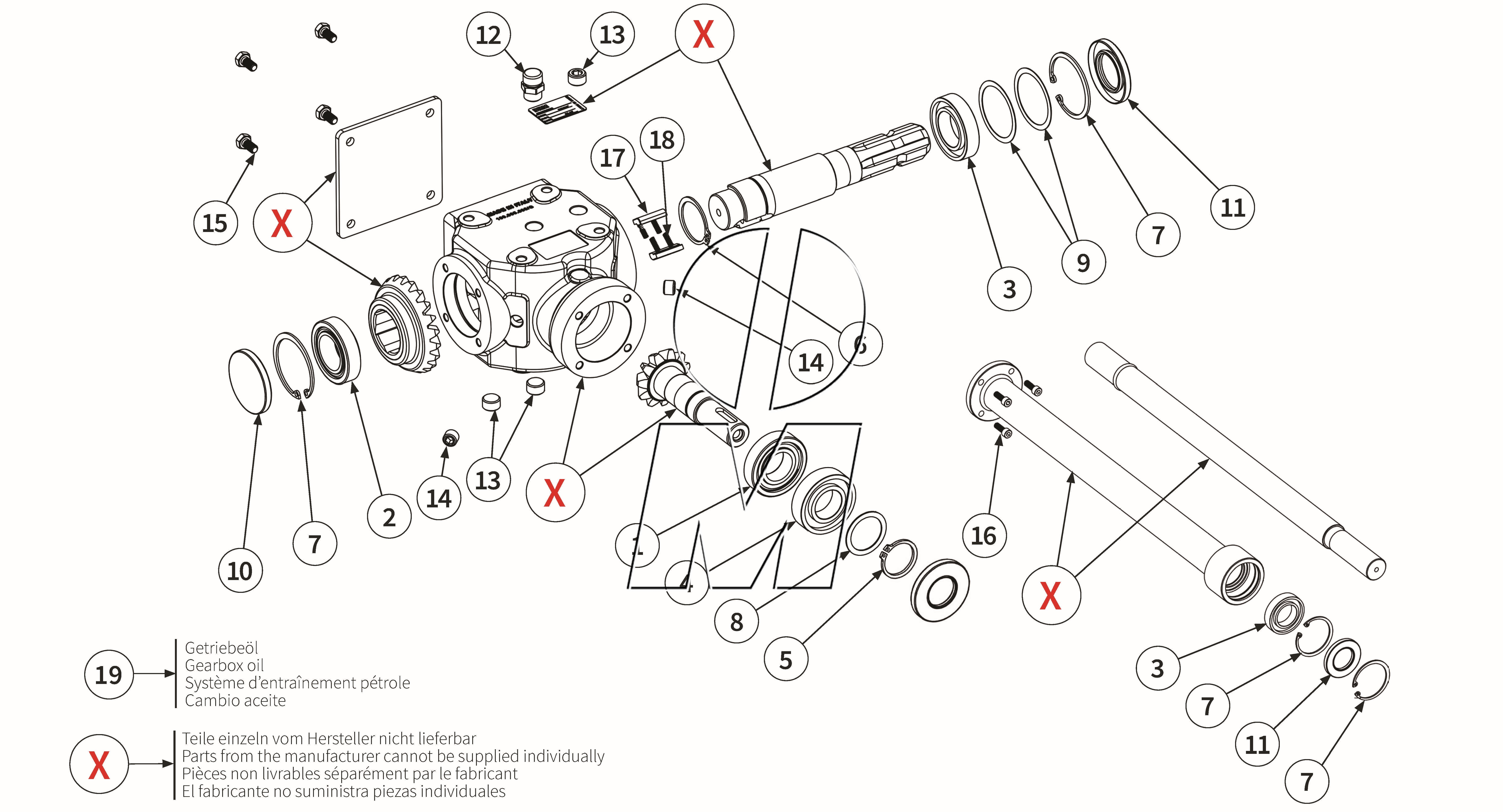

Exploded view 10: Right gear box on the MA 20
Model: MU-C FR-HY 100 - 160
As of series: 2024
Edition: 2026-02
Order code: P_C_ET_24_WEL_FR-HY

Position	Order code Article no.	Artikel	Working width	notice	ID No.	GPSR-Info	Quantity
1	30206-J2/Q 40042090	Bearing	100-160		(30206 J2 Q)	find it here	1	Details
2	MUR20217 40009876	Bearing	100-160		(MUR20217)	find it here	1	Details
3	MUR20216 90202160	Bearing	100-140		(MUR20216)	find it here	2	Details
3	MUR20216 90202160	Bearing	160		(MUR20216)	find it here	1	Details
4	MU200009 90200009	Bearing	100-160		(MU200009)	find it here	1	Details
5	MU280031 90280031	Circlip	100-160		(MU280031)	find it here	1	Details
6	MU623013 00043738	Circlip	100-160		(00043738, MU623013)	find it here	1	Details
7	MU200014 00043758	Circlip	100-160		(00043758, 6030354, MU200014, MU7T1025)	find it here	3	Details
9	MUR20213 90202130	Spacer	100-160		(MUR20213)	find it here	2	Details
10	MUR20205 90202050	Cap	100-160		(MUR20205)	find it here	1	Details
11	MUTR4013 00043802	Shaft sealing ring	100-160		(00043802, MUTR4013)	find it here	2	Details
12	MU623018 00043837	Gearbox breather	100-160		(00001981, 00043837, 2403005337, 2403046005, MU623018)	find it here	1	Details
13	MU623017 90623017	Drain check screw	100-160		(MU310018, MU623017, MUR20210)	find it here	3	Details
14	MU310018 90310018	Drain check screw	100-160		(MU310018)	find it here	2	Details
15	MU982811 00043707	Bolt	100-160		(00043707, 99000000828, MU980105, MU982811)	find it here	4	Details
16	MU980110 00043462	Bolt	100-160		(00043462, MU980110)	find it here	4	Details
17	MU623008-BRM 90623008	Locking pawl	100-160		(MU623008, MU623008BRM)	find it here	2	Details
18	MU623021-BRM 90623021	Spring	100-160		(MU623021, MU623021BRM)	find it here	4	Details
19	MUSAE70W90VS 40008825	Gearbox oil	100-160	Required quantity	(MUSAE70W90VS)	find it here	1	Details
