Exploded view 11: Hydraulic drive (P_C_ET_24_WEL_FR-HY)

Go back

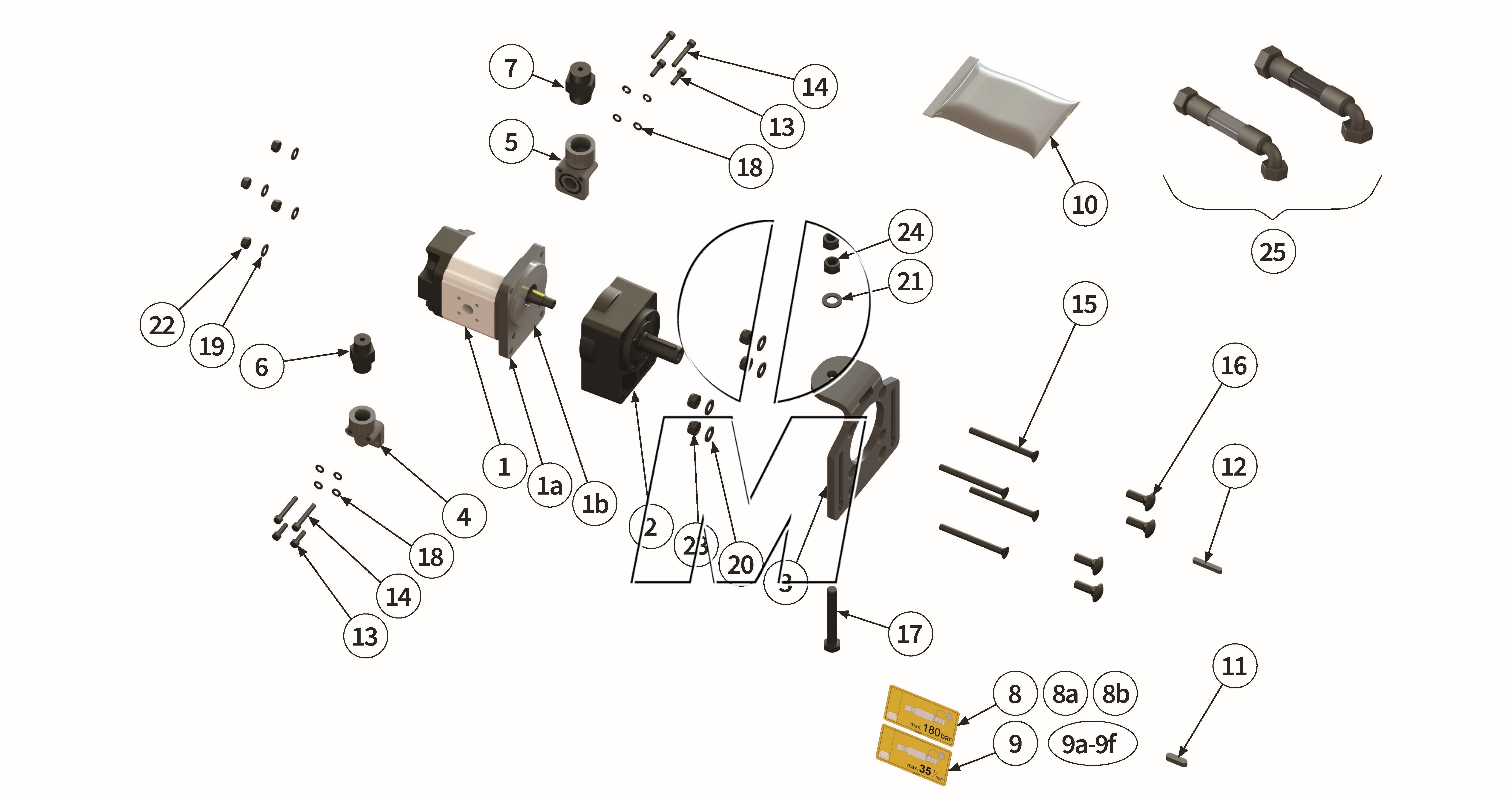

Exploded view 11: Hydraulic drive
Model: MU-C FR-HY 100 - 160
As of series: 2024
Edition: 2026-02
Order code: P_C_ET_24_WEL_FR-HY

Position	Order code Article no.	Artikel	Working width	ID No.	GPSR-Info	Quantity
1	00015679 00015679	Hydraulic motor 17 ccm/U	120-160	(00015679, MU17ccm)	find it here	1	Details
1-a	00015680 00015680	Hydraulic motor 20 ccm/U	120-160	(00015680, MU20ccm)	find it here	1	Details
1-b	00017440 00017440	Hydraulic motor 26 ccm/U	120-160	(00017440, MU26ccm)	find it here	1	Details
2	00015678 00015678	Attachment bearing	120-160	(00015678)	find it here	1	Details
3	00014772 00014772	Clamping flange	120-160	(00014772)	find it here	1	Details
4	00015682 00015682	Flange supply	120-160	(00015682, 15682, ZOTRIA3512M)	find it here	1	Details
5	00015684 00015684	Flange return	120-160	(00015684, 15684, ZOTRIA4034M)	find it here	1	Details
6	00015668 00015668	Screwed connection	120-160	(00015668)	find it here	1	Details
7	00015669 00015669	Screwed connection	120-160	(00015669)	find it here	1	Details
10	MUDM0004 00044203	Sealpacket	120-160	(00015785, 00044203, MUDM0004)	find it here	1	Details
11	00001085 00001085	Parallel key	120-160	(00001085, MU0099953, MU0510091)	find it here	1	Details
12	00008108 00008108	Parallel key	120-160	(00008108)	find it here	1	Details
13	MU981036 00043448	Bolt	120-160	(00043448, MU981036)	find it here	4	Details
15	00008123 00008123	Bolt	120-160	(00008123)	find it here	4	Details
16	00000904 00000904	Bolt	120-160	(00000904, MU980214)	find it here	4	Details
17	MU980316 00043632	Bolt	120-160	(00043632, MU980316)	find it here	1	Details
18	MU981052 00043230	Washer	120-160	(00043230, MU981052)	find it here	8	Details
19	MU0099999 00043249	Washer	120-160	(00043249, MU0099999, MU980102)	find it here	4	Details
20	MU980202 00043232	Washer	120-160	(00001223, 00043232, MU980202)	find it here	4	Details
21	MU980302 00043233	Washer	120-160	(00043233, MU0099997, MU980302)	find it here	1	Details
22	MU0099961 00043191	Nut	120-160	(00043191, MU0099961, MU7T1018, MU980101)	find it here	4	Details
23	MU0099960 00043177	Nut	120-160	(00043177, MU0099960)	find it here	4	Details
24	MU980300 00043158	Nut	120-160	(00043158, MU0099932, MU980300)	find it here	2	Details
