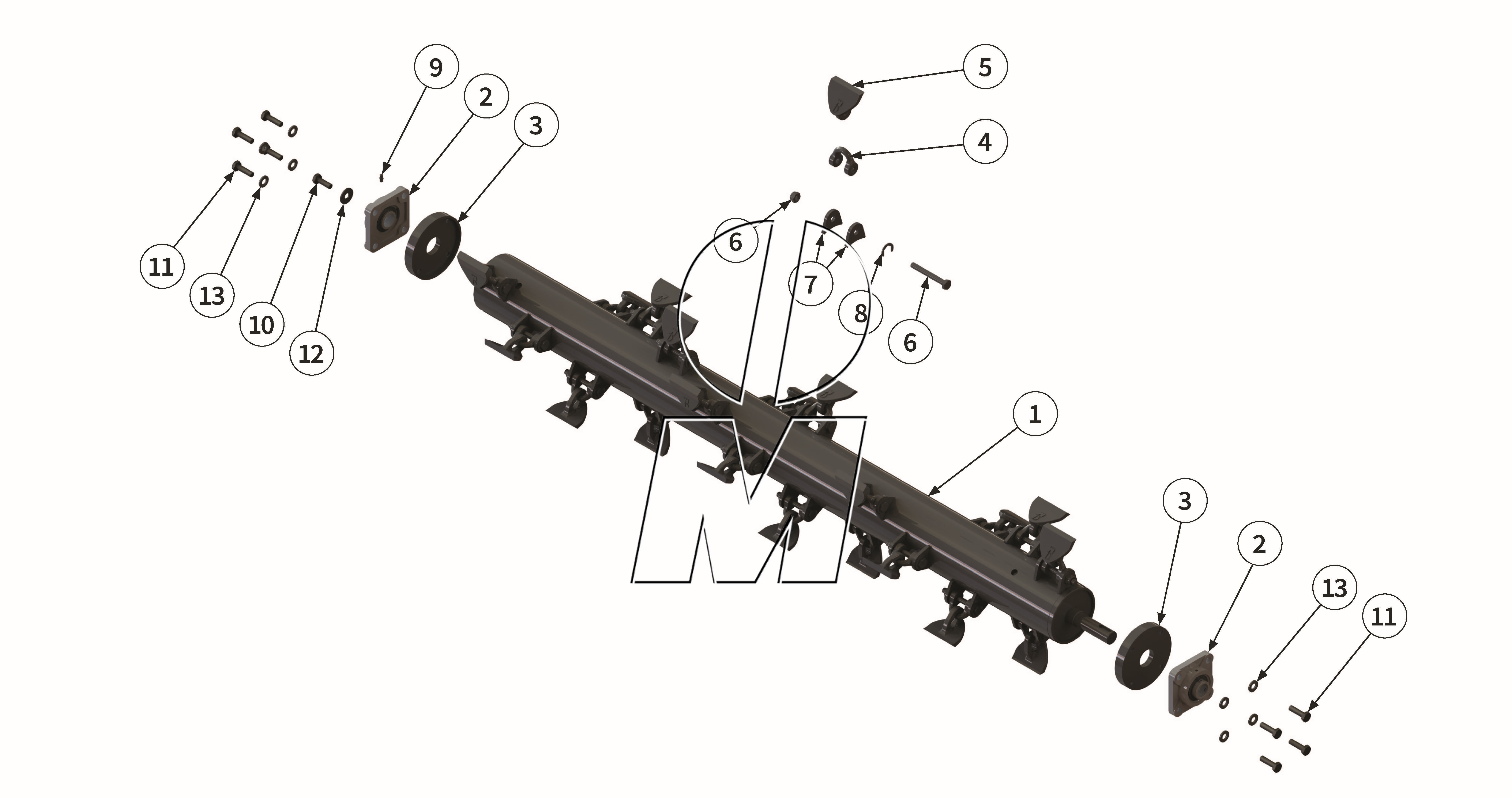

Exploded view 16: Shackle rotor (P_C_ET_24_WEL_FR-HY)

Go back

Exploded view 16: Shackle rotor
Model: MU-C FR-HY 100 - 160
As of series: 2024
Edition: 2026-02
Order code: P_C_ET_24_WEL_FR-HY

Position	Order code Article no.	Artikel	Working width	ID No.	GPSR-Info	Quantity
1	MU5040021 00040184	Rotor with tools	100	(00040184)	find it here	1	Details
1	MU5040031 00010874	Rotor with tools	120	(00001153, 00010874, MU5040031)	find it here	1	Details
1	MU5040041 00010912	Rotor with tools	140	(00001382, 00010912, MU5040041)	find it here	1	Details
1	00010955 00010955	Rotor with tools	160	(00010954, 00010955, MU5040051)	find it here	1	Details
2	MU0501041 00044684	Housing bearing	100-160	(00001154, 00044684, MU0501041)	find it here	2	Details
3	MU5102211 00001163	Anti-wrapping device	100-160	(00001163, MU0510221, MU5102211)	find it here	2	Details
4	MU0801031 00001464	Shackle	100	(00001464, MU0801031)	find it here	16	Details
4	MU0801031 00001464	Shackle	120	(00001464, MU0801031)	find it here	20	Details
4	MU0801031 00001464	Shackle	140	(00001464, MU0801031)	find it here	24	Details
4	MU0801031 00001464	Shackle	160	(00001464, MU0801031)	find it here	28	Details
5	MU50 00034648	Shackle flail	100	(00034648, MU50)	find it here	16	Details
5	MU50 00034648	Shackle flail	120	(00034648, MU50)	find it here	20	Details
5	MU50 00034648	Shackle flail	140	(00034648, MU50)	find it here	24	Details
5	MU50 00034648	Shackle flail	160	(00034648, MU50)	find it here	28	Details
6	MU0801041 00008173	Bolt with nut	100	(00001160, 00008173, MU0801041)	find it here	16	Details
6	MU0801041 00008173	Bolt with nut	120	(00001160, 00008173, MU0801041)	find it here	20	Details
6	MU0801041 00008173	Bolt with nut	140	(00001160, 00008173, MU0801041)	find it here	24	Details
6	MU0801041 00008173	Bolt with nut	160	(00001160, 00008173, MU0801041)	find it here	28	Details
7	MU0504101 00001152	Tool holders	100	(00001152, MU0504101)	find it here	32	Details
7	MU0504101 00001152	Tool holders	120	(00001152, MU0504101)	find it here	40	Details
7	MU0504101 00001152	Tool holders	140	(00001152, MU0504101)	find it here	48	Details
7	MU0504101 00001152	Tool holders	160	(00001152, MU0504101)	find it here	56	Details
9	00043300 00043300	Lubricating nipple	100-160	(00043300)	find it here	1	Details
10	MU980205 00043602	Bolt	100-160	(00043602, MU0099971, MU980205)	find it here	1	Details
11	MU980222 00043603	Bolt	100-160	(00001346, 00043603, MU0099903, MU980222)	find it here	8	Details
12	MU0099950 00043281	Washer	100-160	(00043281, MU0099950)	find it here	1	Details
13	MUNSKL10 00043766	Washer	100-160	(00012350, 00043766, MUNSKL10)	find it here	8	Details
