Exploded view

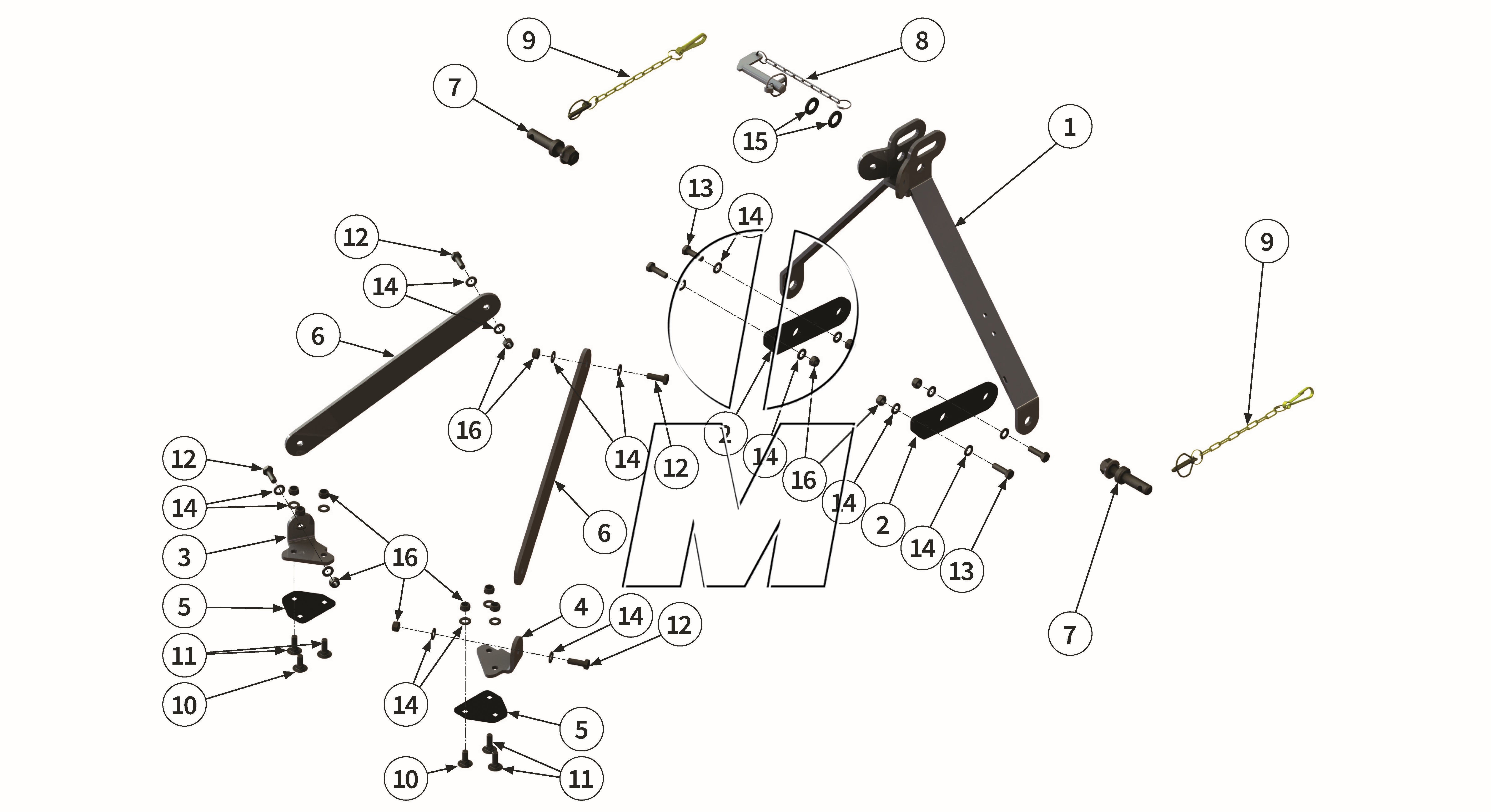

Exploded view 18: 3-point trestle (P_C_ET_24_WEL_FR-HY)
Exploded view 18: 3-point trestle
Model: MU-C FR-HY 100 - 160
As of series: 2024
Edition: 2026-02
Order code: P_C_ET_24_WEL_FR-HY
| Position | Order code Article no. |
Artikel | Working width | ID No. | GPSR-Info | Quantity | ||
|---|---|---|---|---|---|---|---|---|
| 2 |
MU0503061 00003546 |
Lower link plate | 100-160 | (00003546, MU0503061) | find it here | 2 | Details | |
| 3 |
MU0503032 00003541 |
Left holder | 100-160 | (00003541, MU0503032) | find it here | 1 | Details | |
| 4 |
MU0503031 00003542 |
Right holder | 100-160 | (00003542, MU0503031) | find it here | 1 | Details | |
| 5 |
00004053 00004053 |
Spacer plate | 100-160 | (00004053) | find it here | 2 | Details | |
| 7 |
MU0501996 00010870 |
Pin | 100-160 | (00010870, MU0501996) | find it here | 2 | Details | |
| 8 |
00005545 00005545 |
Pin with chain | 100-160 | (00001835, 00005545, MU0501997, MU980942) | find it here | 1 | Details | |
| 9 |
MU2500105 00044559 |
Locking element | 100-160 | (00044559, 2500105, MU2500105) | find it here | 2 | Details | |
| 10 |
MU980310 00043332 |
Bolt | 100-160 | (00002189, 00043332, MU0099930, MU980310) | find it here | 2 | Details | |
| 11 |
MU980320 00043333 |
Bolt | 100-160 | (00043333, MU0099984, MU980320) | find it here | 4 | Details | |
| 12 |
MU980311 00043621 |
Bolt | 100-160 | (00043621, MU0099931, MU980311) | find it here | 4 | Details | |
| 13 |
MU980328 00043622 |
Bolt | 100-160 | (00043622, MU980321, MU980328) | find it here | 4 | Details | |
| 14 |
MU980302 00043233 |
Washer | 100-160 | (00043233, MU0099997, MU980302) | find it here | 22 | Details | |
| 15 |
MU980505 00043237 |
Washer | 100-160 | (00043237, MU980505) | find it here | 2 | Details | |
| 16 |
MU980301 00043178 |
Nut | 100-160 | (00043178, MU0099957, MU980301) | find it here | 14 | Details |
