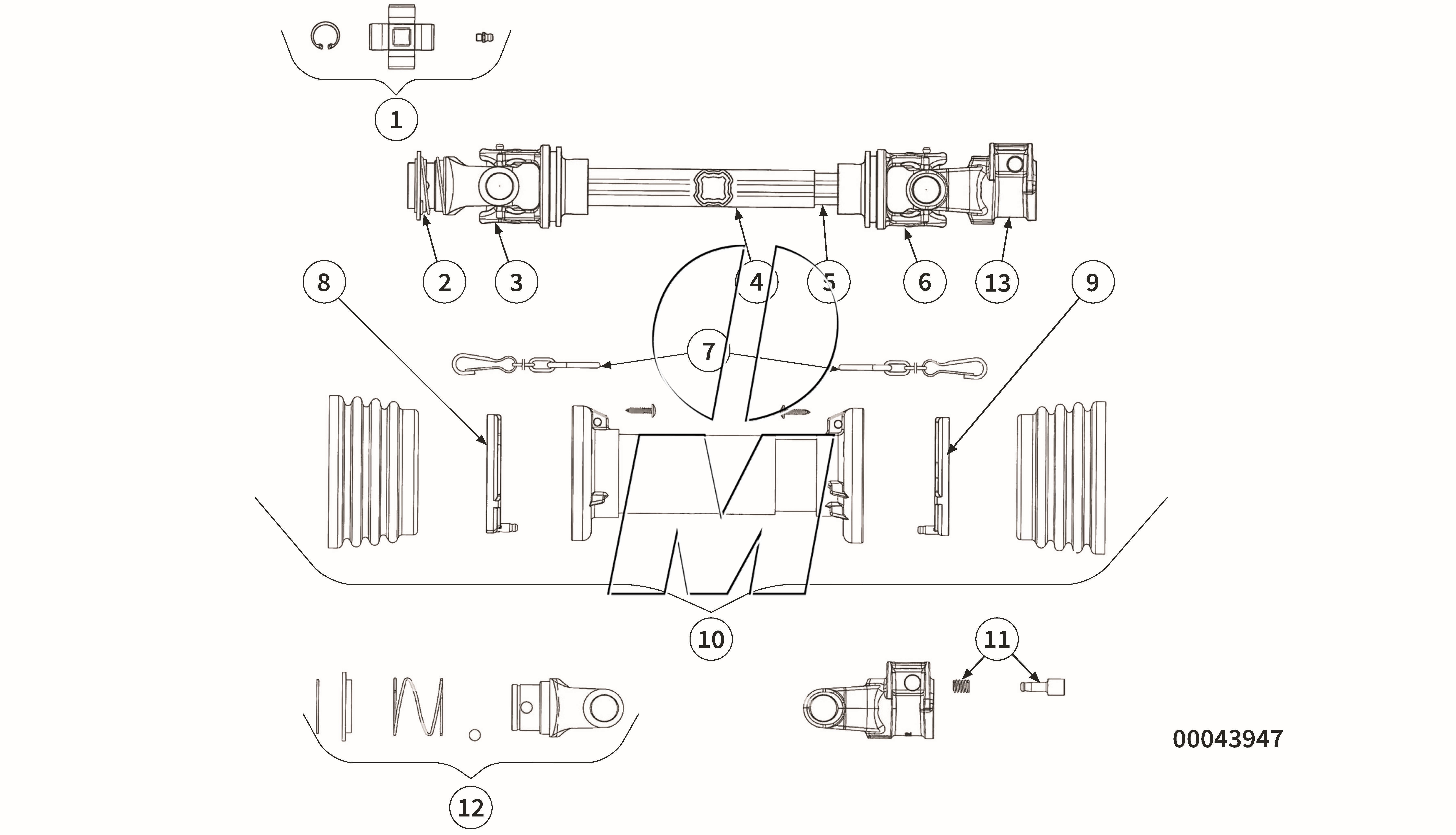

Exploded view 22: PTO shaft GE2103 SFT (P_C_ET_24_WEL_FR-HY)

Go back

Exploded view 22: PTO shaft GE2103 SFT
Model: MU-C FR-HY 100 - 160
As of series: 2024
Edition: 2026-02
Order code: P_C_ET_24_WEL_FR-HY

Position	Order code Article no.	Artikel	Working width	ID No.	GPSR-Info	Quantity
1	4120B0012R50 40024802	Cross fitting	100-160	(4120B0012R50, 4120B011)	find it here	2	Details
2	5050B0951 40028843	Outer Yoke	100-160	(5050B0951)	find it here	1	Details
3	204S16853 40042599	Inner yoke for outer tube	100-160	(204S16853)	find it here	1	Details
4	122321000 40010444	Outer tube section	100-160	(122321000R06)	find it here	1	Details
5	122161000 40051489	Inner tube section	100-160	(122161000R06)	find it here	1	Details
6	204S16854 40016191	Inner yoke for inner tube	100-160	(204S16854)	find it here	1	Details
7	252000050R02 40042477	Holding chain	100-160	(252000050R02, 252000001, 252000005R02)	find it here	2	Details
8	2550A0001R02 40017108	Raceway	100-160	(2550A0001R02)	find it here	1	Details
9	2550A0002R02 40027722	Raceway	100-160	(2550A0002R02)	find it here	1	Details
10	5CS1086FXSS 40042920	PTO shaft guard	100-160	(5CS1086CESS, 5CS1086FXSS)	find it here	1	Details
11	403000021R10 40055042	Push pin	100-160	(403000021R10, 403000020R10)	find it here	1	Details
12	435000901R 40034797	Pull Lock	100-160	(435000901R)	find it here	1	Details
13	5070B0355 40033003	Outer Yoke	100-160	(5070B0355, 507010351, 507S10352, 507010351, 1 05 07)	find it here	1	Details

- Artikel ist vorrätig
- Artikel beim Lieferanten bereits bestellt
- Besorgungsware, besondere Bedingungen beachten
- Artikel nicht vorrätig, i.d.R. kurzfristig lieferbar
