Exploded view 24: Hydraulic drive IBEX (P_C_ET_24_WEL_FR-HY)

Go back

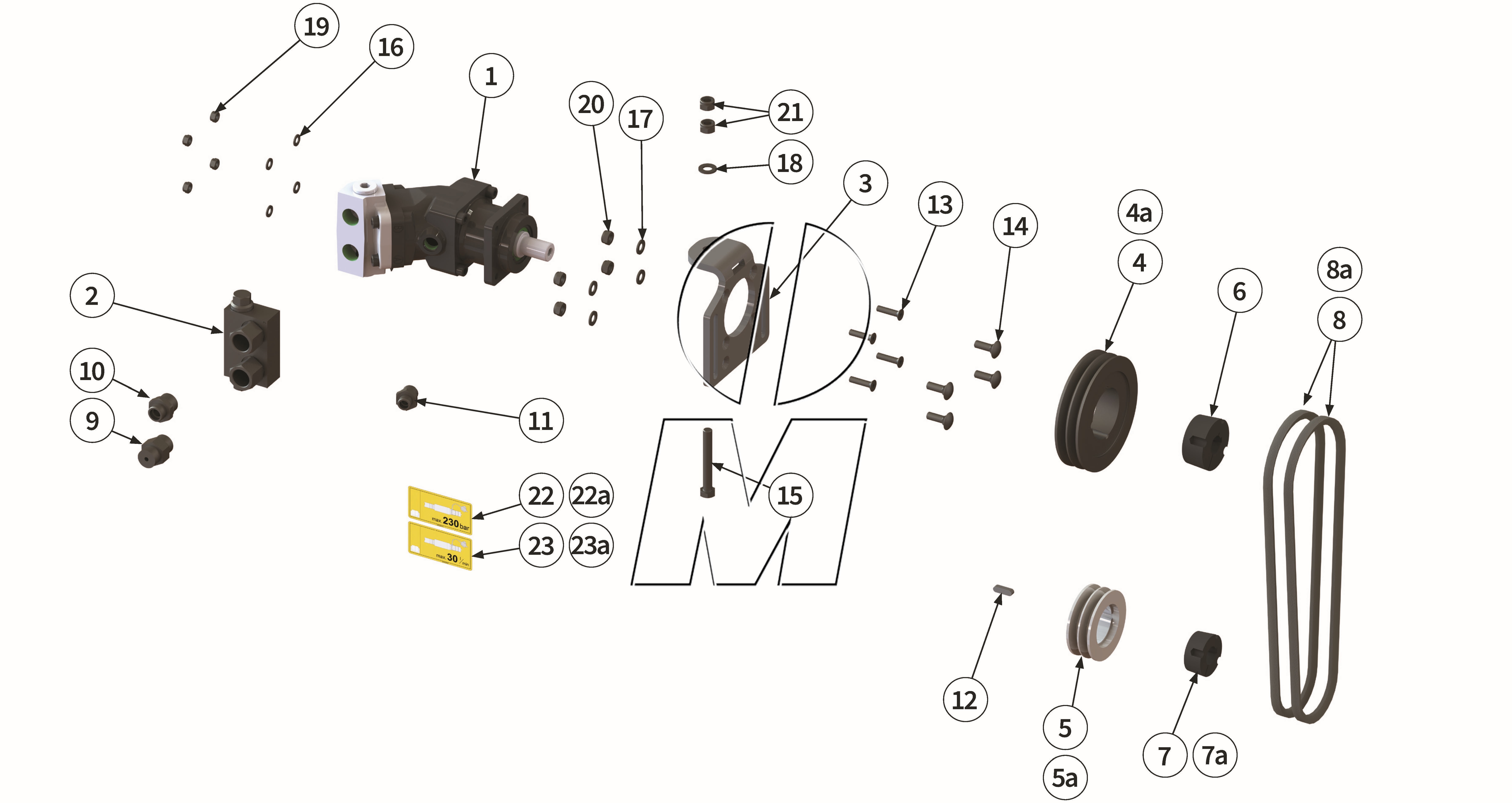

Exploded view 24: Hydraulic drive IBEX
Model: MU-C FR-HY 100 - 160
As of series: 2024
Edition: 2026-02
Order code: P_C_ET_24_WEL_FR-HY

Position	Order code Article no.	Artikel	Working width	ID No.	GPSR-Info	Quantity
1	00039614 00039614	Hydraulic motor 17 ccm/U	140-160	(00039614)	find it here	1	Details
2	00039612 00039612	Hydraulic valve	140-160	(00039612)	find it here	1	Details
3	00014772 00014772	Clamping flange	140-160	(00014772)	find it here	1	Details
4	00034118 00034118	Belt pulley 30 l/min	140-160	(00034118)	find it here	1	Details
4-a	MU0501111 00044003	Belt pulley	140-160	(00003538, 00044003, MU0501111)	find it here	1	Details
5-a	00001087 00001087	Belt pulley	140-160	(00001087, 00002360, MU0501101)	find it here	1	Details
6	00011451 00011451	Clamping bush	140-160	(00011451, MU5019980)	find it here	1	Details
7	MU981805 00044042	Clamping bush	140-160	(00044042, MU981805)	find it here	1	Details
7-a	00001093 00001093	Clamping bush	140-160	(00001093, 2403012014)	find it here	1	Details
8	MU0501995 00010864	V-belt	140-160	(00010864, MU0501995)	find it here	2	Details
9	00015669 00015669	Screwed connection	140-160	(00015669)	find it here	1	Details
11	00044462 00044462	Screwed connection	140-160	(00044462)	find it here	1	Details
12	00001085 00001085	Parallel key	140-160	(00001085, MU0099953, MU0510091)	find it here	1	Details
13	MU981170 00043404	Bolt	140-160	(00043404, MU981170)	find it here	4	Details
14	00000904 00000904	Bolt	140-160	(00000904, MU980214)	find it here	4	Details
15	MU980316 00043632	Bolt	140-160	(00043632, MU980316)	find it here	1	Details
16	MU0099999 00043249	Washer	140-160	(00043249, MU0099999, MU980102)	find it here	4	Details
17	MU980202 00043232	Washer	140-160	(00001223, 00043232, MU980202)	find it here	4	Details
18	MU980302 00043233	Washer	140-160	(00043233, MU0099997, MU980302)	find it here	1	Details
19	MU0099961 00043191	Nut	140-160	(00043191, MU0099961, MU7T1018, MU980101)	find it here	4	Details
20	MU0099960 00043177	Nut	140-160	(00043177, MU0099960)	find it here	4	Details
21	MU980300 00043158	Nut	140-160	(00043158, MU0099932, MU980300)	find it here	2	Details
23-a	00044133 00044133	Label max 350 bar	140-160	(00044133)	find it here	1	Details

- Artikel ist vorrätig
- Artikel beim Lieferanten bereits bestellt
- Besorgungsware, besondere Bedingungen beachten
- Artikel nicht vorrätig, i.d.R. kurzfristig lieferbar
