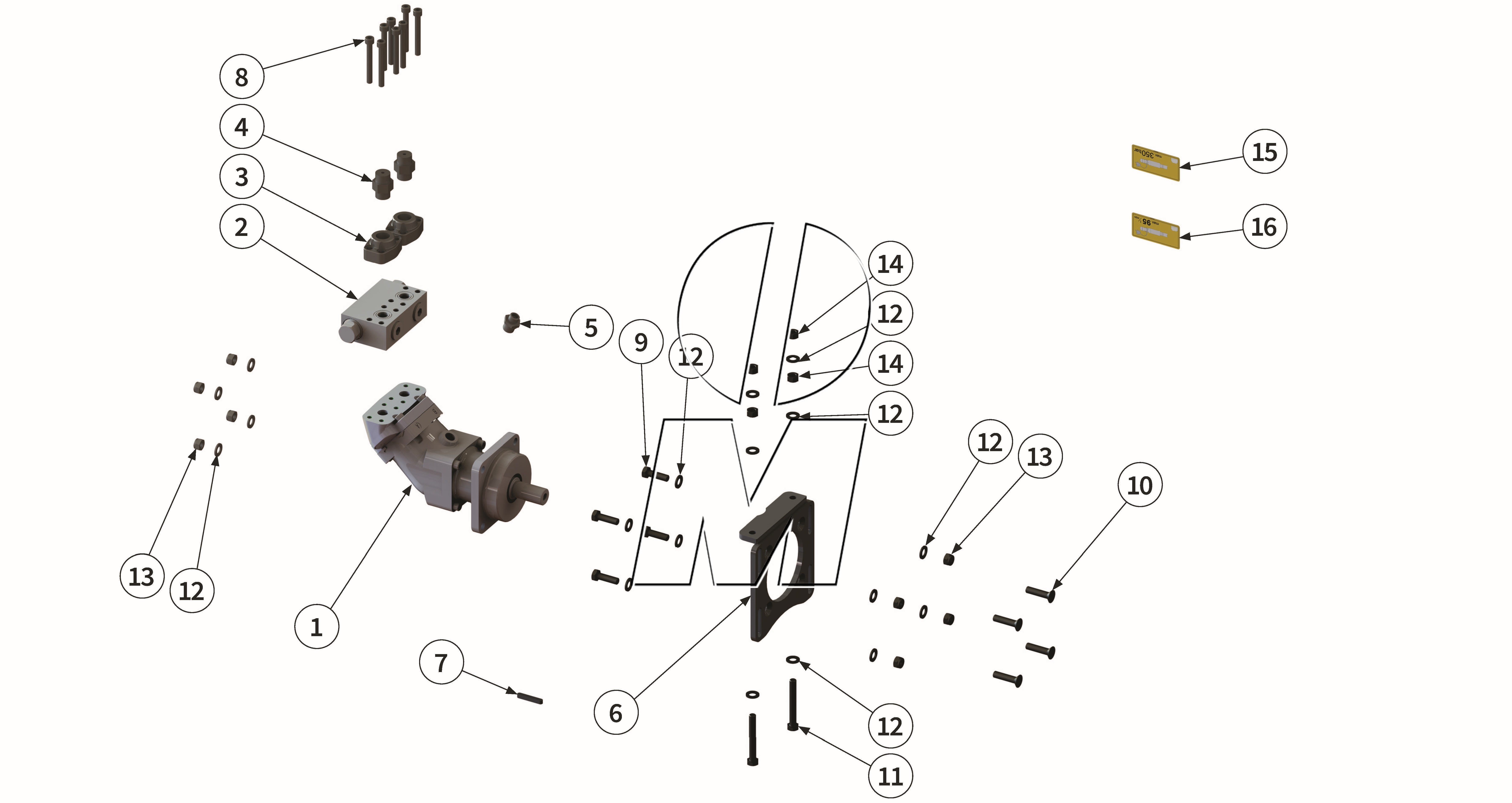

Exploded view 10: Hydraulic drive (P_H_ET_25_WEL)
Product information "Exploded view 10: Hydraulic drive (P_H_ET_25_WEL)"
Exploded view 10: Hydraulic drive
Model: MU-H Vario 120 - 220
As of series: 2025
Edition: 2025-09
Order code: P_H_ET_25_WEL
Model: MU-H Vario 120 - 220
As of series: 2025
Edition: 2025-09
Order code: P_H_ET_25_WEL
| Model series: | MU-H |
|---|---|
| Original: | Yes |
| PDF type: | Spare parts list |
| Order code / article | MU-H Vario 120 - 220 / 10 96172510 |
| Short name | Exploded view 10: Hydraulic drive (P_H_ET_25_WEL) |
| Can be shipped with | Parcel service -90 kg (individual weight -30 kg) / -1.7 m |
| Group | VN |
| Info PDF | Download |
Product number:
96172510
